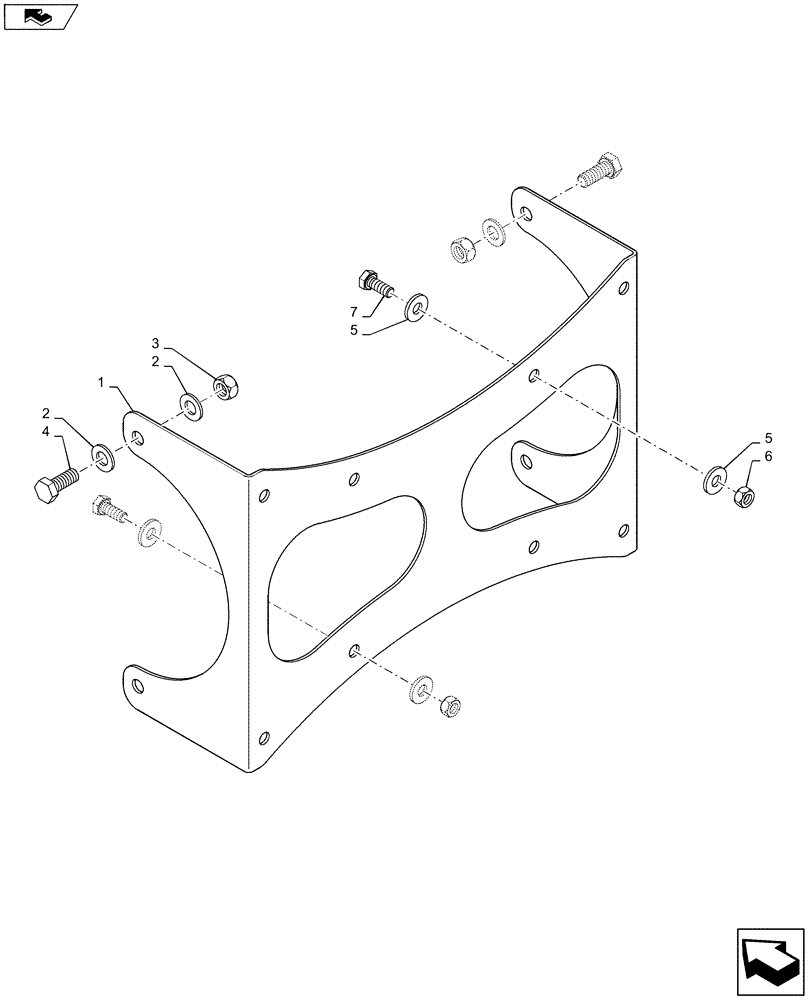

Запчасти Case IH PATRIOT 2250 (55.635.AN[01]) - AIM COMMAND, MODULE MOUNTING (55) - ELECTRICAL SYSTEMS

1

84398129

MOUNT

Aim Command Module

1шт.

2

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

DOR

8шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
