(55.635.AM[22]) - AIM COMMAND PRO, 9 NOZZLE, MODULE, HARNESS, COMBINATION

Запчасти Case IH PATRIOT 2250 (55.635.AM[22]) - AIM COMMAND PRO, 9 NOZZLE, MODULE, HARNESS, COMBINATION (55) - ELECTRICAL SYSTEMS

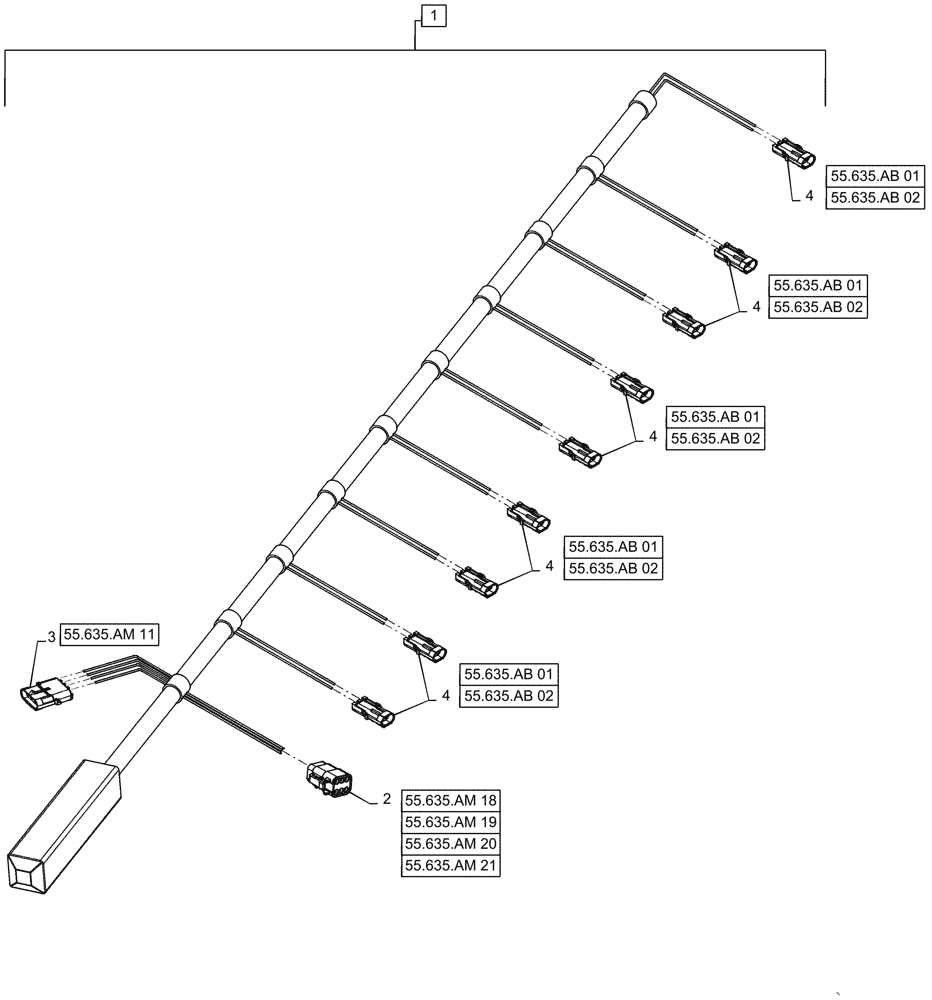

Схема запчастей Case IH PATRIOT 2250 - (55.635.AM[22]) - AIM COMMAND PRO, 9 NOZZLE, MODULE, HARNESS, COMBINATION (55) - ELECTRICAL SYSTEMS
55.635.am 11
2
3
1
4
4
4
4
4
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.am 21
55.635.am 18
55.635.am 19
55.635.am 20
55.635.ab 02
55.635.ab 02
55.635.ab 02
55.635.ab 02
55.635.ab 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47552079

WIRE HARNESS

Assy, Module, VCM, 9 Nozzle x 20", Incl 2 - 4

1шт.

2

84074643

CONTACT HOUSING,Female, 6 Pole

Black

1шт.

3

87692802

ELEC CONNECTOR

4 Terminal, Black

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Aim Command Solenoid

9шт.

Выбрано товаров: 4
