(55.635.AM[21]) - AIM COMMAND PRO, 35, EXTENSION HARNESS WITH FUSE

Запчасти Case IH PATRIOT 2250 (55.635.AM[21]) - AIM COMMAND PRO, 35, EXTENSION HARNESS WITH FUSE (55) - ELECTRICAL SYSTEMS

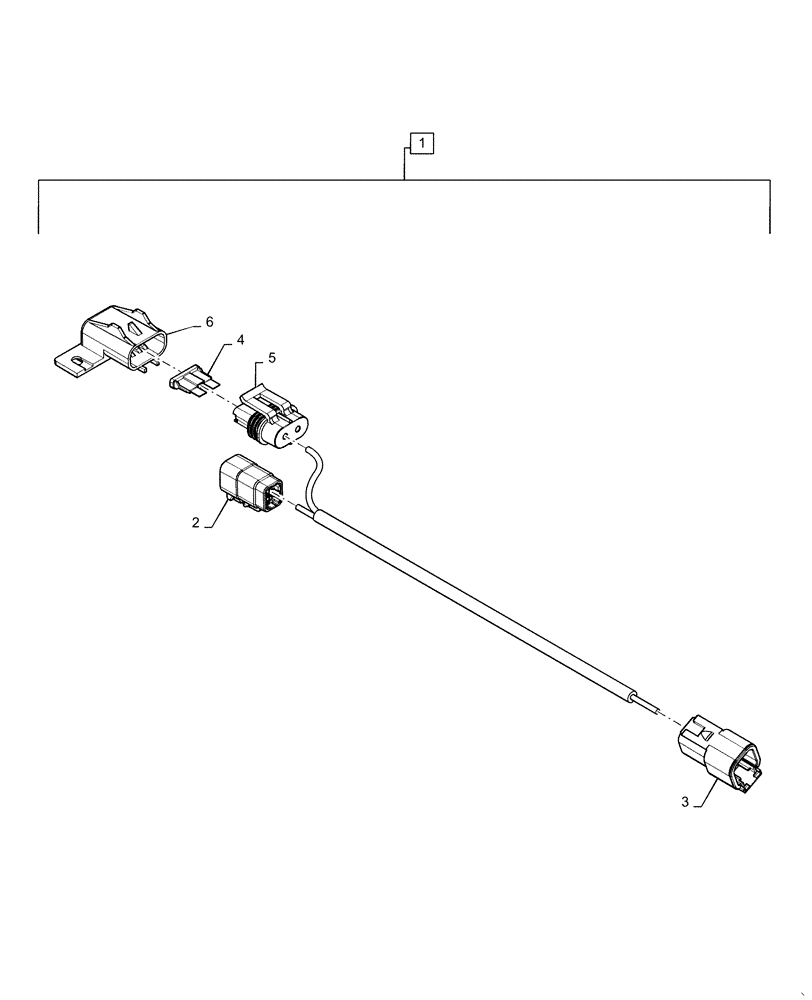

Схема запчастей Case IH PATRIOT 2250 - (55.635.AM[21]) - AIM COMMAND PRO, 35, EXTENSION HARNESS WITH FUSE (55) - ELECTRICAL SYSTEMS
2
6
4
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47552092

EXTENSION

35', 6 Connector Extension, Aim Command Pro, Incl 2 - 6

1шт.

2

87700107

ELEC CONNECTOR

Female, 6 Terminal, Gray

1шт.

3

87700106

ELEC CONNECTOR

Male, 6 Terminal, Gray

1шт.

4

87717080

FUSE,15A, Blue

15A, Type ATO/ATC

1шт.

5

87693710

ELEC CONNECTOR,Female 2 Cavities

Fuse Holder Body with Seals

1шт.

6

87688863

CAP

Fuse Holder

1шт.
