(55.635.AM[19]) - AIM COMMAND PRO, 20, EXTENSION, HARNESS WITH FUSE

Запчасти Case IH PATRIOT 2250 (55.635.AM[19]) - AIM COMMAND PRO, 20, EXTENSION, HARNESS WITH FUSE (55) - ELECTRICAL SYSTEMS

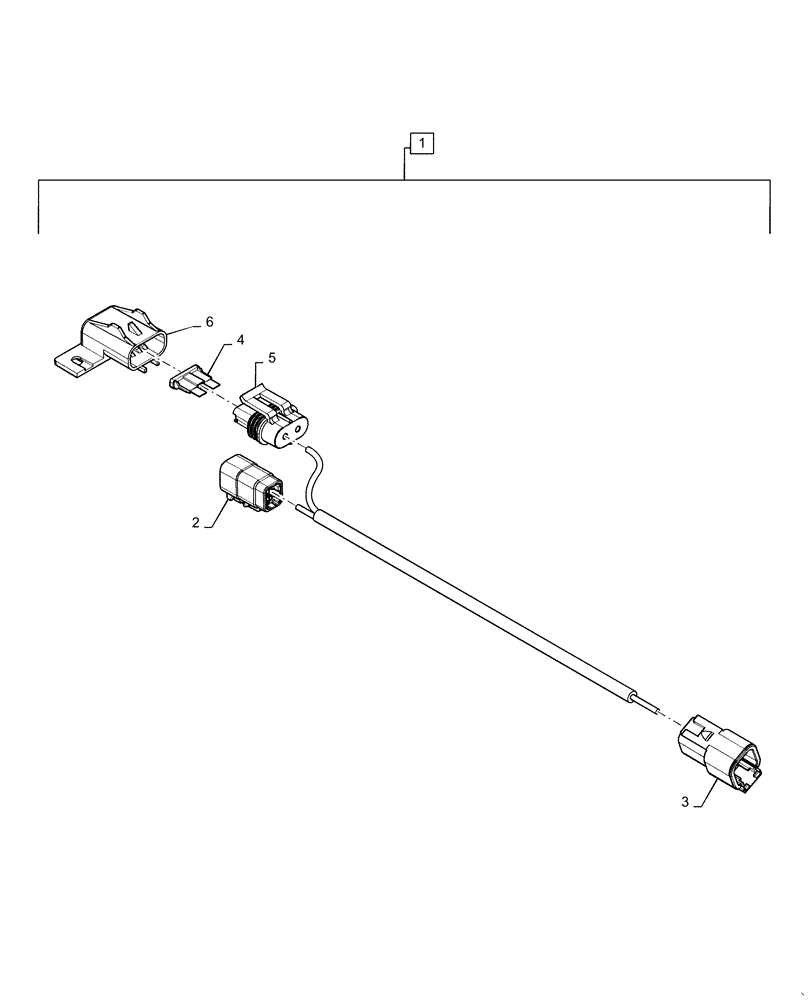

Схема запчастей Case IH PATRIOT 2250 - (55.635.AM[19]) - AIM COMMAND PRO, 20, EXTENSION, HARNESS WITH FUSE (55) - ELECTRICAL SYSTEMS
3
6
5
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47552089

WIRE HARNESS

Assy, 20', 6 Connector Extension, Aim Command Pro, Incl 2 - 6

1шт.

2

87700107

ELEC CONNECTOR

Female, 6 Terminal, Gray

1шт.

3

87700106

ELEC CONNECTOR

Male, 6 Terminal, Gray

1шт.

4

87717080

FUSE,15A, Blue

15A, Type ATO/ATC

1шт.

5

87693710

ELEC CONNECTOR,Female 2 Cavities

Fuse Holder Body with Seals

1шт.

6

87688863

CAP

Fuse Holder

1шт.

Выбрано товаров: 6
