(55.635.AM[17]) - AIM COMMAND PRO, 5, NOZZLE HARNESS, EXTENSION

Запчасти Case IH PATRIOT 2250 (55.635.AM[17]) - AIM COMMAND PRO, 5, NOZZLE HARNESS, EXTENSION (55) - ELECTRICAL SYSTEMS

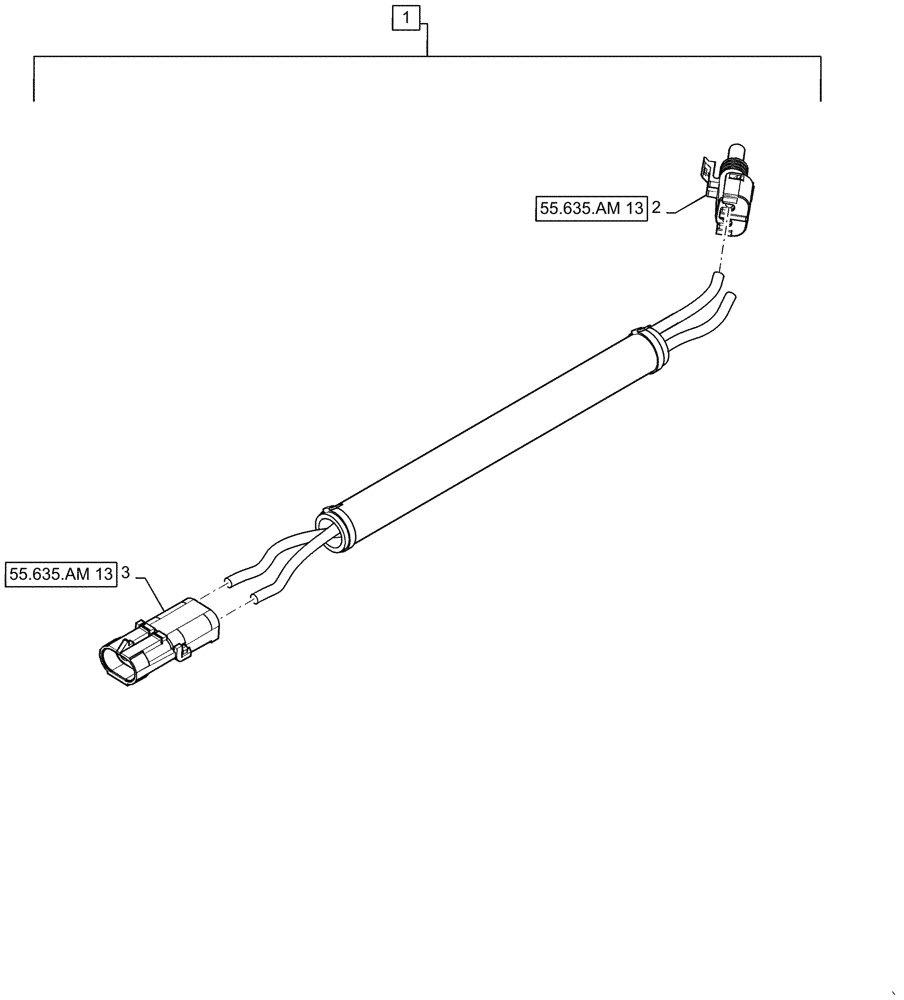

Схема запчастей Case IH PATRIOT 2250 - (55.635.AM[17]) - AIM COMMAND PRO, 5, NOZZLE HARNESS, EXTENSION (55) - ELECTRICAL SYSTEMS
55.635.am 13
3
1
2
55.635.am 13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47552085

WIRE HARNESS

Assy, 5' Nozzle Harness, Aim Command Pro, Incl 2, 3

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

Harness End, Aim Command Pro

1шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Solenoid End, Aim Command Pro

1шт.
