(55.635.AM[16]) - AIM COMMAND PRO, Y ADAPTER, 6 CONDUCTOR, CAN BUS

Запчасти Case IH PATRIOT 2250 (55.635.AM[16]) - AIM COMMAND PRO, Y ADAPTER, 6 CONDUCTOR, CAN BUS (55) - ELECTRICAL SYSTEMS

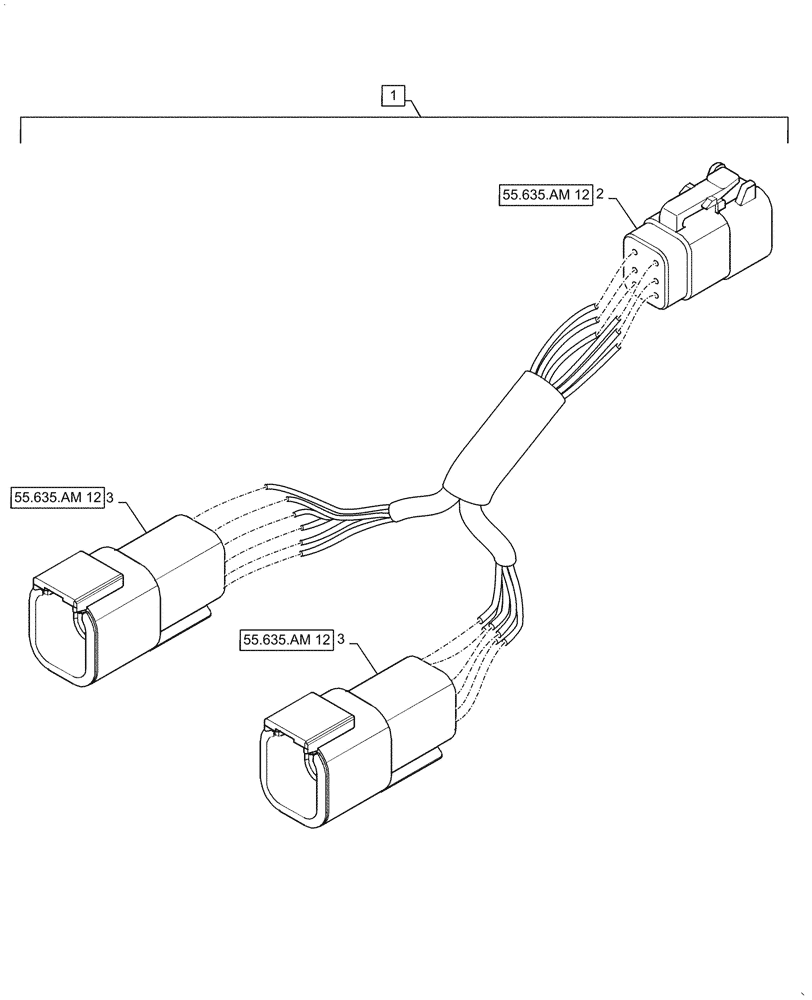

Схема запчастей Case IH PATRIOT 2250 - (55.635.AM[16]) - AIM COMMAND PRO, Y ADAPTER, 6 CONDUCTOR, CAN BUS (55) - ELECTRICAL SYSTEMS
55.635.am 12
2
1
3
3
55.635.am 12
55.635.am 12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47584831

WIRE HARNESS

Assy, Y-Adapter, 6 Connector, Can-Bus, Incl 2, 3

1шт.

2

87700107

ELEC CONNECTOR

Female, 6 Terminal, Grey

1шт.

3

87700106

ELEC CONNECTOR

Male, 6 Terminal, Grey

2шт.
