(55.635.AM[13]) - AIM COMMAND PRO, 80, 6 SECTION, BOOM HARNESS

Запчасти Case IH PATRIOT 2250 (55.635.AM[13]) - AIM COMMAND PRO, 80, 6 SECTION, BOOM HARNESS (55) - ELECTRICAL SYSTEMS

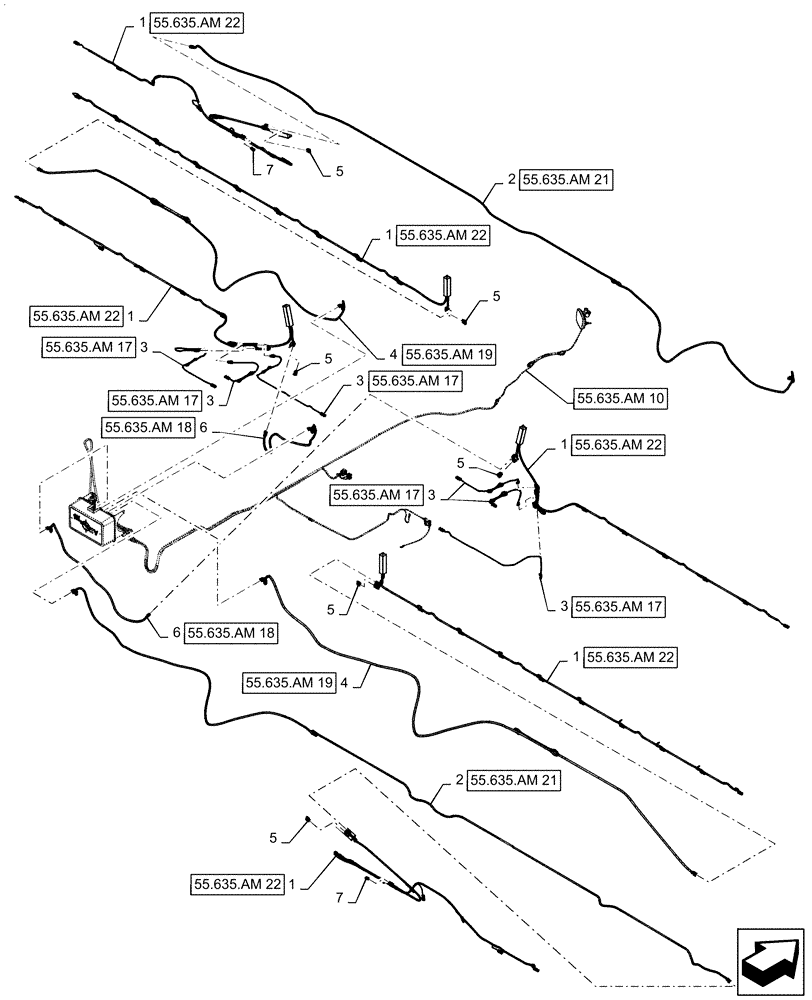

Схема запчастей Case IH PATRIOT 2250 - (55.635.AM[13]) - AIM COMMAND PRO, 80, 6 SECTION, BOOM HARNESS (55) - ELECTRICAL SYSTEMS
55.635.am 17
5
3
7
6
1
5
3
2
2
1
3
4
7
5
1
5
1
1
3
1
6
4
5
55.635.am 10
55.635.am 18
55.635.am 18
55.635.am 22
55.635.am 22
55.635.am 22
55.635.am 22
55.635.am 22
55.635.am 22
55.635.am 21
5
3
55.635.am 19
55.635.am 19
55.635.am 21
55.635.am 17
55.635.am 17
55.635.am 17
55.635.am 17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47552079

WIRE HARNESS

Module, VCM, 9 Nozzle x 20"

6шт.

2

47552092

EXTENSION

35' Harness, 6 Terminal, with Fuse

2шт.

3

47552085

WIRE HARNESS

5' Extension, 2 Terminal

6шт.

4

47552089

WIRE HARNESS

20', Extension 6 Terminal, with Fuse

2шт.

5

87692817

ELEC CONNECTOR

4 Cavity, Black

6шт.

6

47552086

EXTENSION

5' Harness, 6 Terminal, with Fuse

2шт.

7

87697537

ELEC CONNECTOR

2 Cavity, Grey

6шт.

Выбрано товаров: 7
