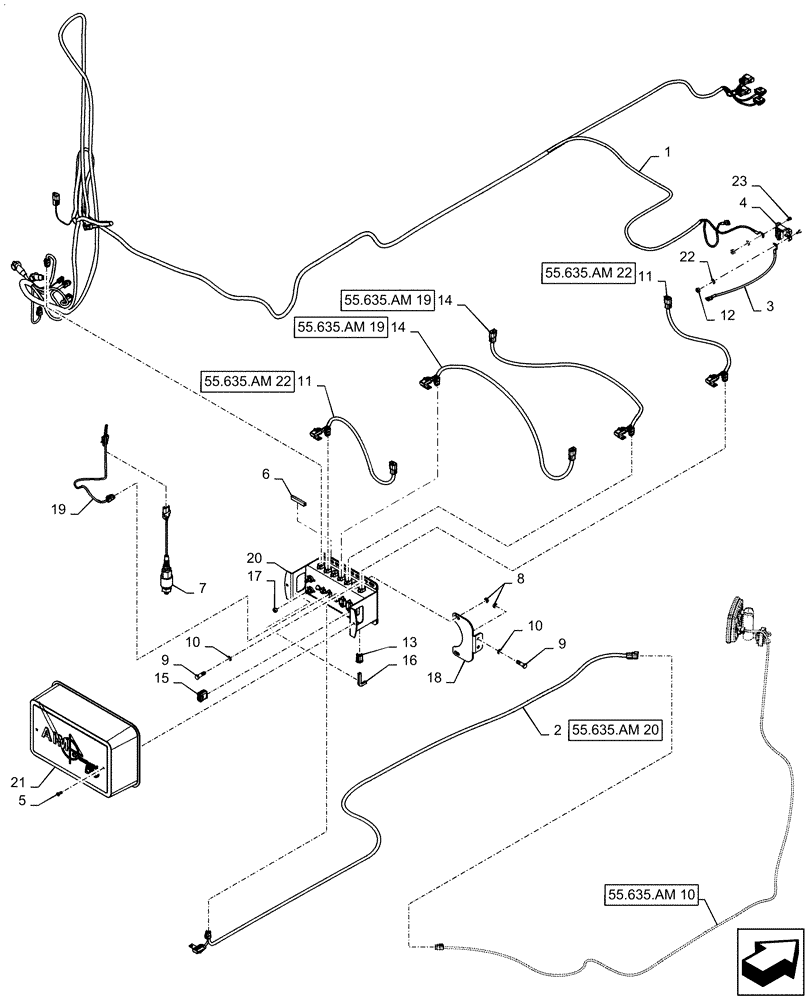

Запчасти Case IH PATRIOT 2250 (55.635.AM[11]) - AIM COMMAND PRO, CHASSIS COMPONENTS (55) - ELECTRICAL SYSTEMS

1

47632182

WIRE HARNESS

Assy, Chassis, Aim Command Pro

1шт.

2

47552091

WIRE HARNESS

Assy, Can Bus, 6 Connector, 30' Aim Command Pro

1шт.

See 55.635.AM 20 For Service

1шт.

3

47632183

CABLE

Battery to Circuit Breaker, Aim Command Pro

1шт.

4

47592591

CIRCUIT BREAKER

80A, Aim Command Pro

1шт.

5

161-114

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 5/8"

Cover

2шт.

6

448764A1

SEAL

Bulk, Edge Trim

1шт.

7

47609409

SENSOR

Pressure, Aim Command Pro

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

9

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

11

47552079

WIRE HARNESS

Assy, VCM, 9 Nozzle x 20", Aim Command Pro

7шт.

See 55.635.AM 22 For Service

1шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

13

47416268

WIRE CONNECTOR

DT SRS-6W-REC HSG

6шт.

14

47552089

WIRE HARNESS

Assy, Can Bus, 6 Connector, 20', Aim Command Pro

2шт.

See 55.635.AM 19 For Service

1шт.

15

47416270

ELEC CONNECTOR

DT SRS-12W-REC HSG

2шт.

16

1977224C1

CHANNEL

Bulk, Edge Trim

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

47611423

BRACKET

Gateway Hub

1шт.

19

47591904

WIRE HARNESS

PSI-1 Adaptor Harness, Aim Command Pro

1шт.

20

47822983

JUNCTION BLOCK

Gateway Hub

1шт.

21

47591247

COVER

Gateway Hub

1шт.

22

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

23

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.
