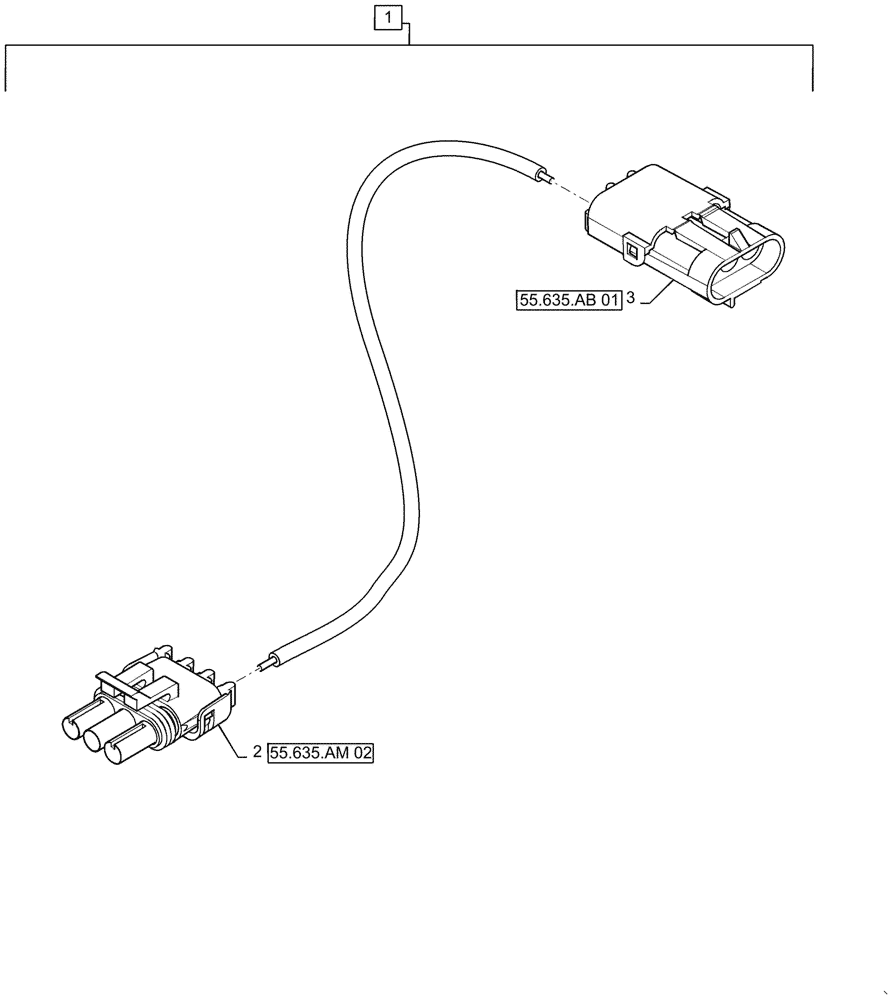

Запчасти Case IH PATRIOT 2250 (55.635.AM[08]) - AIM COMMAND, NOZZLE ALTERNATOR HARNESS (55) - ELECTRICAL SYSTEMS

1

BN316014

HARNESS

Assy, Nozzle Alternator, Incl 2, 3

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

P001, Aim Command Central Harness

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

P001, Aim Command Central Harness

3шт.

2

225126C1

CONNECTOR, ELEC

P001, Connector Seal, Aim Command Central Harness

1шт.

3

87692858

ELEC CONNECTOR,Male

J001, Aim Command Boom Harness

1шт.

3

225119C1

TERMINAL

J001, Aim Command Boom Harness

3шт.

3

225126C1

CONNECTOR, ELEC

J001, Connector Seal, Aim Command Boom Harness

1шт.
