(55.635.AM[04]) - AIM COMMAND, 80, 5 & 6 SECTION, OUTER / BREAKAWAY, HARNESS, 6 NOZZLE

Запчасти Case IH PATRIOT 2250 (55.635.AM[04]) - AIM COMMAND, 80, 5 & 6 SECTION, OUTER / BREAKAWAY, HARNESS, 6 NOZZLE (55) - ELECTRICAL SYSTEMS

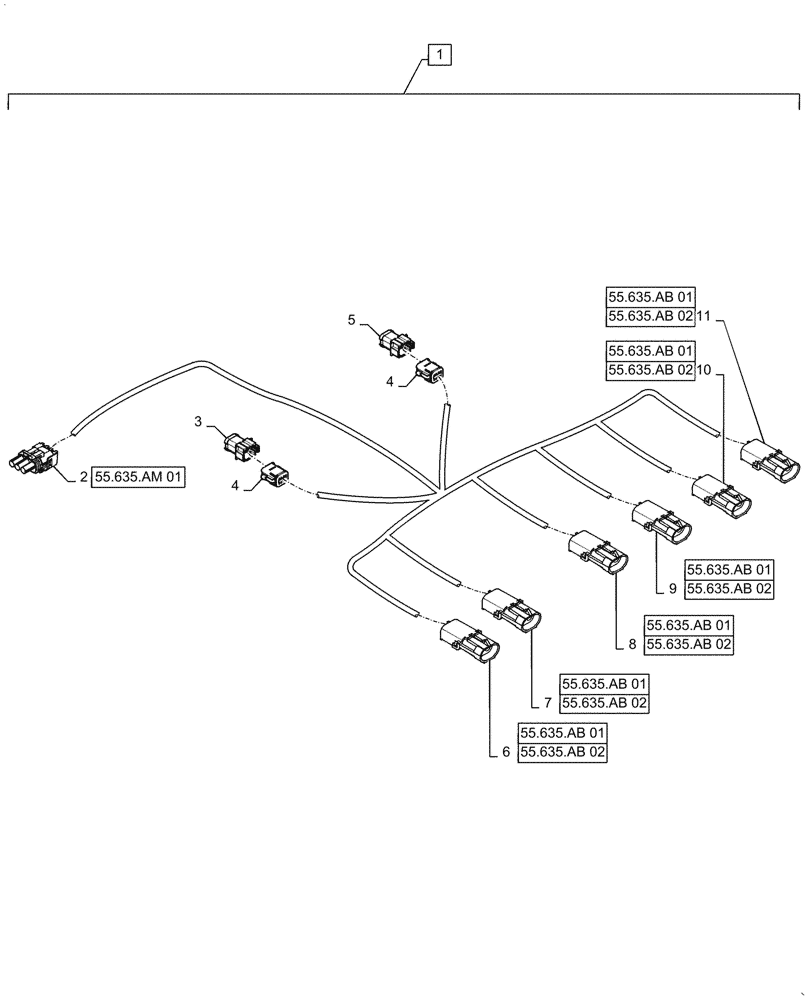

Схема запчастей Case IH PATRIOT 2250 - (55.635.AM[04]) - AIM COMMAND, 80, 5 & 6 SECTION, OUTER / BREAKAWAY, HARNESS, 6 NOZZLE (55) - ELECTRICAL SYSTEMS
55.635.ab 02
4
5
6
11
1
10
9
2
7
4
3
8
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.ab 02
55.635.am 01
55.635.ab 02
55.635.ab 02
55.635.ab 02
55.635.ab 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47553093

WIRE HARNESS

Assy, Aim Command, 5 Section, 80' Boom, Outer / Breakaway, 6 Nozzle, Incl 2 - 11

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

X-010, Aim Command Central Harness

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

X-010, Aim Command Central Harness

3шт.

2

225126C1

CONNECTOR, ELEC

X-010, Connector Seal, Aim Command Central Harness

1шт.

3

87270259

ELEC CONNECTOR

X-011, Connector, Splice Pack

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-011, Female Terminal, Nickel, Spice Pack

6шт.

4

87695693

ELEC CONNECTOR

X-011 / X-012, Connector, Splice Pack

1шт.

4

87695693

ELEC CONNECTOR

X-012, Connector, Splice Pack

1шт.

5

87587628

ELEC CONNECTOR

X-012, Connector, Splice Pack, 2 x 4 Ways

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-012, Female Terminal, Nickel, Spice Pack

6шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-001, Nozzle Solenoid Connector

1шт.

6

87692856

CABLE TERMINAL

X-001, Female, Solenoid Connector

2шт.

6

87680701

SEAL

X-001, Green, Cavity, Solenoid Connector

2шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-002, Nozzle Solenoid Connector

1шт.

7

87692856

CABLE TERMINAL

X-002, Female, Solenoid Connector

2шт.

7

87680701

SEAL

X-002, Green, Cavity, Solenoid Connector

2шт.

8

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-003, Nozzle Solenoid Connector

1шт.

8

87692856

CABLE TERMINAL

X-003, Female, Solenoid Connector

2шт.

8

87680701

SEAL

X-003, Green, Cavity, Solenoid Connector

2шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-004, Nozzle Solenoid Connector

1шт.

9

87692856

CABLE TERMINAL

X-004, Female, Solenoid Connector

2шт.

9

87680701

SEAL

X-004, Green, Cavity, Solenoid Connector

2шт.

10

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-005, Nozzle Solenoid Connector

1шт.

10

87692856

CABLE TERMINAL

X-005, Female, Solenoid Connector

2шт.

10

87680701

SEAL

X-005, Green, Cavity, Solenoid Connector

2шт.

11

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-006, Nozzle Solenoid Connector

1шт.

11

87692856

CABLE TERMINAL

X-006, Female, Solenoid Connector

2шт.

11

87680701

SEAL

X-006, Green, Cavity, Solenoid Connector

2шт.
