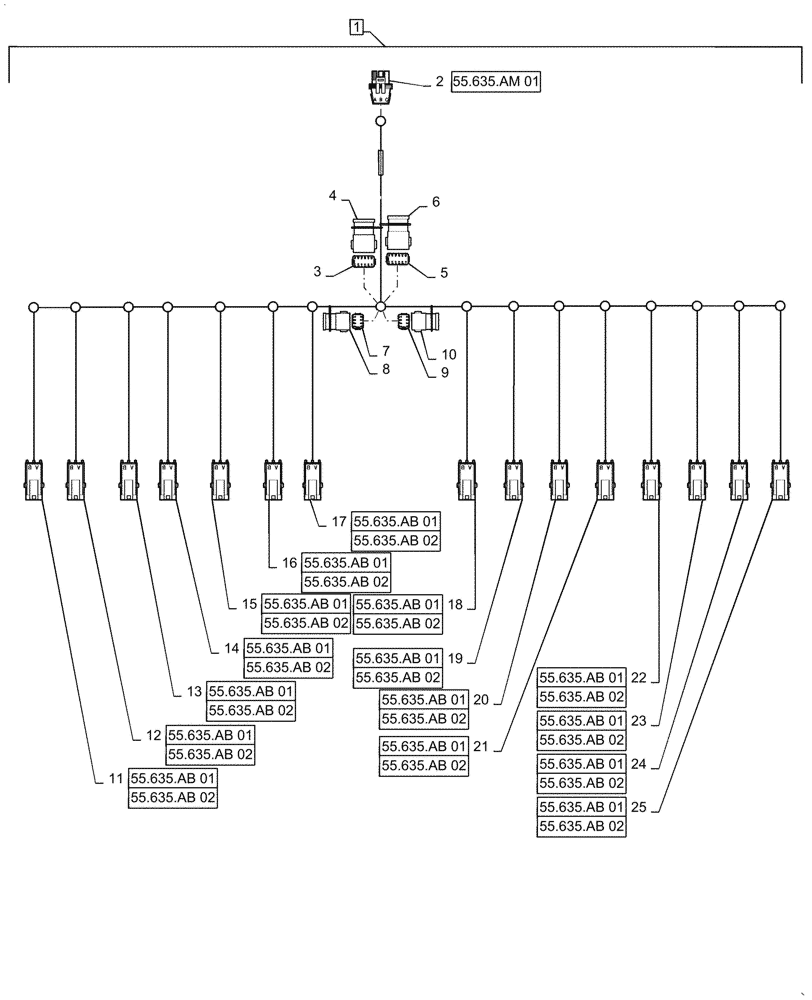

Запчасти Case IH PATRIOT 2250 (55.635.AM[03]) - AIM COMMAND, 80 & 90, 5 SECTION, INNER HARNESS, 15 NOZZLE (55) - ELECTRICAL SYSTEMS

1

87586925

WIRE HARNESS

Aim Command, 5 Section, 90' Boom, Inner Section, 15 Nozzle, Incl 2 - 36

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

P16, Aim Command Central Harness

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

P16, Aim Command Central Harness

3шт.

2

225126C1

CONNECTOR, ELEC

P16, CONNECTOR Seal, Aim Command Central Harness

1шт.

3

225389C1

CONNECTOR, ELEC

P100, CONNECTOR Splice Pack

1шт.

3

87695651

LOCKING TAB,Wedge Lock

P100, Splice Pack

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

P100, Splice Pack

12шт.

4

87269436

SOCKET/RECEPTACLE

J100, 12 Way Splice Pack

1шт.

5

225389C1

CONNECTOR, ELEC

P101, CONNECTOR Splice Pack

1шт.

5

87695651

LOCKING TAB,Wedge Lock

P101, Splice Pack

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

P101, Splice Pack

12шт.

6

87269436

SOCKET/RECEPTACLE

J101, 12 Way Splice Pack

1шт.

7

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

P102, Splice Pack

1шт.

7

84806312

LOCKING TAB,Wedge Lock

P102, Wedge, Splice Pack

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

P102, Splice Pack

8шт.

8

87270259

ELEC CONNECTOR

J102, 8 Way Splice Pack

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

P103, Splice Pack

1шт.

9

84806312

LOCKING TAB,Wedge Lock

P103, Wedge, Splice Pack

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

P103, Splice Pack,

8шт.

10

87270259

ELEC CONNECTOR

J103, 8 Way Splice Pack

1шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

J01, Nozzle Solenoid Connector

1шт.

11

225119C1

TERMINAL

J01, Nozzle Solenoid Connector

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

J01, Nozzle Solenoid Connector

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

J02, Nozzle Solenoid Connector

1шт.

12

225119C1

TERMINAL

J02, Nozzle Solenoid Connector

2шт.

12

225124C1

SEAL,2 - 2.9 mm2

J02, Nozzle Solenoid Connector

2шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

J03, Nozzle Solenoid Connector

1шт.

13

225119C1

TERMINAL

J03, Nozzle Solenoid Connector

2шт.

13

225124C1

SEAL,2 - 2.9 mm2

J03, Nozzle Solenoid Connector

2шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

J04, Nozzle Solenoid Connector

1шт.

14

225119C1

TERMINAL

J04, Nozzle Solenoid Connector

2шт.

14

225124C1

SEAL,2 - 2.9 mm2

J04, Nozzle Solenoid Connector

2шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

J05, Nozzle Solenoid Connector

1шт.

15

225119C1

TERMINAL

J05, Nozzle Solenoid Connector

2шт.

15

225124C1

SEAL,2 - 2.9 mm2

J05, Nozzle Solenoid Connector

2шт.

16

245483C1

ELEC CONNECTOR,Male, 2 Pin

J06, Nozzle Solenoid Connector

1шт.

16

225119C1

TERMINAL

J06, Nozzle Solenoid Connector

2шт.

16

225124C1

SEAL,2 - 2.9 mm2

J06, Nozzle Solenoid Connector

2шт.

17

245483C1

ELEC CONNECTOR,Male, 2 Pin

J07, Nozzle Solenoid Connector

1шт.

17

225119C1

TERMINAL

J07, Nozzle Solenoid Connector

2шт.

17

225124C1

SEAL,2 - 2.9 mm2

J07, Nozzle Solenoid Connector

2шт.

18

245483C1

ELEC CONNECTOR,Male, 2 Pin

J08, Nozzle Solenoid Connector

1шт.

18

225119C1

TERMINAL

J08, Nozzle Solenoid Connector

2шт.

18

225124C1

SEAL,2 - 2.9 mm2

J08, Nozzle Solenoid Connector

2шт.

19

245483C1

ELEC CONNECTOR,Male, 2 Pin

J09, Nozzle Solenoid Connector

1шт.

19

225119C1

TERMINAL

J09, Nozzle Solenoid Connector

2шт.

19

225124C1

SEAL,2 - 2.9 mm2

J09, Nozzle Solenoid Connector

2шт.

20

245483C1

ELEC CONNECTOR,Male, 2 Pin

J10, Nozzle Solenoid Connector

1шт.

20

225119C1

TERMINAL

J10, Nozzle Solenoid Connector

2шт.

20

225124C1

SEAL,2 - 2.9 mm2

J10, Nozzle Solenoid Connector

2шт.

21

245483C1

ELEC CONNECTOR,Male, 2 Pin

J11, Nozzle Solenoid Connector

1шт.

21

225119C1

TERMINAL

J11, Nozzle Solenoid Connector

2шт.

21

225124C1

SEAL,2 - 2.9 mm2

J11, Nozzle Solenoid Connector

2шт.

22

245483C1

ELEC CONNECTOR,Male, 2 Pin

J12, Nozzle Solenoid Connector

1шт.

22

225119C1

TERMINAL

J12, Nozzle Solenoid Connector

2шт.

22

225124C1

SEAL,2 - 2.9 mm2

J12, Nozzle Solenoid Connector

2шт.

23

245483C1

ELEC CONNECTOR,Male, 2 Pin

J13, Nozzle Solenoid Connector

1шт.

23

225119C1

TERMINAL

J13, Nozzle Solenoid Connector

2шт.

23

225124C1

SEAL,2 - 2.9 mm2

J13, Nozzle Solenoid Connector

2шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

J14, Nozzle Solenoid Connector

1шт.

24

225119C1

TERMINAL

J14, Nozzle Solenoid Connector

2шт.

24

225124C1

SEAL,2 - 2.9 mm2

J14, Nozzle Solenoid Connector

2шт.

25

245483C1

ELEC CONNECTOR,Male, 2 Pin

J15, Nozzle Solenoid Connector

1шт.

25

225119C1

TERMINAL

J15, Nozzle Solenoid Connector

2шт.

25

225124C1

SEAL,2 - 2.9 mm2

J15, Nozzle Solenoid Connector

2шт.
