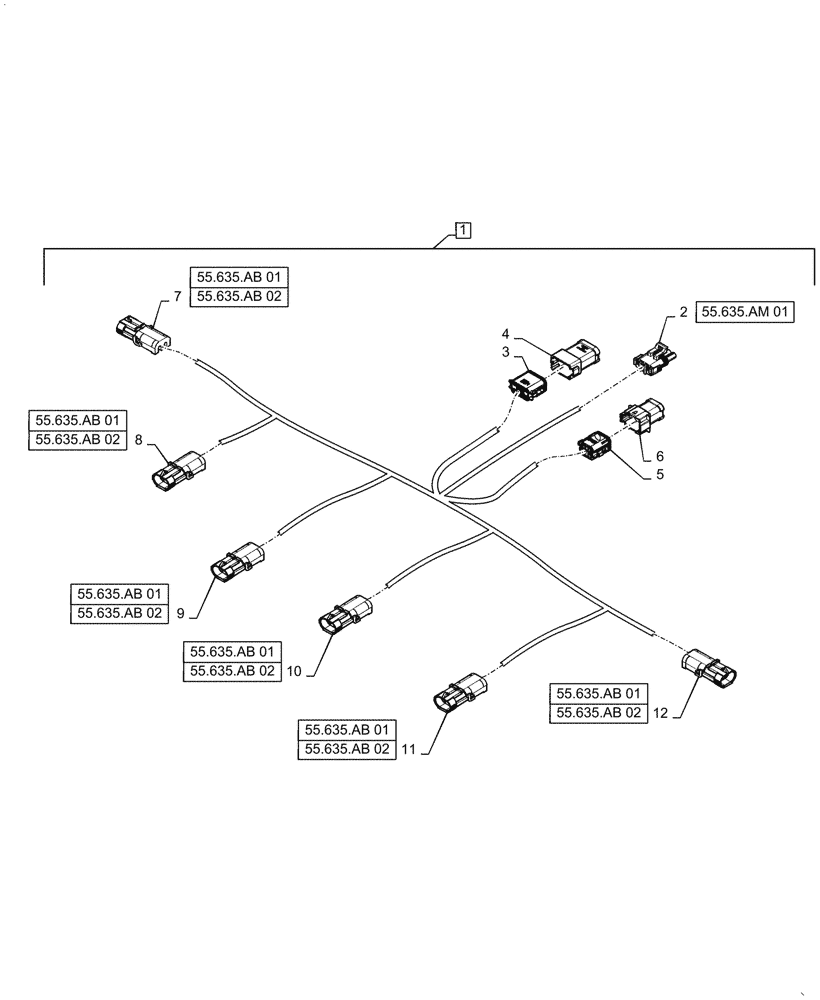

Запчасти Case IH PATRIOT 2250 (55.635.AM[02]) - AIM COMMAND, 80 & 90 5 SECTION, CENTER HARNESS, 6 NOZZLE (55) - ELECTRICAL SYSTEMS

1

87586918

WIRE HARNESS

Assy, Aim Command, 5 Section, 90' Boom, Center Section, 6 Nozzle, Incl 2 - 12

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

P07, Aim Command Central Harness

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

P07, Aim Command Central Harness

3шт.

2

225126C1

CONNECTOR, ELEC

P07, CONNECTOR Seal, Aim Command Central Harness

1шт.

3

225389C1

CONNECTOR, ELEC

P100, CONNECTOR Splice Pack

1шт.

3

87695651

LOCKING TAB,Wedge Lock

P100, Splice Pack

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

P100, Splice Pack

12шт.

4

87381540

ELEC CONNECTOR

J100, Splice Pack 2 x 6 Way

1шт.

5

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

P101, Splice Pack

1шт.

5

84806312

LOCKING TAB,Wedge Lock

P101, Wedge, Splice Pack

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

P101, Splice Pack

8шт.

6

87270259

ELEC CONNECTOR

J101, 8 Way Splice Pack

1шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

J01, Nozzle Solenoid Connector

1шт.

7

225119C1

TERMINAL

J01, Nozzle Solenoid Connector

2шт.

7

225124C1

SEAL,2 - 2.9 mm2

J01, Nozzle Solenoid Connector

2шт.

8

245483C1

ELEC CONNECTOR,Male, 2 Pin

J02, Nozzle Solenoid Connector

1шт.

8

225119C1

TERMINAL

J02, Nozzle Solenoid Connector

2шт.

8

225124C1

SEAL,2 - 2.9 mm2

J02, Nozzle Solenoid Connector

2шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

J03, Nozzle Solenoid Connector

1шт.

9

225119C1

TERMINAL

J03, Nozzle Solenoid Connector

2шт.

9

225124C1

SEAL,2 - 2.9 mm2

J03, Nozzle Solenoid Connector

2шт.

10

245483C1

ELEC CONNECTOR,Male, 2 Pin

J04, Nozzle Solenoid Connector

1шт.

10

225119C1

TERMINAL

J04, Nozzle Solenoid Connector

2шт.

10

225124C1

SEAL,2 - 2.9 mm2

J04, Nozzle Solenoid Connector

2шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

J05, Nozzle Solenoid Connector

1шт.

11

225119C1

TERMINAL

J05, Nozzle Solenoid Connector

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

J05, Nozzle Solenoid Connector

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

J06, Nozzle Solenoid Connector

1шт.

12

225119C1

TERMINAL

J06, Nozzle Solenoid Connector

2шт.

12

225124C1

SEAL,2 - 2.9 mm2

J06, Nozzle Solenoid Connector

2шт.
