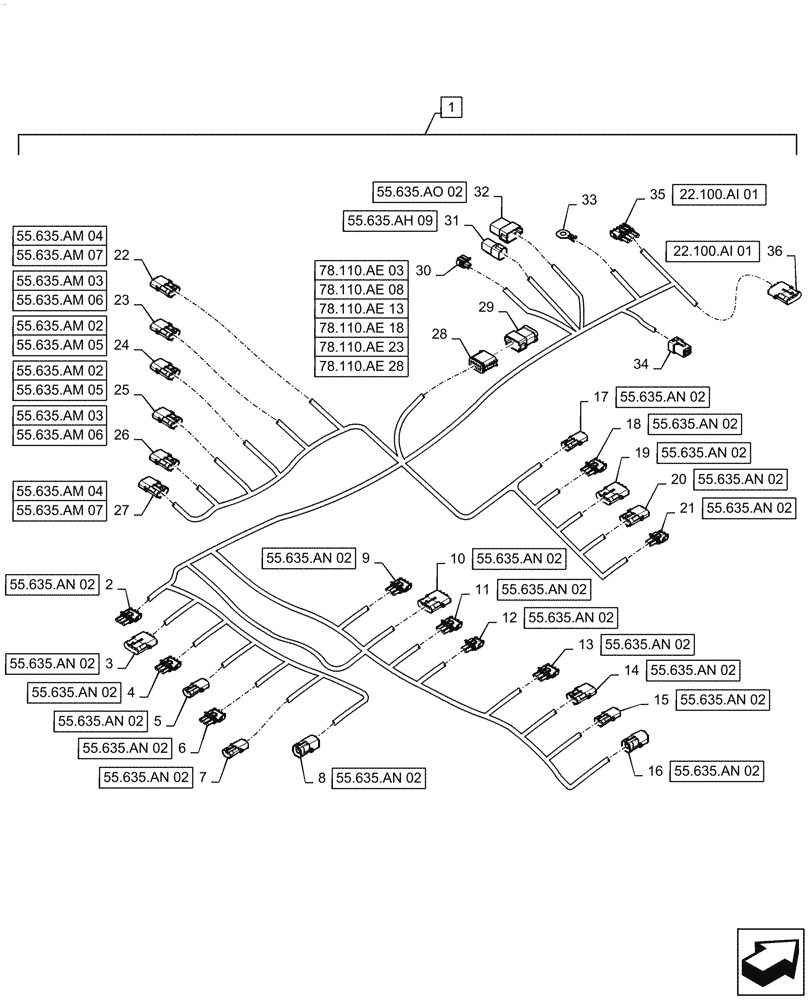

Запчасти Case IH PATRIOT 2250 (55.635.AM[01]) - AIM COMMAND, 80 / 90, MAIN FRAME, HARNESS (55) - ELECTRICAL SYSTEMS

1

84355689

HARNESS

Assy, Aim Command Main Frame, 80' & 90' Boom, Incl 2 - 36

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

C928F, Section #4

1шт.

2

1964742C1

PIN

C928F, Terminal, Section #4

1шт.

2

225126C1

CONNECTOR, ELEC

C928F, CONNECTOR Seal, Section #4

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C928F, Section #4

2шт.

3

245487C1

ELEC CONNECTOR,Male, 4 Pin

C926M, Shutoff

1шт.

3

1964742C1

PIN

C929F, Terminal, Section #5

1шт.

3

225127C1

PLUG

C926M, Shutoff

1шт.

3

225126C1

CONNECTOR, ELEC

C929F, CONNECTOR Seal, Section #5

1шт.

3

225119C1

TERMINAL

C926M, Shutoff

3шт.

4

87644909

WIRE CONNECTOR,Female, 3 Pins

C929F, Section #5

1шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C929F, Section #5

2шт.

4

1964742C1

PIN

C930F, Terminal, Section #6

1шт.

4

225126C1

CONNECTOR, ELEC

C930F, CONNECTOR Seal, Section #6

1шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C930F, Section #6

2шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

C924M, Slave In

1шт.

5

225119C1

TERMINAL

C924M, Slave In

1шт.

5

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C924M, Slave In

1шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

C930F, Section #6

1шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

C923M, Aim Command Manual

1шт.

7

225119C1

TERMINAL

C923M, Aim Command Manual

2шт.

8

245716C1

ELEC CONNECTOR,Male, 4 Pin

C927M, Power

1шт.

8

225119C1

TERMINAL

C927M, Power

4шт.

9

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

9

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

9

1964742C1

PIN

Terminal, Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

9

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #1, C906F/ Section #2, C907F/ Section #3, C908F

2шт.

10

245487C1

ELEC CONNECTOR,Male, 4 Pin

C904M, Shutoff

1шт.

10

225127C1

PLUG

C904M, Shutoff

1шт.

10

225119C1

TERMINAL

C904M, Shutoff

3шт.

11

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

11

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

11

1964742C1

PIN

Terminal, Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

11

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #1, C906F/ Section #2, C907F/ Section #3, C908F

2шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

C903M, Slave Out

1шт.

12

225119C1

TERMINAL

C903M, Slave Out

1шт.

12

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C903M, Slave Out

1шт.

13

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

13

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

13

1964742C1

PIN

Terminal, Section #1, C906F/ Section #2, C907F/ Section #3, C908F

1шт.

13

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #1, C906F/ Section #2, C907F/ Section #3, C908F

2шт.

14

87692858

ELEC CONNECTOR,Male

C902M, Servo

1шт.

14

225127C1

PLUG

C902M, Servo

1шт.

14

225119C1

TERMINAL

C902M, Servo

2шт.

15

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

C901M, Aim Command Manual

1шт.

15

225119C1

TERMINAL

C901M, Aim Command Manual

2шт.

16

245716C1

ELEC CONNECTOR,Male, 4 Pin

C905M, Power

1шт.

16

225119C1

TERMINAL

C905M, Power

4шт.

17

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

C911F, Aim Command Manual

1шт.

17

225119C1

TERMINAL

C911F, Aim Command Manual

2шт.

18

87644909

WIRE CONNECTOR,Female, 3 Pins

C913F, Feedback

1шт.

18

225127C1

PLUG

C913F, Feedback

2шт.

18

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C913F, Feedback

1шт.

19

245487C1

ELEC CONNECTOR,Male, 4 Pin

C910M, Control

1шт.

19

225127C1

PLUG

C910M, Control

1шт.

19

225119C1

TERMINAL

C910M, Control

3шт.

20

87692858

ELEC CONNECTOR,Male

C912M, PSI Sensor

1шт.

20

225119C1

TERMINAL

C912M, PSI Sensor

3шт.

21

87692855

CONTACT HOUSING,Male, 2 Cavities

C909F, Output

1шт.

21

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C909F, Output

2шт.

22

87692858

ELEC CONNECTOR,Male

C931M, Section #1

1шт.

22

225119C1

TERMINAL

C931M, Section #1

3шт.

22

225126C1

CONNECTOR, ELEC

C931M, CONNECTOR Seal, Section #1

1шт.

23

87692858

ELEC CONNECTOR,Male

C932M, Section #2

1шт.

23

225119C1

TERMINAL

C932M, Section #2

3шт.

23

225126C1

CONNECTOR, ELEC

C932M, CONNECTOR Seal, Section #2

1шт.

24

87692858

ELEC CONNECTOR,Male

C933M, Section #3

1шт.

24

225119C1

TERMINAL

C933M, Section #3

3шт.

24

225126C1

CONNECTOR, ELEC

C933M, CONNECTOR Seal, Section #3

1шт.

25

87692858

ELEC CONNECTOR,Male

C934M, Section #4

1шт.

25

225119C1

TERMINAL

C934M, Section #4

3шт.

25

225126C1

CONNECTOR, ELEC

C934M, CONNECTOR Seal, Section #4

1шт.

26

87692858

ELEC CONNECTOR,Male

C935M, Section #5

1шт.

26

225119C1

TERMINAL

C935M, Section #5

3шт.

26

225126C1

CONNECTOR, ELEC

C935M, CONNECTOR Seal, Section #5

1шт.

27

87692858

ELEC CONNECTOR,Male

C936M, Section #6

1шт.

27

225119C1

TERMINAL

C936M, Section #6

3шт.

27

225126C1

CONNECTOR, ELEC

C936M, CONNECTOR Seal, Section #6

1шт.

28

87695592

CONTACT HOUSING,Female, 12 Pole

C914F, 12 Way Splice

1шт.

28

87695651

LOCKING TAB,Wedge Lock

C914F, 12 Way Splice

1шт.

28

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

C914F, 12 Way Splice

9шт.

28

84068583

PLUG,12 - 16 Ga, White

C914F, 12 Way Splice

3шт.

29

87269436

SOCKET/RECEPTACLE

C914M, 12 Way Splice Pack

1шт.

30

84078681

WIRE CONNECTOR,Female

C900F, Aim Command PSI Sensor

1шт.

30

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

C900F, Terminal, Aim Command PSI Sensor

3шт.

31

87694152

CONTACT HOUSING,Male, 6 Pole

C422M, Hydraulic Harness Interface

1шт.

31

84068583

PLUG,12 - 16 Ga, White

C422M, Hydraulic Harness Interface

1шт.

31

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

C422M, Hydraulic Harness Interface

5шт.

32

87695724

ELEC CONNECTOR,Male, 12 Pole

C522M, Product Harness Interface

1шт.

32

87698541

LOCKING TAB,Wedge Lock, 12-Pin

C522M, Product Harness Interface

1шт.

32

84068583

PLUG,12 - 16 Ga, White

C522M, Product Harness Interface

6шт.

32

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

C522M, Product Harness Interface

6шт.

33

1964718C1

TERMINAL CONNECTOR

G1-AM, Chassis Ground

1шт.

34

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

C940M, Aim Command Power

1шт.

34

87707798

WEDGE

C940M, Aim Command Power

1шт.

34

84068583

PLUG,12 - 16 Ga, White

C940M, Aim Command Power

2шт.

34

87704524

ELEC CONNECTOR,Pin, Size 12

C940M, Terminal, Aim Command Power

2шт.

35

245486C1

ELEC CONNECTOR,4 Pin

C520FA, Remote Out

1шт.

35

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

C520FA, Remote Out

4шт.

36

245487C1

ELEC CONNECTOR,Male, 4 Pin

C517MA, Remote In

1шт.

36

225119C1

TERMINAL

C517MA, Remote In

4шт.
