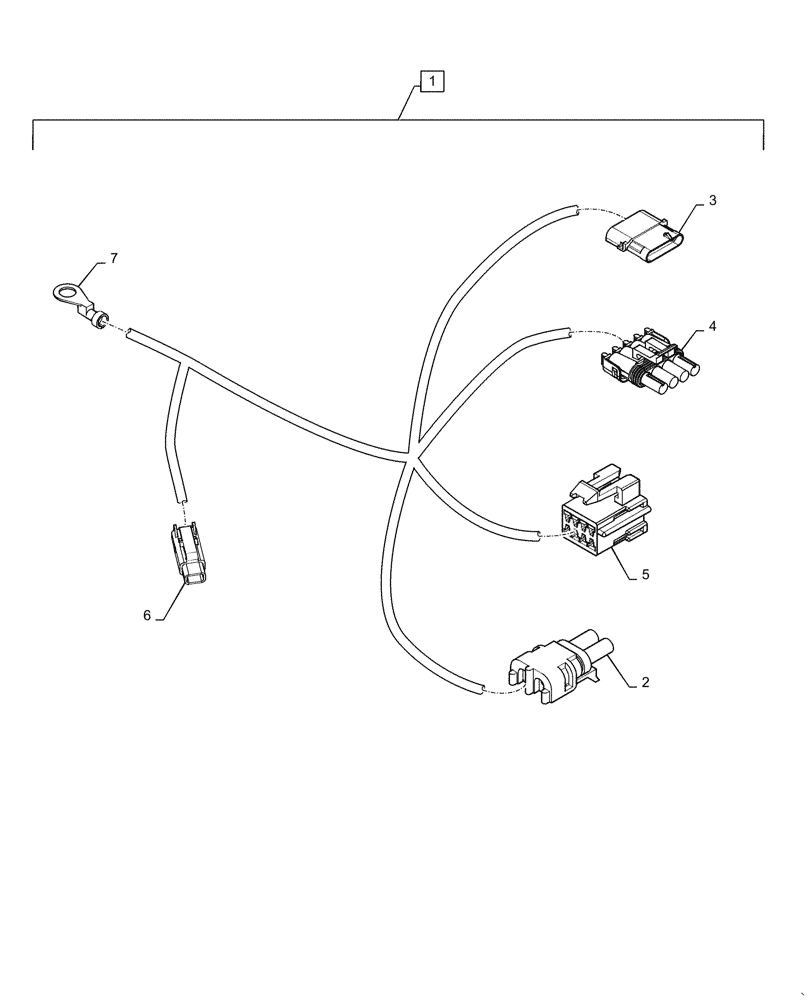

Запчасти Case IH PATRIOT 2250 (55.635.AD[02]) - REMOTE RELOAD HARNESS (55) - ELECTRICAL SYSTEMS

1

87266537

HARNESS

Assy, Remote Module, Incl 2 - 7

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

X-630F, Park Brake

1шт.

2

87692880

CABLE TERMINAL

X-630F, Park Brake

2шт.

Connects to Main Frame Harness On Chassis

1шт.

3

245487C1

ELEC CONNECTOR,Male, 4 Pin

X-517M, Remote In

1шт.

4

245486C1

ELEC CONNECTOR,4 Pin

X-520F, Remote Out/Boost Module

1шт.

4

87692880

CABLE TERMINAL

X-520F, Remote Out/Boost Module

4шт.

5

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

X-800, Engine

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-800, Engine

6шт.

Connects to Main Frame Harness On Chassis

1шт.

6

222136A1

ELEC CONNECTOR,Male, 2 Pin

X-006, Remote Light

1шт.

6

87696141

TERMINAL

X-006, Remote Light

2шт.

7

1964702C1

TERMINAL CONNECTOR

#6 Rings

16шт.

7

1964703C1

TERMINAL CONNECTOR

#8 Rings

2шт.
