(55.635.AC[01]) - FOAM MARKER, JUMPER HARNESS

Запчасти Case IH PATRIOT 2250 (55.635.AC[01]) - FOAM MARKER, JUMPER HARNESS (55) - ELECTRICAL SYSTEMS

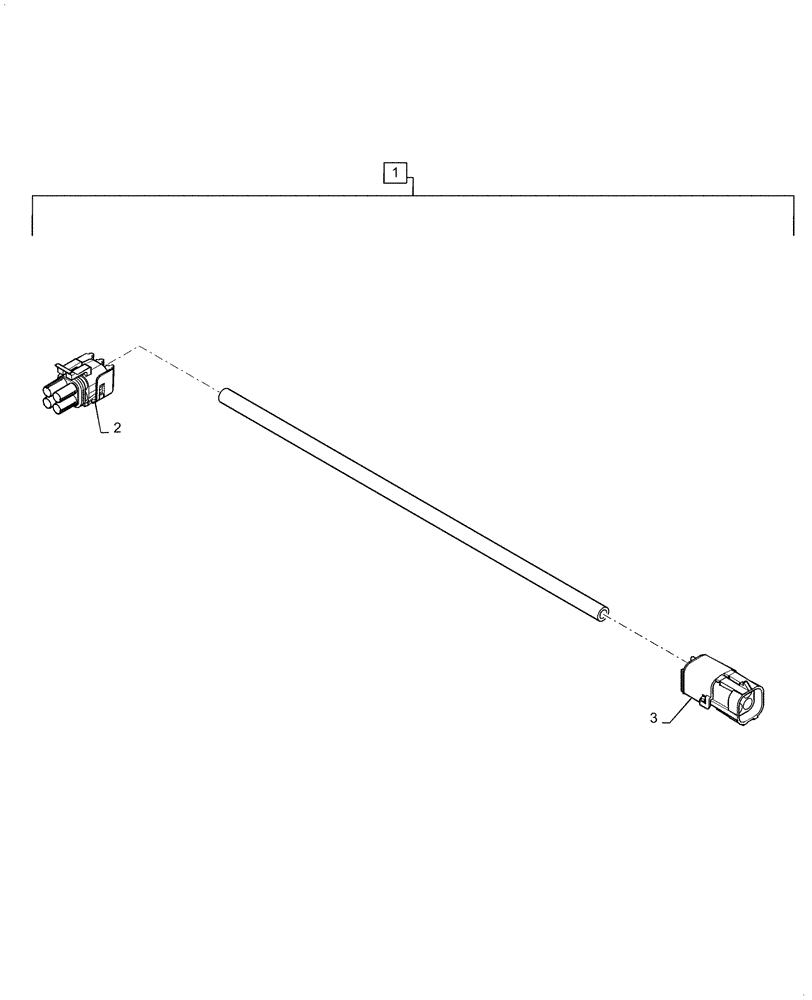

Схема запчастей Case IH PATRIOT 2250 - (55.635.AC[01]) - FOAM MARKER, JUMPER HARNESS (55) - ELECTRICAL SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47850717

WIRE HARNESS

Assy, Arag Foam Marker, Incl 2, 3

1шт.

2

87692862

ELEC CONNECTOR

X-909F1, Foam Marker Jumper

1шт.

2

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

X-909F1, Foam Marker Jumper

4шт.

2

87680710

SEAL

X-909F1, Foam Marker Jumper

4шт.

3

87692881

WIRE CONNECTOR

X-909M1, Foam Marker Jumper

1шт.

3

87692882

ELEC. TERMINAL PIN

X-909M1, Foam Marker Jumper

4шт.

3

87680710

SEAL

X-909M1, Foam Marker Jumper

4шт.
