(55.635.AB[08]) - NCV, WILGER, SERVICE KITS

Запчасти Case IH PATRIOT 2250 (55.635.AB[08]) - NCV, WILGER, SERVICE KITS (55) - ELECTRICAL SYSTEMS

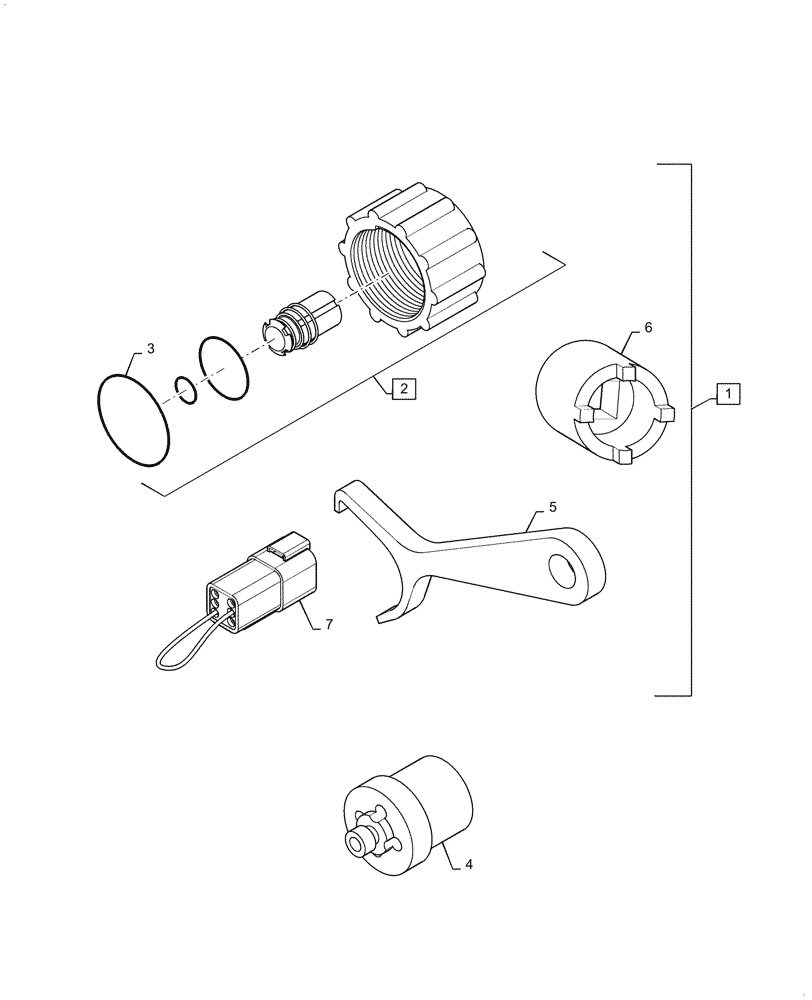

Схема запчастей Case IH PATRIOT 2250 - (55.635.AB[08]) - NCV, WILGER, SERVICE KITS (55) - ELECTRICAL SYSTEMS
7
5
6
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48031206

KIT

NCV Service, Wilger, Incl 2, 5, 6, 7

1шт.

2

48030133

KIT

NCV Seal, Wilger, Incl Single Ref 3, Fly Nut, Small O Rings, Poppet

1шт.

3

48031205

O-RING

Brown, Viton, Bulk Pack of 56

1шт.

4

48030134

BODY

Nozzle Control Valve, Wilger

1шт.

5

NSS

NOT SOLD SEPARAT

Fly Nut Wrench

1шт.

6

NSS

NOT SOLD SEPARAT

Valve Body Removal Tool

2шт.

7

NSS

NOT SOLD SEPARAT

Valve Jumper

2шт.
