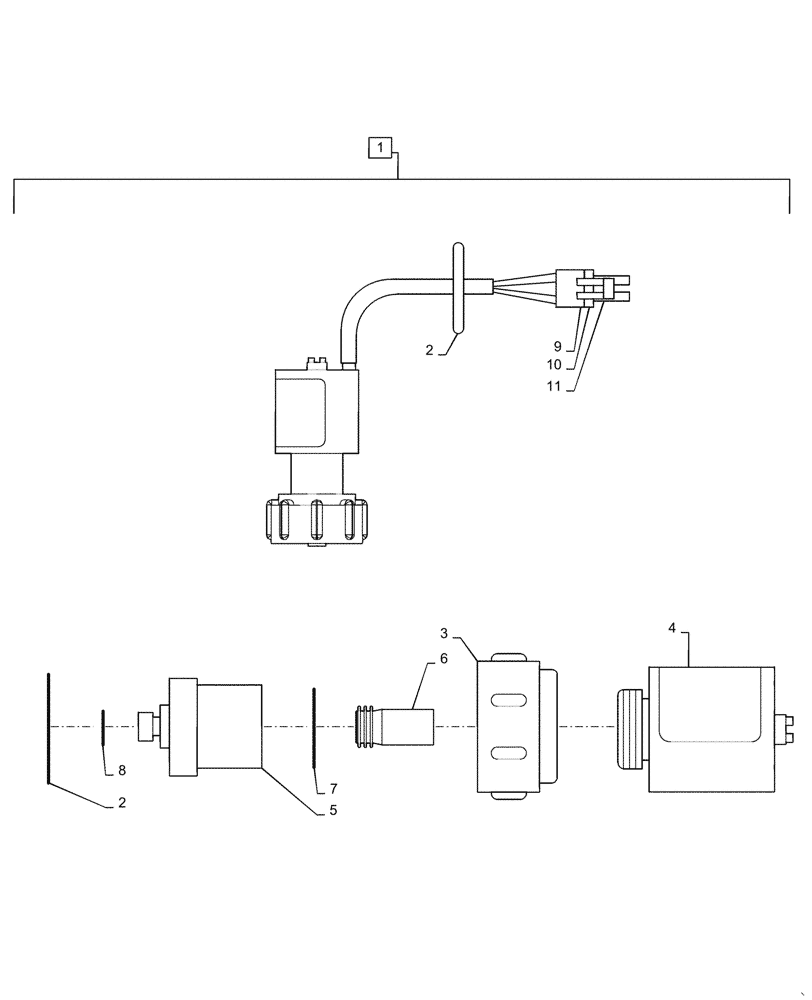

Запчасти Case IH PATRIOT 2250 (55.635.AB[01]) - AIM COMMAND, AIM COMMAND PRO, ARAG SOLENOID (55) - ELECTRICAL SYSTEMS

1

87271451

SOLENOID

Assy, Aim Command, Arag, Incl 2 - 11

1шт.

2

87272506

O-RING

Arag, 115 Viton

1шт.

3

84249074

CAP

Flynut, Arag

1шт.

4

87272502

SOLENOID

Coil Assy, 7W, Overmolded

1шт.

5

87272507

HYDRAULIC VALVE

Grip Body, Arag

1шт.

6

87272503

PLUNGER

Assy, PFE

1шт.

7

87272504

O-RING

0.015, Viton

1шт.

8

87272505

O-RING

0.008, Viton

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Weather Pack, Female

1шт.

10

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Socket, 14-16awg

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Green

2шт.
