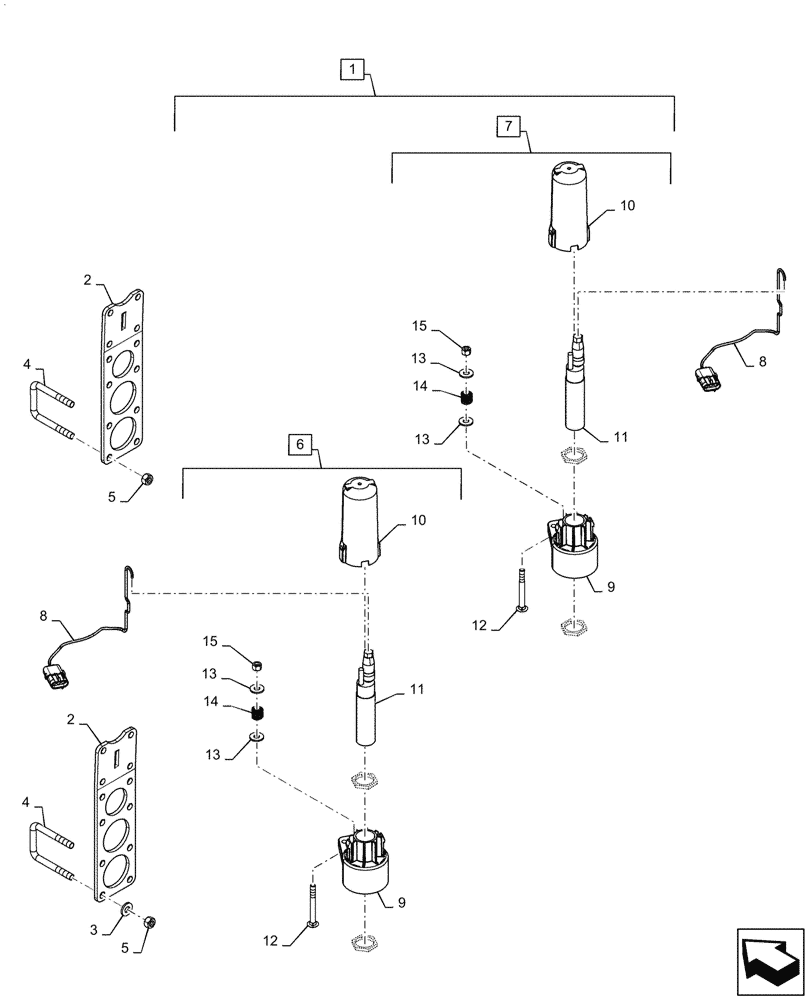

Запчасти Case IH PATRIOT 2250 (55.527.AC[05]) - OUTER BOOM, ADDITIONAL SENSORS (55) - ELECTRICAL SYSTEMS

1

87668162

KIT

Autoboom, Dual Sensor Kit, Incl 6 - 7

1шт.

2

47593329

MOUNT

Sensor, Tall, Red

2шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

4

47650282

U-BOLT

M10

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

6

87710686

SENSOR

Assy, Ultrasonic, Molded, Left, Incl 9 - 15

1шт.

7

87710685

SENSOR

Assy, Ultrasonic, Molded, Right, Incl 9 - 15

1шт.

8

84532259

ELECTRIC CABLE

Ultrasonic Sensor

1шт.

9

87710736

HOUSING

Ultrasonic Sensor

2шт.

10

87710737

COVER

Ultrasonic Sensor

2шт.

11

84247476

SENSOR

Ultrasonic, Digital

2шт.

12

281006

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

2шт.

13

95-21038

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

14

87711151

SPRING

Compression

2шт.

15

86050277

NUT,5/16"-18, GB

2шт.
