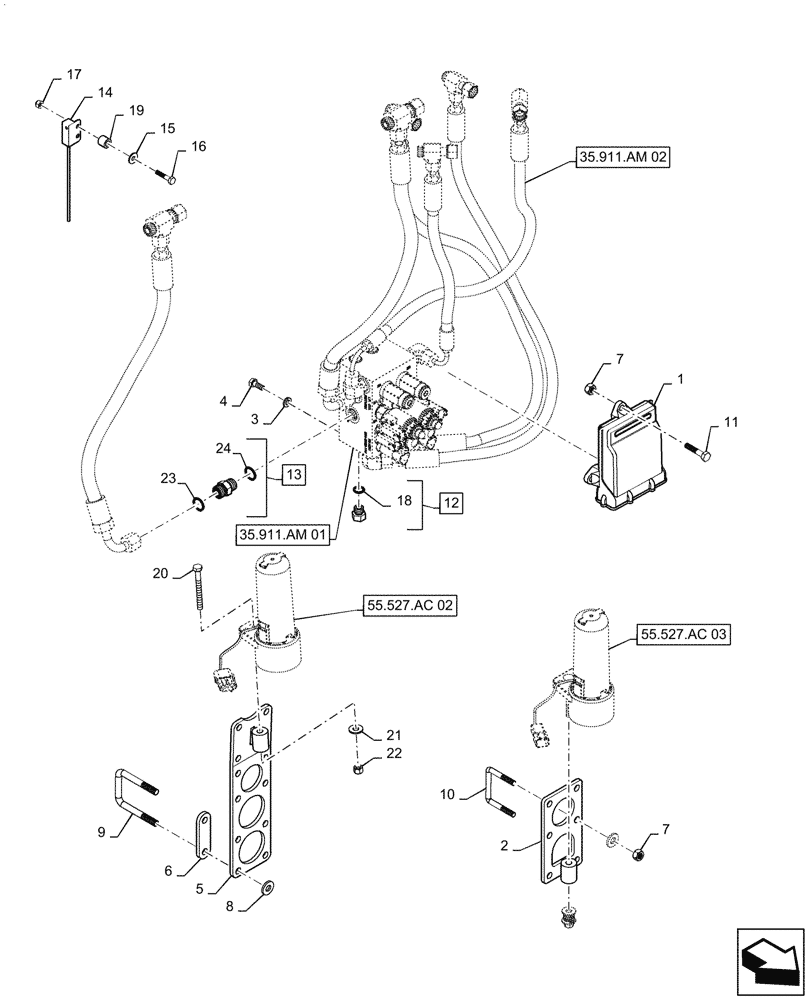

Запчасти Case IH PATRIOT 2250 (55.527.AC[02]) - AUTOBOOM ASSY (55) - ELECTRICAL SYSTEMS

1

87717349

MODULE

Autoboom Node

1шт.

1

87717349R

REMAN-MODULE

Autoboom Node

1шт.

1

87717349C

CORE-MODULE

Return Number

1шт.

2

84255690

BRACKET

Sensor, Center, Short

1шт.

3

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

4

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

5

47593329

MOUNT

Sensor, Boom,Tall

2шт.

6

47654165

SPACER

Spacer

4шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

13шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

9

47650282

U-BOLT

Booms, M10

4шт.

10

87586548

U-BOLT

Center, M10

1шт.

11

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

12

BN446048

PLUG

9/16 - 18, Incl 18

2шт.

13

BN302650

FITTING

Incl 23, 24

2шт.

14

BN315498

SWITCH

Position Sensor with Diode

2шт.

15

BN50138

WASHER,1/4", SS

4шт.

16

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4 - 20 x 1-1/4, SS

4шт.

17

BN55359

LOCK NUT,1/4"-20, SS

4шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

47441518

TUBE

Sensor Mount

4шт.

20

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

3шт.

21

95-21038

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

22

86050277

NUT,5/16"-18, GB

3шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
