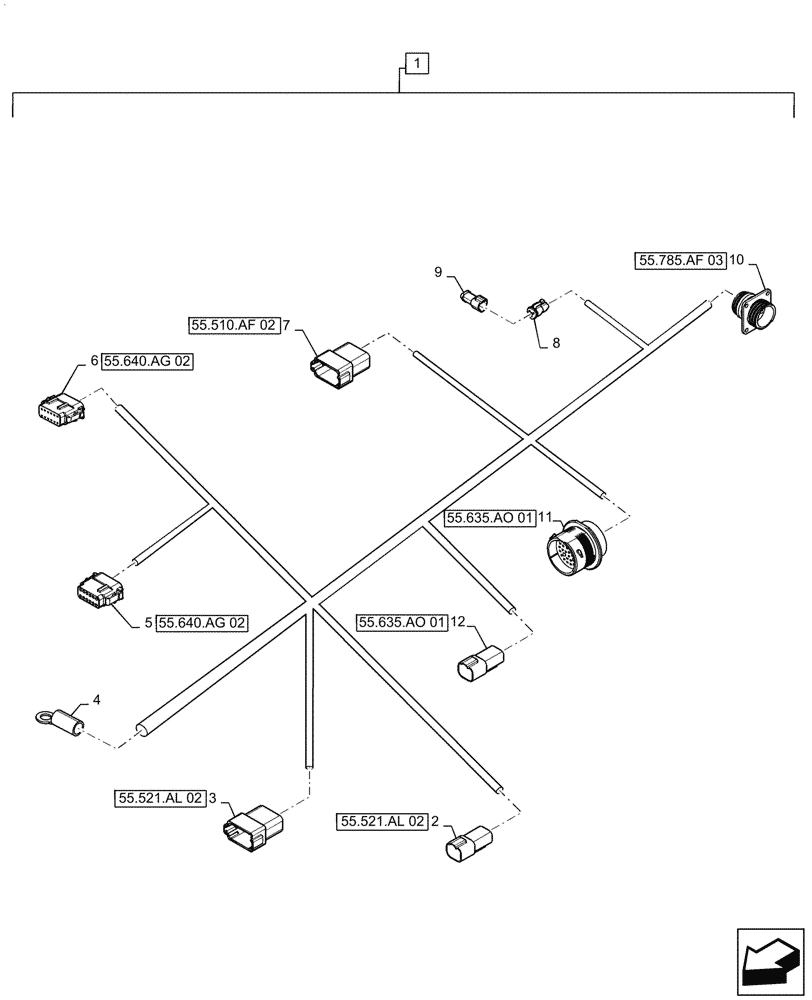

Запчасти Case IH PATRIOT 2250 (55.521.AL[03]) - PRODUCT CONTROL, CAB INTERFACE, HARNESS (55) - ELECTRICAL SYSTEMS

1

84541768

WIRE HARNESS

Assy, Product Control, Cab, Incl 2 - 12

1шт.

2

87694102

ELEC CONNECTOR

X-038M, Male, 4 Cavity, Hyd / Prod Interface

1шт.

2

87695623

ELEC. TERMINAL PIN

X-038M, Male, Nickel, Hyd / Prod Interface

4шт.

2

87694145

ELEC CONNECTOR

X-038M, Wedge Lock, Hyd / Prod Interface

1шт.

3

225401C1

CONNECTOR, ELEC

X-040M, Male, 12 Cavity, Hyd / Prod Interface Keying C

1шт.

3

87695623

ELEC. TERMINAL PIN

X-040M, Male, Nickel, Stamped, Hyd / Prod Interface Keying C

11шт.

3

84068583

PLUG,12 - 16 Ga, White

X-040M, Sealing, Hyd / Prod Interface Keying C

1шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-040M, Wedge Lock, Hyd / Prod Interface Keying C

1шт.

4

87486319

TERMINAL

CG3, Ring Terminal, M10, Clean Ground

1шт.

5

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

X-047F, Speed Node, Keying B

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-047F, Stamped, Speed Node, Keying B

4шт.

5

87705198

WEDGE

X-047F, Lock, Speed Node, Keying B

1шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

X-051F, Speed Node, Keying A

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-051F, Stamped, Speed Node, Keying A

11шт.

6

87705198

WEDGE

X-051F, Lock, Speed Node, Keying A

1шт.

6

84807680

PLUG

X-051F, Sealing, Red, Speed Node, Keying A

1шт.

7

225464C1

CONNECTOR, ELEC

X-054M, Male, 12 Cavity, Cab / Prod Interface

1шт.

7

87695623

ELEC. TERMINAL PIN

X-054M, Stamped, Cab / Prod Interface

12шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

X-725F Can Terminator

1шт.

8

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

X-725F, Solid, Can Terminator

2шт.

8

84147090

LOCKING TAB,Wedge Lock

X-725F, Lock, Can Terminator

1шт.

9

84058092

CONTACT HOUSING,120 Ohm Resistor

X-725M, Can Terminator

1шт.

10

87689501

ELEC CONNECTOR

XB-011F, Male, 16 Cavity, Control Interface

1шт.

10

87695623

ELEC. TERMINAL PIN

XB-011F, Male, Nickel, Stamped, Control Interface

4шт.

10

225107C1

TERMINAL CONNECTOR,Male, 0.8 - 1 mm2

XB-011F, Gold, Control Interface

4шт.

10

225141C1

MULTIPOLE CONNECTOR

XB-011F, # 17 Cable Clamp, Control Interface

1шт.

11

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

XB-5M, Product/Cab Interface

1шт.

11

87271930

NUT

XB-5M, Plastic Panel, Product/Cab Interface

1шт.

11

84807680

PLUG

XB-5M, Cavity Seal, Product/Cab Interface

11шт.

11

84068583

PLUG,12 - 16 Ga, White

XB-5M, Cavity Seal, Product/Cab Interface

1шт.

11

87696141

TERMINAL

XB-5M, Product/Cab Interface

16шт.

11

87695623

ELEC. TERMINAL PIN

XB-5M, Product/Cab Interface

7шт.

12

87694102

ELEC CONNECTOR

X-907M, Front Marker

1шт.

12

87694145

ELEC CONNECTOR

X-907M, Wedge Lock, 4 Way Receptacle, Front Marker

1шт.

12

87695623

ELEC. TERMINAL PIN

XB-5M, Product/Cab Interface

3шт.

12

84068583

PLUG,12 - 16 Ga, White

XB-5M, Cavity, Product/Cab Interface

1шт.
