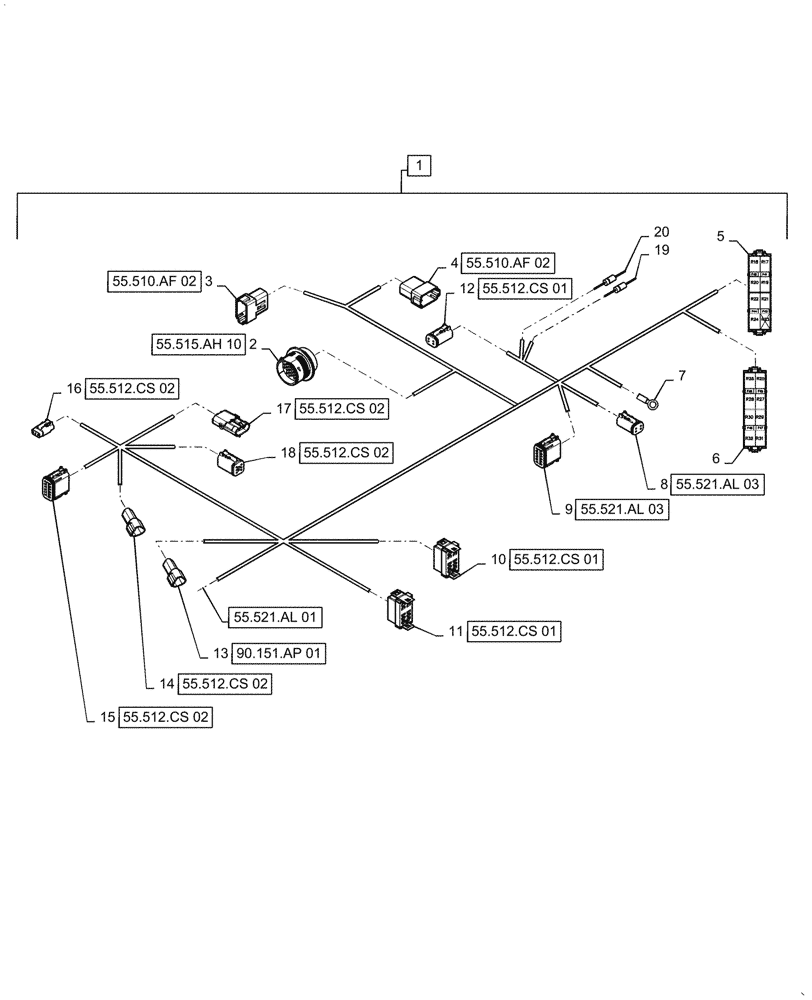

Запчасти Case IH PATRIOT 2250 (55.521.AL[02]) - RH CONSOLE, HYDRAULIC / BOOM CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS

1

47924799

WIRE HARNESS

Assy, RH Console, Section Control / Hydraulic Harness, Incl 2 - 20

1шт.

2

87696945

MULTIPOLE CONNECTOR,Male, 31 Pole

XB-4M, Hydraulic Interface

1шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

XB-4M, Male, Solid, Hydraulic Interface

21шт.

2

84068583

PLUG,12 - 16 Ga, White

XB-4M, Cavity, Hydraulic Interface

10шт.

2

87271930

NUT

XB-4M, Plastic Panel Nut, Hydraulic Interface

1шт.

2

84420455

LOCK WASHER,48mm ID x 45.8mm OD

XB-4M, Hydraulic Interface

1шт.

3

87700152

ELEC CONNECTOR,Female, 12 Cavities

C036F, Male, 12 Cavity, Hyd / Cab Interface 2, Keying B

1шт.

3

87695623

ELEC. TERMINAL PIN

C036F, Male, Nickel, Stamped, Hyd / Cab Interface 2, Keying

10шт.

3

84068583

PLUG,12 - 16 Ga, White

C036F, Cavity, Hyd / Cab Interface 2, Keying B

2шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

C036F, Wedge Lock, Hyd / Cab Interface 2, Keying B

1шт.

4

87695724

ELEC CONNECTOR,Male, 12 Pole

C035M, Hyd / Cab Interface 1, Keying A

1шт.

4

87695623

ELEC. TERMINAL PIN

C035M, Male, Nickel, Stamped, Hyd/Cab Interface 1, Keying A

9шт.

4

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

C035M

1шт.

4

84068583

PLUG,12 - 16 Ga, White

C035M, Cavity

2шт.

4

87698541

LOCKING TAB,Wedge Lock, 12-Pin

C035M, Wedge Lock, Hyd / Cab Interface 1, Keying A

1шт.

5

87314762

FUSE HOLDER

FK1-D, Female, 48 Cavity

1шт.

5

84153403

TERMINAL

FK1-D, Female, Tin

14шт.

5

87342003

TERMINAL

FK1-D, Female, Tin

2шт.

5

84153385

TERMINAL

FK1-D, Timer Receptical

12шт.

5

84157161

RELAY,12V, 20A

FK1-D

7шт.

6

87314762

FUSE HOLDER

FK1-E, Female, 48 Cavity

1шт.

6

84153388

TERMINAL

FK1-E, Timer Receptical

2шт.

6

10324990

TERMINAL

FK1-E, Female

8шт.

6

84153385

TERMINAL

FK1-E, Timer Receptical

14шт.

6

84153403

TERMINAL

FK1-E, Female, Tin

16шт.

6

84127702

FUSE,10A, Mini, Red

FK1-E

2шт.

6

84127705

FUSE,25A, Mini, White

FK1-E

1шт.

6

84157161

RELAY,12V, 20A

FK1-E

8шт.

7

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

G1, Chassis Ground

1шт.

8

87694153

CONTACT HOUSING,Female, 4 Cavities

X-038F, Hyd / Prod Interface

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-038F, Stamped,, Hyd / Prod Interface

2шт.

8

84068583

PLUG,12 - 16 Ga, White

X-038F, Cavity, Hyd / Prod Interface

2шт.

8

84074640

LOCKING TAB,Wedge Lock

X-038F, Wedge Lock, Hyd / Prod Interface

1шт.

9

225403C1

CONNECTOR, ELEC

X-040F, Female, 12 Cavity, Hyd / Prod Interface, Keying C

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-040F, Stamped, Hyd / Prod Interface, Keying C

11шт.

9

87695651

LOCKING TAB,Wedge Lock

X-040F, Lock, Hyd / Prod Interface, Keying C

1шт.

9

84068583

PLUG,12 - 16 Ga, White

X-040F, Sealing, Hyd / Prod Interface, Keying C

1шт.

10

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-120F, Sparge PSI, Inc / Dec

1шт.

10

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-120F, Female, Sparge PSI, Inc / Dec

3шт.

10

87697752

TERMINAL

X-120F, Female, Tin, Sparge PSI, Inc / Dec

3шт.

11

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-122F, Master Power, On / Off

1шт.

11

87697752

TERMINAL

X-122F, Female, Tin, Master Power, On / Off

5шт.

11

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-122F, Female, Master Power, On / Off

2шт.

12

87694153

CONTACT HOUSING,Female, 4 Cavities

X-907F, Foam Marker

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-907F, Stamped, Foam Marker

3шт.

12

84068583

PLUG,12 - 16 Ga, White

X-907F, Sealing, Foam Marker

1шт.

12

84074640

LOCKING TAB,Wedge Lock

X-907F, Wedge Lock, Foam Marker

1шт.

13

87695723

ELEC CONNECTOR,Male , 3 Pole

X-147M, TPS

1шт.

13

87695623

ELEC. TERMINAL PIN

X-147M, Male, Stamped, TPS

3шт.

13

87695625

WIRE CONNECTOR,Locking, Green

X-147M, Wedge Lock, TPS

1шт.

14

87695723

ELEC CONNECTOR,Male , 3 Pole

X-123M, Axle Width, In / Out

1шт.

14

87695623

ELEC. TERMINAL PIN

X-123M, Male, Stamped, Axle Width, In / Out

3шт.

14

87695625

WIRE CONNECTOR,Locking, Green

X-123M, Wedge Lock, Axle Width, In / Out

1шт.

15

87695592

CONTACT HOUSING,Female, 12 Pole

X-101F, Control Handle

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-101F, Stamped, Control Handle

11шт.

15

84068583

PLUG,12 - 16 Ga, White

X-101F, Sealing, Control Handle

1шт.

15

87695651

LOCKING TAB,Wedge Lock

X-101F, Lock, Control Handle

1шт.

16

87696551

CONTACT HOUSING,Female, 3 Pole

X-145F, Hydro Control Lever, Neutral Switch

1шт.

16

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-145F, Stamped, Hydro Control Lever, Neutral Switch

2шт.

16

87705586

WEDGE

X-145F, Lock, Hydro Control Lever, Neutral Switch

1шт.

17

87692858

ELEC CONNECTOR,Male

X-146M, 3 Cavity, Hydro Control Lever Reverse

1шт.

17

87692880

CABLE TERMINAL

X-146M, Male, Tin, Hydro Control Lever Reverse

2шт.

17

84286327

SEAL

X-146M, Cable Seal, Green, Hydro Control Lever Reverse

1шт.

17

87686742

PLUG

X-146M, Cavity Plug, Green, Hydro Control Lever Reverse

1шт.

18

87694112

ELEC CONNECTOR,Female, 6 Pole

X-100F Control Handle Power

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-100F, Stamped, Control Handle Power

4шт.

18

84068583

PLUG,12 - 16 Ga, White

X-100F, Cavity, Control Handle Power

2шт.

18

87694150

LOCKING TAB,Wedge Lock

X-100F, Lock, Control Handle Power

1шт.

19

BN16174

DIODE,600V, 3A

V-004, Foam Marker Diode

1шт.

20

BN16174

DIODE,600V, 3A

V-003, Foam Marker Diode

1шт.
