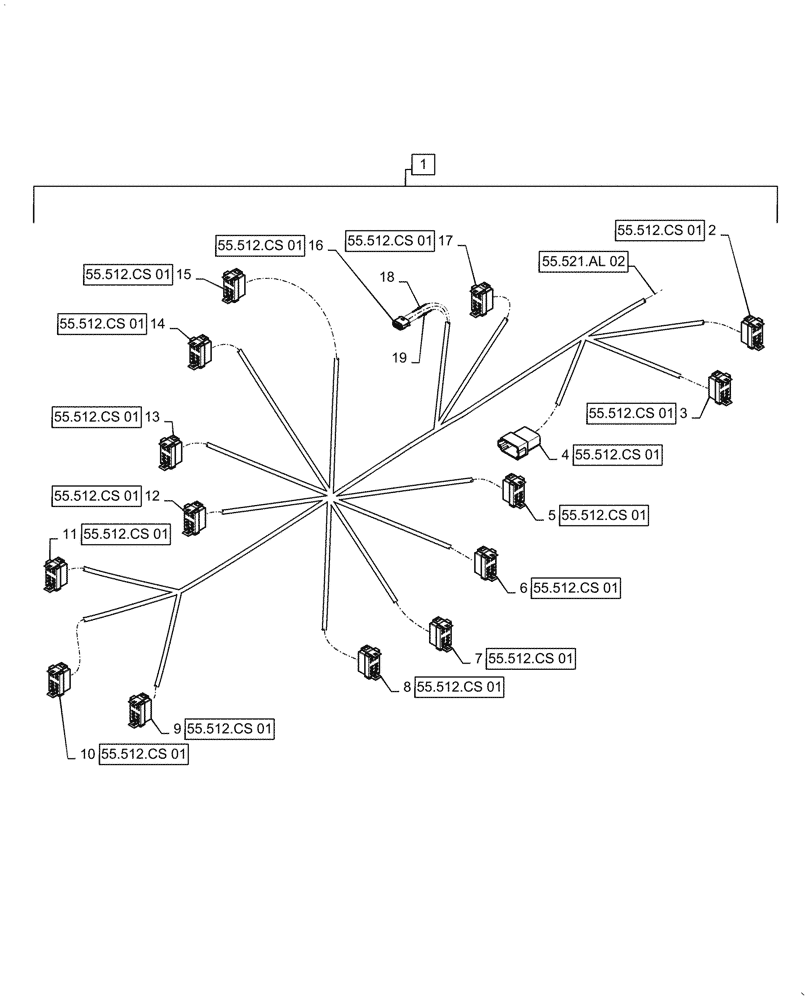

Запчасти Case IH PATRIOT 2250 (55.521.AL[01]) - RH CONSOLE, HYDRAULIC / BOOM CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS

1

47924799

WIRE HARNESS

Assy, RH Console, Hydraulic / Boom Control Harness, Incl 2 - 19

1шт.

2

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-119F, RH Tip, Up / Down

1шт.

2

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-119F, Female, RH Tip, Up / Down

1шт.

2

87697752

TERMINAL

X-119F, Female, Tin, RH Tip, Up / Down

2шт.

3

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-117F, LH Tip, Up / Down

1шт.

3

87697752

TERMINAL

X-117F, Female, Tin, LH Tip, Up / Down

2шт.

4

87695724

ELEC CONNECTOR,Male, 12 Pole

X-155M, One Touch Fold Option Interface

1шт.

4

87695623

ELEC. TERMINAL PIN

X-155M, Male, Stamped, One Touch Fold Option Interface

9шт.

4

84068583

PLUG,12 - 16 Ga, White

X-155M, Sealing, One Touch Fold Option Interface

3шт.

4

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-155M, Wedge Lock, One Touch Fold Option Interface

1шт.

5

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-109F, Sect 4 On / Off

1шт.

5

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-109F, Female, Sect 4 On / Off

2шт.

5

87697752

TERMINAL

X-109F, Female, Tin, Sect 4 On / Off

1шт.

6

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-108F, Sect 3 On / Off

1шт.

6

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-108F, Female, Sect 3 On / Off

2шт.

6

87697752

TERMINAL

X-108F, Female, Tin, Sect 3 On / Off

1шт.

7

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-107F, Sect 2 On / Off

1шт.

7

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-107F, Female, Sect 2 On / Off

2шт.

7

87697752

TERMINAL

X-107F, Female, Tin, Sect 2 On / Off

1шт.

8

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-106F, Sect 1 On / Off

1шт.

8

87697752

TERMINAL

X-106F, Female, Tin, Sect 1 On / Off

1шт.

8

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-106F, Female, Sect 1 On / Off

2шт.

9

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-103F, Aim Command, Auto / Manual

1шт.

9

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-103F, Female, Aim Command, Auto / Manual

4шт.

9

87697752

TERMINAL

X-103F, Female, Tin, Aim Command, Auto / Manual

5шт.

10

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-104F, Aim Command, Increase/ Decrease

1шт.

10

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-104F, Female, Aim Command, Increase/ Decrease

1шт.

10

87697752

TERMINAL

X-104F, Female, Tin, Aim Command, Increase/ Decrease

2шт.

11

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-105F, Aim Command, P1 / P2

1шт.

11

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-105F, Female, Aim Command, P1 / P2

1шт.

11

87697752

TERMINAL

X-105F, Female, Tin, Aim Command, P1 / P2

2шт.

12

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-110F, Sect 5, On / Off

1шт.

12

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-110F, Female, Sect 5, On / Off

2шт.

12

87697752

TERMINAL

X-110F, Female, Tin, Sect 5, On / Off

1шт.

13

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-111F, Sect 6, On / Off

1шт.

13

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-111F, Female, Sect 6, On / Off

1шт.

13

87697752

TERMINAL

X-111F, Female, Tin, Sect 6, On / Off

2шт.

14

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-116F, Fence Row, RH / LH

1шт.

14

87697752

TERMINAL

X-116F, Female, Tin, Fence Row, RH / LH

4шт.

14

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-116F, Female, Fence Row, RH / LH

2шт.

15

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-112F, Sect 7, On / Off

1шт.

15

87697752

TERMINAL

X-112F, Female, Tin, Sect 7, On / Off

3шт.

15

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-112F, Female, Sect 7, On / Off

3шт.

16

87695592

CONTACT HOUSING,Female, 12 Pole

X-148F, Range Select

1шт.

16

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

X-148F, Female, Range Select

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-148F, Stamped, Range Select

4шт.

16

84068583

PLUG,12 - 16 Ga, White

X-148F, Cavity, Range Select

8шт.

16

87695651

LOCKING TAB,Wedge Lock

X-148F, Lock, Range Select

1шт.

17

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-751F, Road Switch

1шт.

17

87697752

TERMINAL

X-751F, Female, Tin, Road Switch

2шт.

18

BN16174

DIODE,600V, 3A

V-001, Range Select Diode

2шт.

19

BN16174

DIODE,600V, 3A

V-002, Range Select Diode

2шт.
