(55.515.AO[01]) - BOOM POSITION SENSOR

Запчасти Case IH PATRIOT 2250 (55.515.AO[01]) - BOOM POSITION SENSOR (55) - ELECTRICAL SYSTEMS

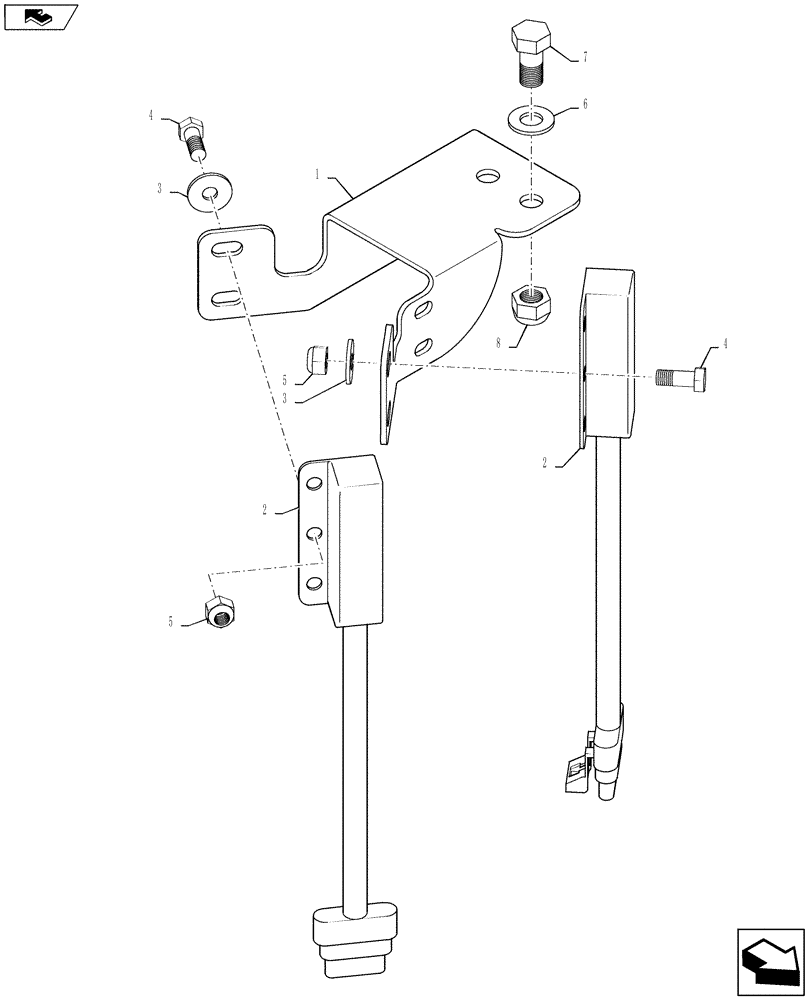

Схема запчастей Case IH PATRIOT 2250 - (55.515.AO[01]) - BOOM POSITION SENSOR (55) - ELECTRICAL SYSTEMS
2
6
4
4
3
2
5
1
8
3
7
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47429981

MOUNT

Boom Position Sensor

2шт.

2

87593274

SENSOR

Boom Position, with Diode

4шт.

3

BN50138

WASHER,1/4", SS

8шт.

4

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

8шт.

5

BN55359

LOCK NUT,1/4"-20, SS

8шт.

6

BN50146

WASHER,3/8", Stainless

4шт.

7

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.
