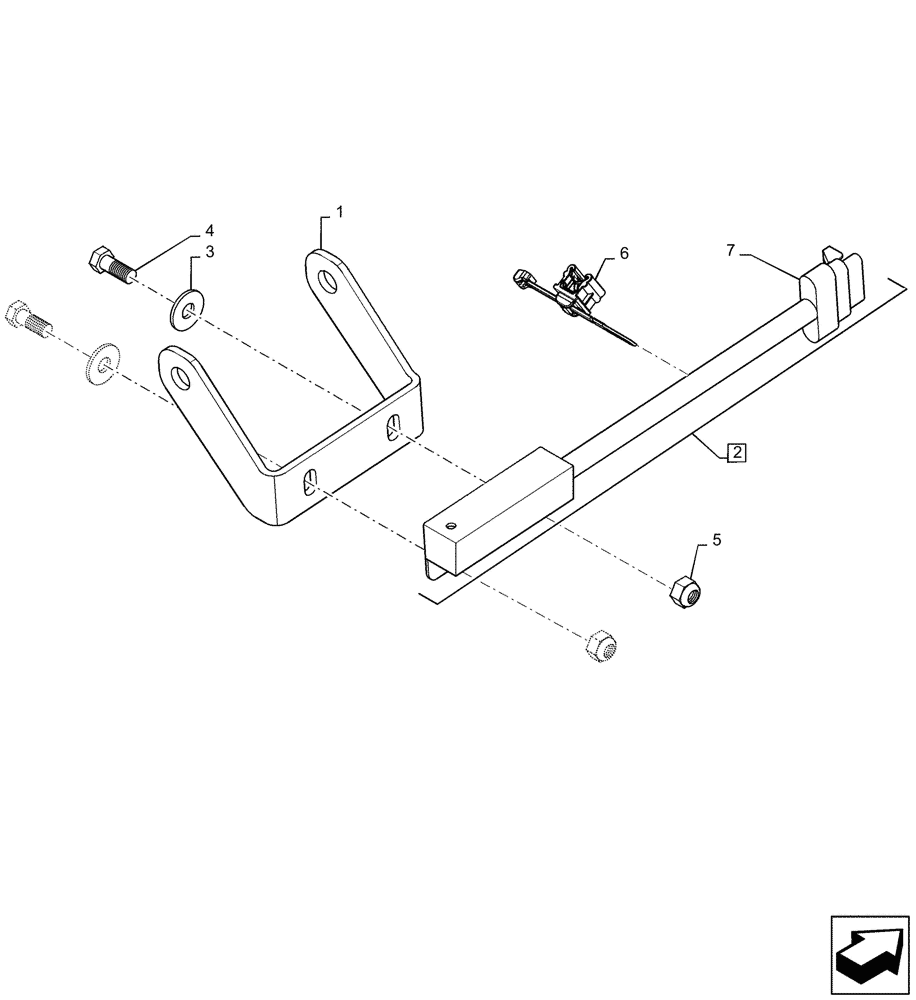

Запчасти Case IH PATRIOT 2250 (55.515.AK[01]) - BOOM LOCK SENSOR (55) - ELECTRICAL SYSTEMS

1

47405064

BRACKET

Boom Position Sensor

2шт.

2

87593274

SENSOR

Boom Position, Incl 7

2шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

5

BN55359

LOCK NUT,1/4"-20, SS

4шт.

6

47391607

FASTENER

Edge Clip

2шт.

7

256346A1

CONNECTOR, ELEC

2шт.

7

221381A1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

8шт.

7

315158A1

SEAL,2.03 - 2.85mm, Dark Red

8шт.

7

258616A1

LOCK

Wedge

2шт.
