Запчасти Case IH PATRIOT 2250 (55.515.AH[10]) - HYDRAULIC CONTROL FRAME HARNESS (55) - ELECTRICAL SYSTEMS

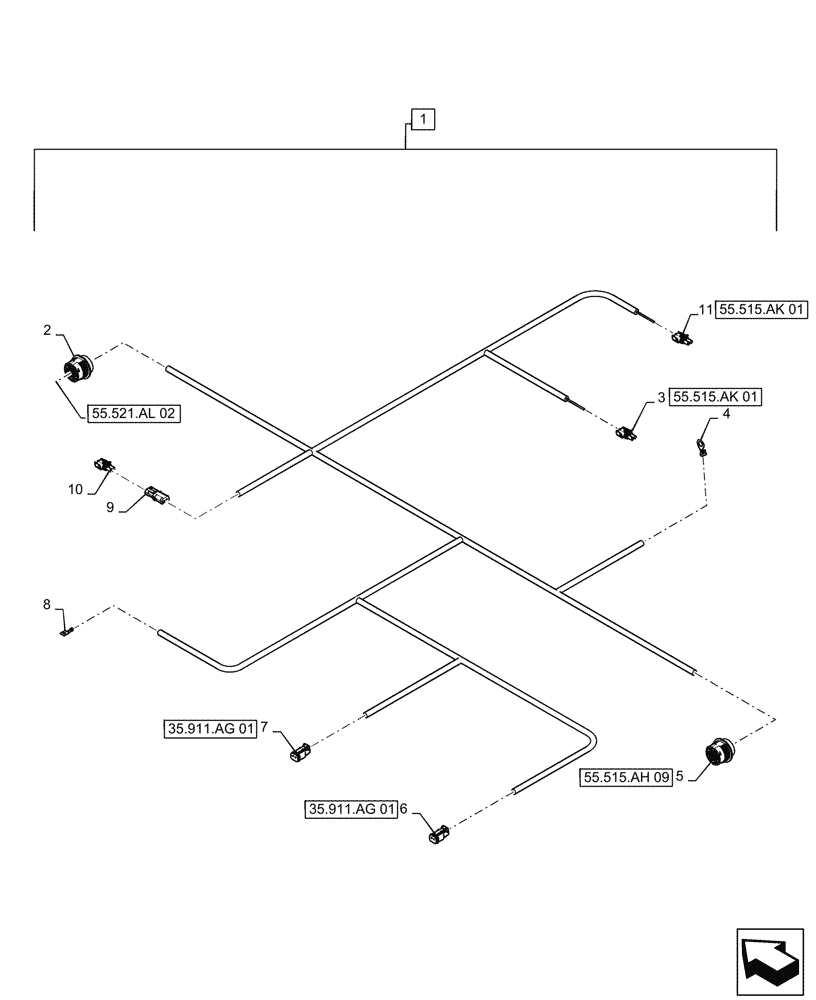

Схема запчастей Case IH PATRIOT 2250 - (55.515.AH[10]) - HYDRAULIC CONTROL FRAME HARNESS (55) - ELECTRICAL SYSTEMS
55.521.al 02
3
11
9
2
5
6
4
1
10
8
7
35.911.ag 01
35.911.ag 01
55.515.ah 09
55.515.ak 01
55.515.ak 01

Артикул

Название

Примечание

Количество

1

47655309

WIRE HARNESS

Assy, Hydraulic Control, Frame, Incl 2 - 11

1шт.

2

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

XB-4F, 31 Cavity, Hydraulic Bulkhead

1шт.

2

84068583

PLUG,12 - 16 Ga, White

XB-4F, Sealing, White, Hydraulic Bulkhead

7шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

XB-4F, Nickel, Solid, Hydraulic Bulkhead

21шт.

2

87695618

TERMINAL

XB-4F, Female, Nickel, Solid, Hydraulic Bulkhead

3шт.

3

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-428M, Sensor, LH/AntiLift

1шт.

3

87689643

CLIP,4.8mm ID

X-428M, Sensor, LH/AntiLift

1шт.

3

84182584

TERMINAL

X-428M, Sensor, LH/AntiLift

3шт.

3

84552243

SEAL

X-428M, Sensor, LH/AntiLift

3шт.

4

84140737

TERMINAL CONNECTOR

G1-HF, Ring, Tin, M10, Chassis Ground

1шт.

5

87696944

ELEC CONNECTOR,Female, 31 Pole

XB-40F, Hydraulic Frame Interface

1шт.

5

87271930

NUT

XB-40F, Plastic Panel, Hydraulic Frame Interface

1шт.

5

84068583

PLUG,12 - 16 Ga, White

XB-40F, Sealing, White, Hydraulic Frame Interface

3шт.

5

87695618

TERMINAL

XB-40F, Female, Nickel, Solid, Hydraulic Frame Interface

4шт.

5

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

XB-40F, Nickel, Solid, Frame Interface

24шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

X-415F, Boom Down

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

X-415F, Wedge Lock, Boom Down

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-415F, Female, Nickel, Stamped, Boom Down

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

X-412F, Boom Up

1шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

X-412F, Wedge Lock, Boom Up

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-412F, Female, Nickel, Stamped, Boom Up

2шт.

8

84382955

TERMINAL CONNECTOR,Tin, 2.50 - 4.00mm

PD5, Ring, M5, Battery Power

1шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-413M, Acc Power

1шт.

9

87692882

ELEC. TERMINAL PIN

X-413M, Male, Tin, Acc Power

2шт.

9

87680701

SEAL

X-413M, Green, Acc Power

2шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

X-413F, 2 Way, Cap

1шт.

10

87686742

PLUG

X-413F, Cavity, Green, Cap

2шт.

11

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-429M, Sensor, RH/AntiLift

1шт.

11

87689643

CLIP,4.8mm ID

X-429M, Sensor, RH/AntiLift

1шт.

11

84182584

TERMINAL

X-429M, Sensor, RH/AntiLift

3шт.

11

84552243

SEAL

X-429M, Sensor, RH/AntiLift

3шт.

Выбрано товаров: 31
