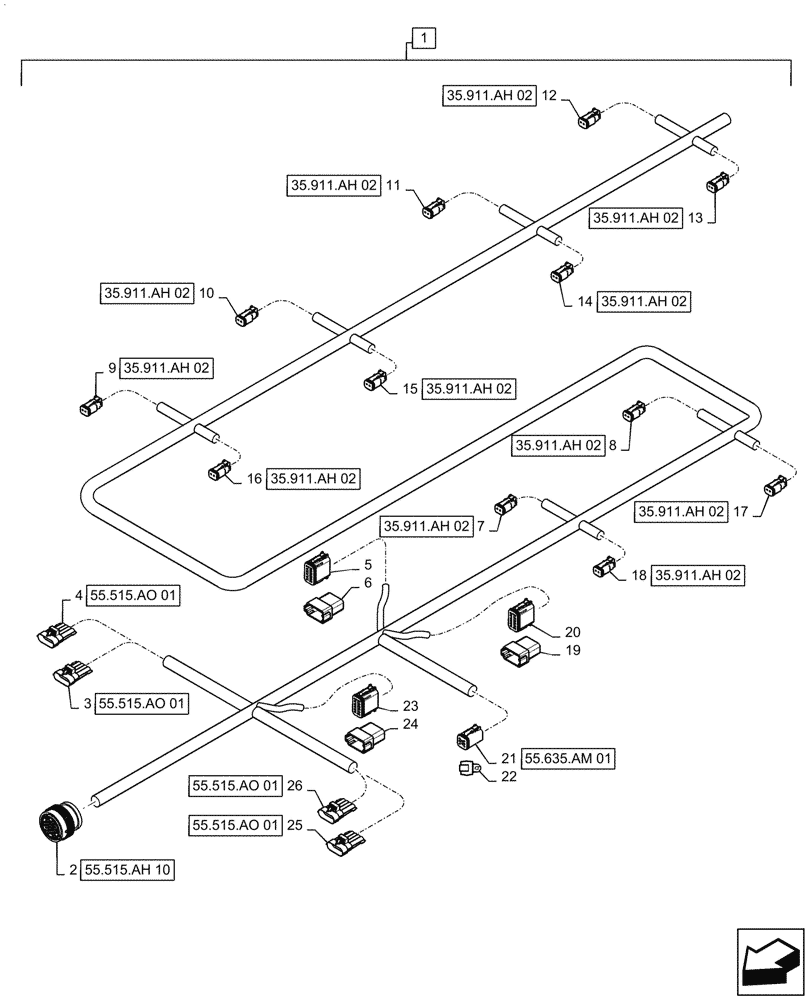

Запчасти Case IH PATRIOT 2250 (55.515.AH[09]) - HYDRAULIC CONTROL, CENTER SECTION HARNESS (55) - ELECTRICAL SYSTEMS

1

47547022

WIRE HARNESS

Assy, Hydraulic Control, Center Section, Incl 2 - 26

1шт.

2

87696949

ELEC CONNECTOR

XB-40M, Male, 31 Cavity, Interface

1шт.

2

87695652

PLUG,12 - 16 Ga, White

XB-40M, Sealing, Interface

7шт.

3

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-426M, Male, 4 Cavity, RH Rear Auto Centering Mag Switch

1шт.

3

87689636

PLUG,Red, Taxi Seal Connector Cavity

X-426M, Cavity, RH Rear Auto Centering Mag Switch

1шт.

3

87689643

CLIP,4.8mm ID

X-426M, Secondary Lock, Black, RH Rear Auto Centering Mag Switch

1шт.

4

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-424M, Male, 4 Cavity, RH Front Auto Centering Mag Switch

1шт.

4

87689636

PLUG,Red, Taxi Seal Connector Cavity

X-424M, Cavity, RH Front Auto Centering Mag Switch

1шт.

4

87689643

CLIP,4.8mm ID

X-424M, Secondary Lock, Black, RH Front Auto Centering Mag Switch

1шт.

5

87695592

CONTACT HOUSING,Female, 12 Pole

X-456F Ground Splice

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-456F, Female, Nickel, Stamped, Ground Splice

7шт.

5

87695652

PLUG,12 - 16 Ga, White

X-456F Ground Splice

5шт.

5

87695651

LOCKING TAB,Wedge Lock

X-456F, Lock, Ground Splice

1шт.

6

87269436

SOCKET/RECEPTACLE

SP456, Splice Pack

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

X-401F, LH Boom Fold In

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-401F, Female, Nickel, Stamped, LH Boom Fold In

2шт.

7

87695649

ELEC CONNECTOR,Locking, Green

X-401F, Wedge, LH Boom Fold In

1шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

X-407F, LH Level Up

1шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-407F, Female, Nickel, Stamped, LH Level Up

2шт.

8

87695649

ELEC CONNECTOR,Locking, Green

X-407F, Wedge, LH Level Up

1шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

X-410F, LH Tip Fold In

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-410F, Female, Nickel, Stamped, LH Tip Fold In

2шт.

9

87695649

ELEC CONNECTOR,Locking, Green

X-410F, Wedge, LH Tip Fold In

1шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

X-408F, RH Tip Fold In

1шт.

10

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-408F, Female, Nickel, Stamped, RH Tip Fold In

2шт.

10

87695649

ELEC CONNECTOR,Locking, Green

X-408F, Wedge, RH Tip Fold In

1шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

X-405F, RH Level Up

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-405F, Female, Nickel, Stamped, RH Level Up

2шт.

11

87695649

ELEC CONNECTOR,Locking, Green

X-405F, Wedge, RH Level Up

1шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

X-403F, RH Boom Fold In

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-403F, Female, Nickel, Stamped, RH Boom Fold In

2шт.

12

87695649

ELEC CONNECTOR,Locking, Green

X-403F, Wedge, RH Boom Fold In

1шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

X-402F, RH Boom Fold Out

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-402F, Female, Nickel, Stamped, RH Boom Fold Out

2шт.

13

87695649

ELEC CONNECTOR,Locking, Green

X-402F, Wedge, RH Boom Fold Out

1шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

X-404F, RH Level Down

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-404F, Female, Nickel, Stamped, RH Level Down

2шт.

14

87695649

ELEC CONNECTOR,Locking, Green

X-404F, Wedge, RH Level Down

1шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

X-409, RH Tip Fold Out

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-409, Female, Nickel, Stamped, RH Tip Fold Out

2шт.

15

87695649

ELEC CONNECTOR,Locking, Green

X-409, Wedge, RH Tip Fold Out

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

X-411F, LH Tip Fold Out

1шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-411F, Female, Nickel, Stamped, LH Tip Fold Out

2шт.

16

87695649

ELEC CONNECTOR,Locking, Green

X-411F, Wedge, LH Tip Fold Out

1шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

X-406F, LH Level Down

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-406F, Female, Nickel, Stamped, LH Level Down

2шт.

17

87695649

ELEC CONNECTOR,Locking, Green

X-406F, Wedge, LH Level Down

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

X-400F, LH Boom Fold Out

1шт.

18

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-400F, Female, Nickel, Stamped, LH Boom Fold Out

2шт.

18

87695649

ELEC CONNECTOR,Locking, Green

X-400F, Wedge, LH Boom Fold Out

1шт.

19

87269436

SOCKET/RECEPTACLE

SP455 Splice Pack

1шт.

20

87695592

CONTACT HOUSING,Female, 12 Pole

X-455F Ground Splice

1шт.

20

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-455F, Female, Nickel, Stamped, Ground Splice

11шт.

20

87695651

LOCKING TAB,Wedge Lock

X-455F, Lock, Ground Splice

1шт.

20

87695652

PLUG,12 - 16 Ga, White

X-455F, Cavity, Ground Splice

1шт.

21

87694112

ELEC CONNECTOR,Female, 6 Pole

X-422F, AIM Command Interface

1шт.

21

87694150

LOCKING TAB,Wedge Lock

X-422F, Lock, AIM Command Interface

1шт.

22

84391167

CAP

P422, Cap for, AIM Command Interface

1шт.

23

87695592

CONTACT HOUSING,Female, 12 Pole

X-659, Splice Pack

1шт.

23

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-659, Female, Nickel, Stamped, Splice Pack

4шт.

23

87695651

LOCKING TAB,Wedge Lock

X-659, Lock, Splice Pack

1шт.

23

87695652

PLUG,12 - 16 Ga, White

X-659, Cavity, Splice Pack

1шт.

24

87587629

ELEC CONNECTOR

SP569, Splice Pack

1шт.

25

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-425M, Male, 4 Cavity, LH Front Auto Centering Mag Switch

1шт.

25

87689636

PLUG,Red, Taxi Seal Connector Cavity

X-425M, Cavity, LH Front Auto Centering Mag Switch

1шт.

25

87689643

CLIP,4.8mm ID

X-425M, Secondary Lock, Black, LH Front Auto Centering Mag Switch

1шт.

26

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-427M, Male, 4 Cavity, LH Rear Auto Centering Mag Switch

1шт.

26

87689636

PLUG,Red, Taxi Seal Connector Cavity

X-427M, Cavity, LH Rear Auto Centering Mag Switch

1шт.

26

87689643

CLIP,4.8mm ID

X-427M, Secondary Lock, Black, LH Rear Auto Centering Mag Switch

1шт.
