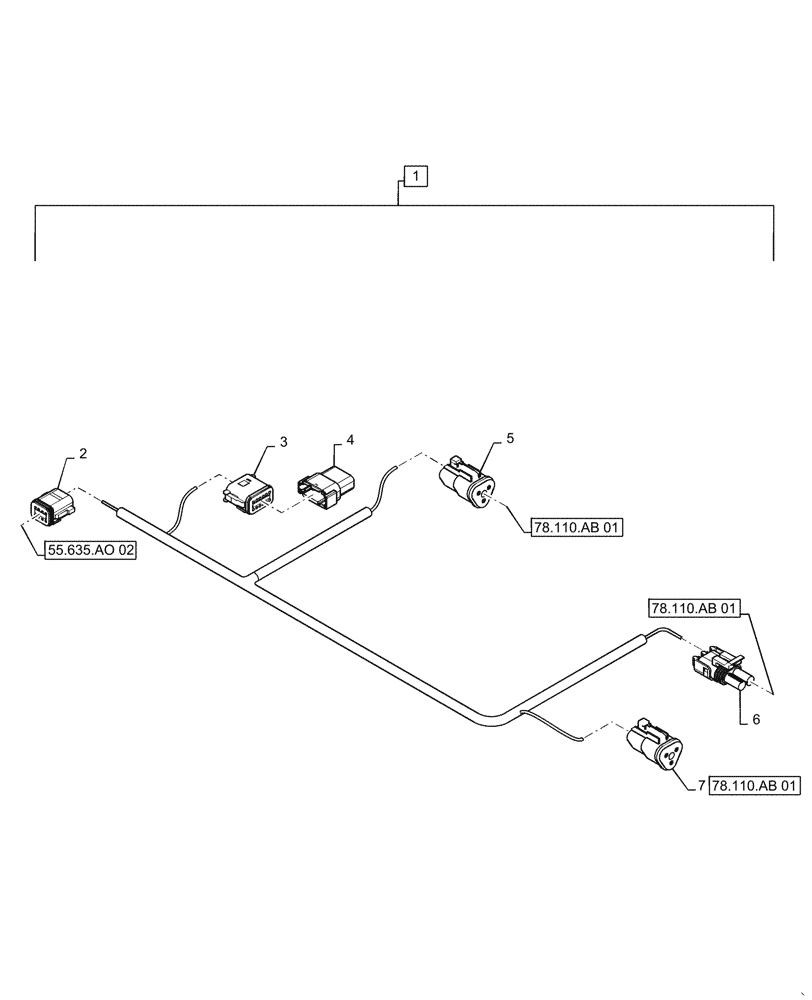

Запчасти Case IH PATRIOT 2250 (55.515.AH[08]) - 90, 5 SECTION, RH BOOM HARNESS (55) - ELECTRICAL SYSTEMS

1

84469601

WIRE HARNESS

Assy, Boom, Incl 2 - 7

1шт.

2

87700325

ELEC CONNECTOR,Female, 8 Cavities

X-510F2, 8 Way, Female. Interface

1шт.

2

225321C1

WEDGE

X-510F2, Wedge Lock, Interface

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-510F2, Female, Nickel, Interface

5шт.

3

87696075

ELEC CONNECTOR

X-575F2, 12 Way, Female, Ground and Power Splice

1шт.

3

87695651

LOCKING TAB,Wedge Lock

X-575F2, Lock, Ground and Power Splice

1шт.

3

84068583

PLUG,12 - 16 Ga, White

X-575F2, Sealing, Ground and Power Splice

5шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-575F2, Female, Nickel, Ground and Power Splice

8шт.

4

87381540

ELEC CONNECTOR

X-578, 12 Way, Splice Pack

1шт.

5

87695580

ELEC CONNECTOR,Female, 3 Pole

X-560F2, Section

1шт.

5

87695646

WEDGE

X-560F2, Lock, Section

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-560F2, Female, Nickel, Section

3шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

X-574F2, Fencerow

1шт.

6

BN16174

DIODE,600V, 3A

3A

1шт.

6

87692882

ELEC. TERMINAL PIN

X-574F2, Male, Tin, Fencerow

2шт.

6

87680710

SEAL

X-574F2, Gray, Fencerow

2шт.

7

87695580

ELEC CONNECTOR,Female, 3 Pole

X-561F2, Section

1шт.

7

87695646

WEDGE

X-561F2, Lock, Section

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-561F2, Female, Nickel, Section

3шт.
