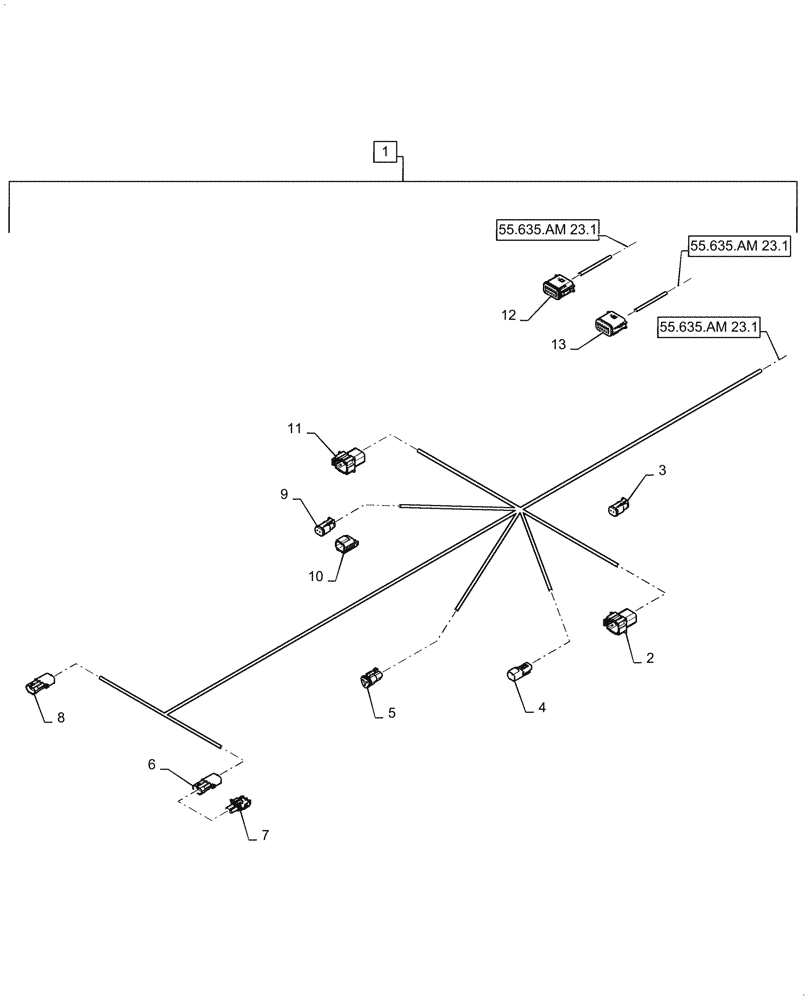

Запчасти Case IH PATRIOT 2250 (55.515.AH[07.2]) - PRODUCT CONTROL HARNESS, CENTER, BACK HALF, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

47984271

WIRE HARNESS

Product Control, Complete, Incl 2 -

1шт.

2

87700321

ELEC CONNECTOR,Female, 8 Cavities

8 Way, Male, RH Boom, X-510M

1шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

RH Boom, X-510M

3шт.

2

87695623

ELEC. TERMINAL PIN

Male, RH Boom, X-510M

5шт.

2

84806919

PLUG,Wedge Lock

Wedge Lock, RH Boom, X-510M

1шт.

3

87695584

CONTACT HOUSING,Male, 2 Cavities

RH Boom, Sect 7, X-511M

1шт.

3

87695623

ELEC. TERMINAL PIN

Male, RH Boom, Sect 7, X-511M

1шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavity, RH Boom Sect 7, X-511M

1шт.

3

86500166

ELEC CONNECTOR

Wedge Lock, RH Boom Sect 7, X-511M

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Cap, RH Boom Sect 7, X-511F1

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Cavity, RH Boom Sect 7, X-511F1

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

RH Boom Sect 7, X-511F1

1шт.

5

87695549

ELEC CONNECTOR,Female, 3 Cavities

3 Way, Female, Boom PSI Sensor, X-515F

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Boom PSI Sensor, X-515F

3шт.

5

84058193

LOCKING TAB,Wedge Lock

Wedge Lock, Boom PSI Sensor, X-515F

1шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Boom PSI Switch, X-516M

1шт.

6

87692880

CABLE TERMINAL

Male, Boom PSI Switch, X-516M

2шт.

6

84286327

SEAL

Cable, Green, Boom PSI Switch, X-516M

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Boom PSI Shorting Cap, X-516F

1шт.

7

87692856

CABLE TERMINAL

Female, Boom PSI Shorting Cap, X-516F

2шт.

8

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Boom PSI Switch, X-514M

1шт.

8

87692880

CABLE TERMINAL

Male, Boom PSI Switch, X-514M

2шт.

8

84286327

SEAL

Cable, Green, Boom PSI Switch, X-514M

2шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

Foam Air, X-416F

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Foam Air, X-416F

2шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

Foam Air, X-416F

1шт.

10

84391159

WIRE CONNECTOR

Dust, Foam Air, X-416F

1шт.

11

87700321

ELEC CONNECTOR,Female, 8 Cavities

8 Way, Male, LH Boom, X-509M

1шт.

11

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

LH Boom, X-509M

3шт.

11

87695623

ELEC. TERMINAL PIN

LH Boom, X-509M

5шт.

11

84806919

PLUG,Wedge Lock

Wedge Lock, LH Boom, X-509M

1шт.

12

225465C1

CONNECTOR, ELEC

12 Way, Female, Product Node 2, X-553F

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product Node 2, X-553F

7шт.

12

84068583

PLUG,12 - 16 Ga, White

Cavity, Product Node 2, X-553F

5шт.

12

87695651

LOCKING TAB,Wedge Lock

Lock, Product Node 2, X-553F

1шт.

13

87696130

ELEC CONNECTOR,Female, 12 Cavities

12 Way, Female, Product Node 2, X-552F

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product Node 2, X-552F

8шт.

13

84068583

PLUG,12 - 16 Ga, White

Cavity, Product Node 2, X-552F

4шт.

13

87695651

LOCKING TAB,Wedge Lock

Lock, Product Node 2, X-552F

1шт.
