Запчасти Case IH PATRIOT 2250 (55.515.AH[07.1]) - PRODUCT CONTROL HARNESS, CENTER, FRONT HALF, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

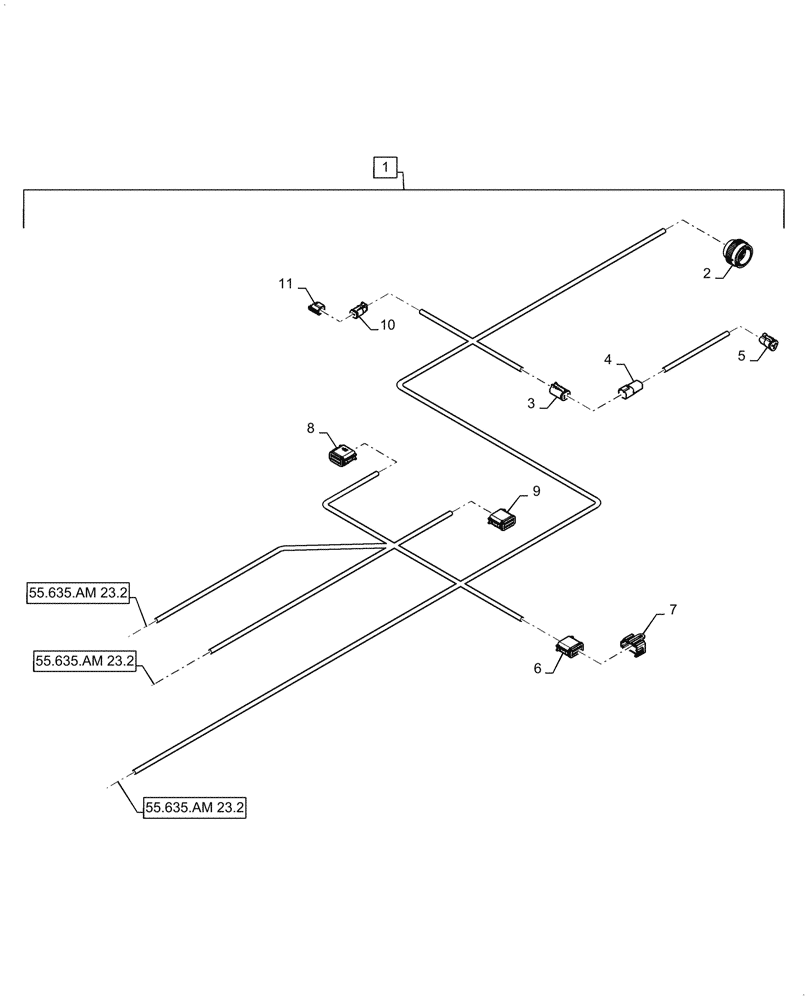

Схема запчастей Case IH PATRIOT 2250 - (55.515.AH[07.1]) - PRODUCT CONTROL HARNESS, CENTER, FRONT HALF, ASN YGT044000 (55) - ELECTRICAL SYSTEMS
55.635.am 23.2
10
2
8
4
55.635.am 23.2
11
1
5
55.635.am 23.2
9
6
3
7

Артикул

Название

Примечание

Количество

1

47984271

WIRE HARNESS

Product Control, Complete, Incl 2 - 11

1шт.

See 55.635.AM 23.2 For Back Half Details

1шт.

2

84177901

ELEC CONNECTOR

31 Pin, Bulkhead, Product Interface, XB-22M

1шт.

2

87695623

ELEC. TERMINAL PIN

Size 16, Product Interface, XB-22M

18шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Product Interface, XB-22M

6шт.

2

84807680

PLUG

Sealing, Red, Product Interface, XB-22M

7шт.

3

87694153

CONTACT HOUSING,Female, 4 Cavities

Canbuss Interface, X-210F

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Canbuss Interface, X-210F

4шт.

3

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, Canbuss Interface, X-210F

1шт.

4

87694154

CONTACT HOUSING,Male, 4 Pole

Canbuss Interface, X-210M

1шт.

4

87695623

ELEC. TERMINAL PIN

Size 16, Canbuss Interface, X-210M

4шт.

4

87694145

ELEC CONNECTOR

Wedge Lock, Canbuss Interface, X-210M

1шт.

5

87695580

ELEC CONNECTOR,Female, 3 Pole

Terminator Interface, X-210A

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Terminator Interface, X-210A

3шт.

5

84058092

CONTACT HOUSING,120 Ohm Resistor

Terminator Interface, X-210A

1шт.

5

84147090

LOCKING TAB,Wedge Lock

Lock, Terminator Interface, X-210A

1шт.

6

87710838

MULTIPOLE CONNECTOR

12 Way, Female, Aim Command Flex Interface, X-556F

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Aim Command Flex Interface, X-556F

10шт.

6

84068583

PLUG,12 - 16 Ga, White

Cavity, Aim Command Flex Interface, X-556F

2шт.

7

84391169

CAP,Male, 2 Pins

Dust Cap, Aim Command Flex Interface, X-556F

1шт.

8

87695550

ELEC CONNECTOR,Female, 12 Cavities

12 Way, Female, Product Node 2, X-554F

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product Node 2, X-554F

7шт.

8

84068583

PLUG,12 - 16 Ga, White

Cavity, Product Node 2, X-554F

5шт.

8

87695651

LOCKING TAB,Wedge Lock

Lock, Product Node 2, X-554F

1шт.

9

87695592

CONTACT HOUSING,Female, 12 Pole

Product Node 2, X-555F

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product Node 2, X-555F

5шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Product Node 2, X-555F

4шт.

9

84068583

PLUG,12 - 16 Ga, White

Cavity, Product Node 2, X-555F

3шт.

9

87695651

LOCKING TAB,Wedge Lock

Lock, Product Node 2, X-555F

1шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

Control Power, X-501F

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Control Power, X-501F

2шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

Control Power, X-501F

1шт.

11

84391159

WIRE CONNECTOR

Dust Cap, Control Power, X-501F

1шт.

Выбрано товаров: 33
