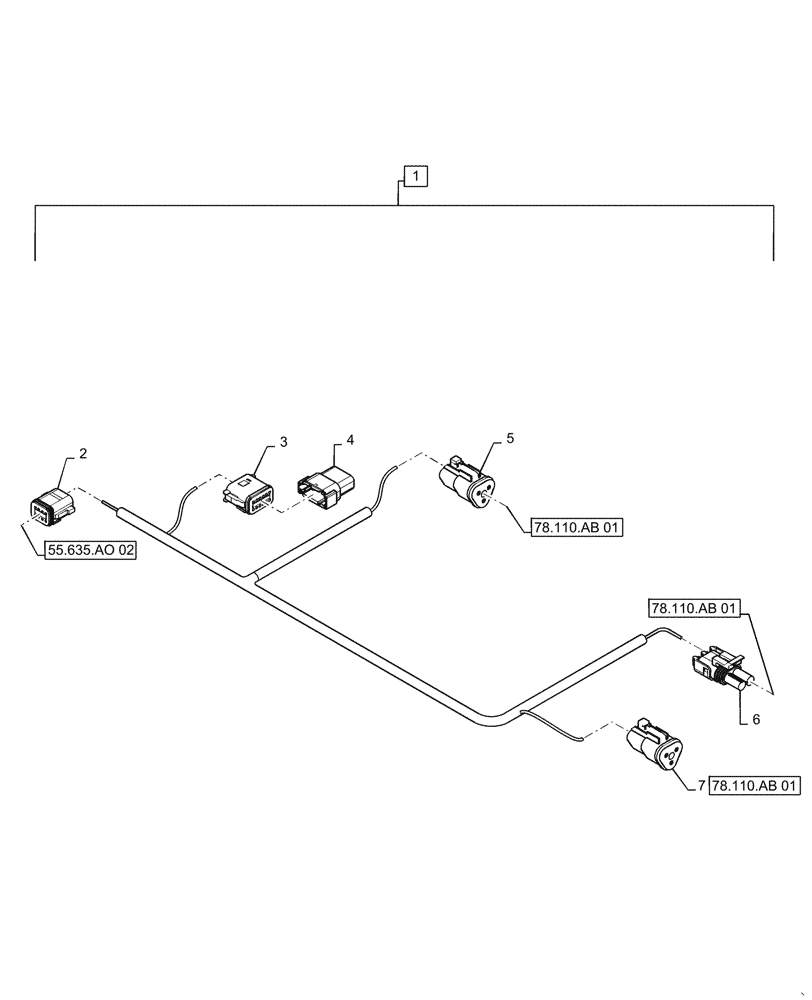

Запчасти Case IH PATRIOT 2250 (55.515.AH[06]) - 80, 5 SECTION, RH, BOOM HARNESS (55) - ELECTRICAL SYSTEMS

1

84469597

WIRE HARNESS

Boom, Incl 2 - 7

1шт.

2

87700325

ELEC CONNECTOR,Female, 8 Cavities

8 Way, Interface, X-510F2

1шт.

2

225321C1

WEDGE

Wedge Lock, Interface, X-510F2

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, Interface, X-510F2

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Interface, X-510F2

5шт.

3

87696075

ELEC CONNECTOR

12 Way, Ground And Power Splice, X-575F2

1шт.

3

87695651

LOCKING TAB,Wedge Lock

Lock, Ground And Power Splice, X-575F2

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Ground And Power Splice, X-575F2

8шт.

4

87381540

ELEC CONNECTOR

12 Way, Splice Pack, X-578

1шт.

5

87695580

ELEC CONNECTOR,Female, 3 Pole

Section, X-560F2

1шт.

5

87695646

WEDGE

Lock, Section, X-560F2

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Section, X-560F2

3шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

Fencerow, X-574F2

1шт.

6

BN16174

DIODE,600V, 3A

3A

1шт.

6

87692882

ELEC. TERMINAL PIN

Male, Tin, Fencerow, X-574F2

2шт.

7

87695580

ELEC CONNECTOR,Female, 3 Pole

Section, X-561F2

1шт.

7

87695646

WEDGE

Lock, Section, X-561F2

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Section, X-561F2

3шт.
