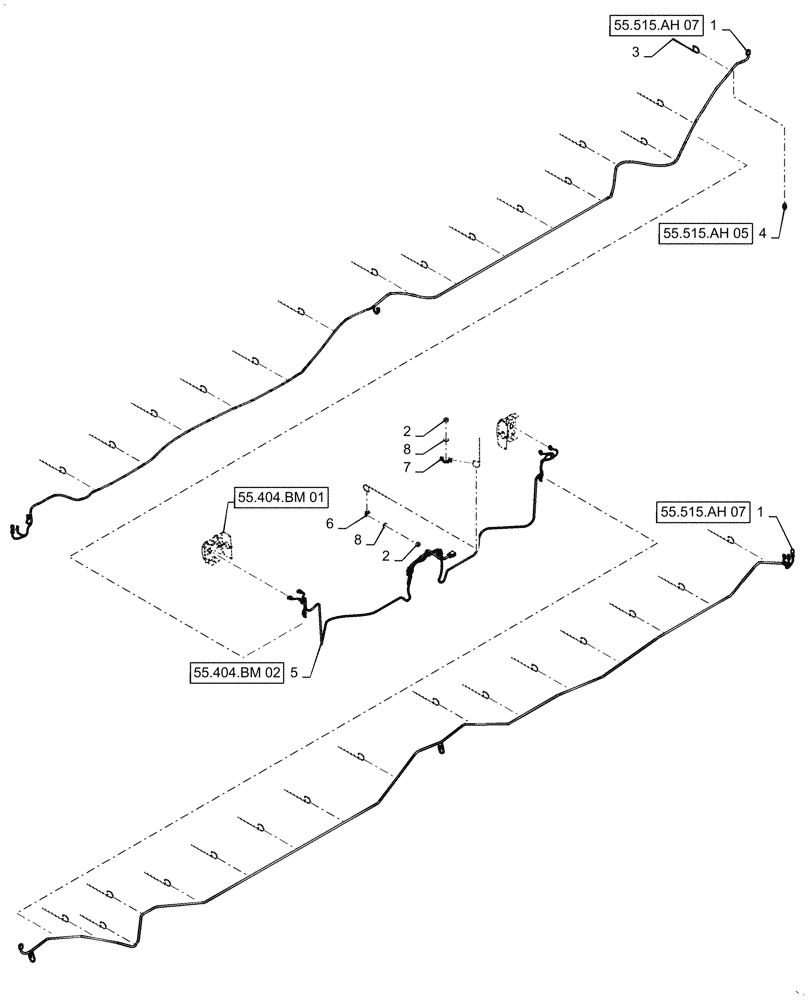

Запчасти Case IH PATRIOT 2250 (55.515.AH[04]) - 90 BOOM ELECTRICAL, 6 SECTION (55) - ELECTRICAL SYSTEMS

1

84469599

WIRE HARNESS

Assy, Boom, LH and RH

2шт.

See 55.515.AH 07 For Service

1шт.

2

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

14шт.

3

BN570007

STRAP

Zip Tie

50шт.

4

86986400

SWITCH

Pressure

2шт.

See 55.515.AH 05 For Service

1шт.

5

47750805

WIRE HARNESS

Assy, Rear Light Extension

1шт.

See 55.404.BM 02 For Service

1шт.

6

84407295

BASE

M8 Base Tie

10шт.

7

84360209

BASE

Tie

4шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

14шт.
