Запчасти Case IH PATRIOT 2250 (55.515.AH[03.1]) - 90 BOOM ELECTRICAL, 5 SECTION, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

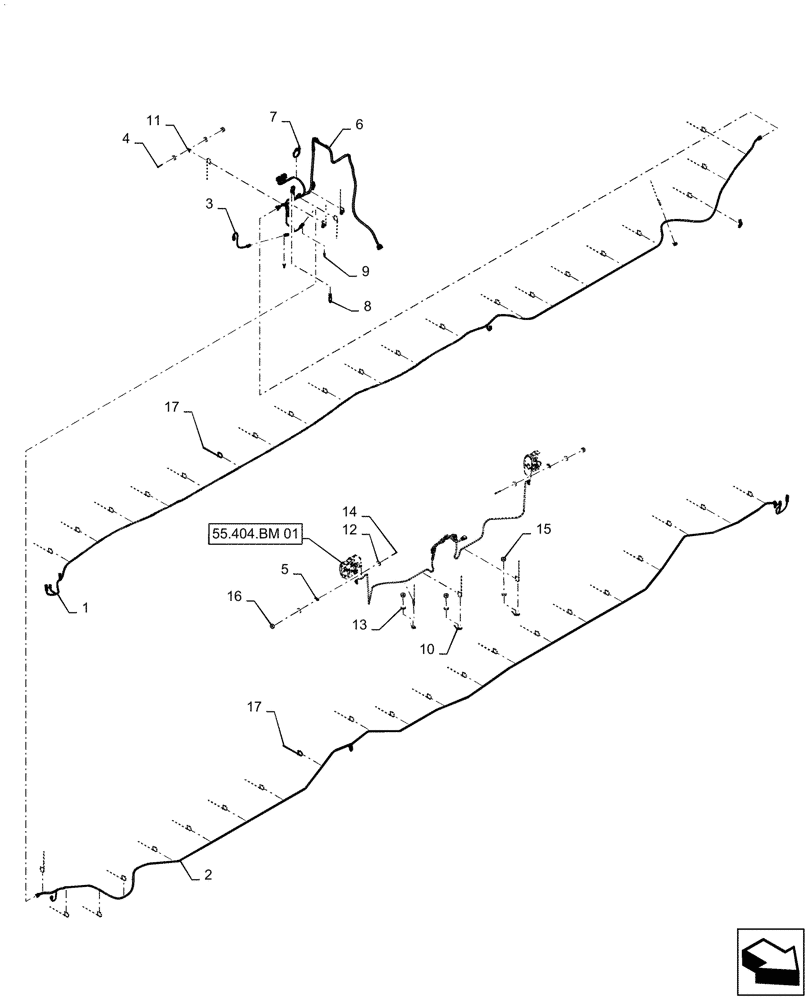

Схема запчастей Case IH PATRIOT 2250 - (55.515.AH[03.1]) - 90 BOOM ELECTRICAL, 5 SECTION, ASN YGT044000 (55) - ELECTRICAL SYSTEMS
55.404.bm 01
14
11
17
8
1
2
4
16
13
5
12
17
6
7
9
15
3
10

Артикул

Название

Примечание

Количество

1

84469601

WIRE HARNESS

Assy, RH, 5 Section

1шт.

See 55.515.AH 09 For Service Parts

1шт.

2

84469599

WIRE HARNESS

Assy, LH, 5 Section

1шт.

See 55.515.AH 08 For Service Parts

1шт.

3

86986400

SWITCH

Pressure

1шт.

See 55.515.AH 05 For Service Parts

1шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

DOR

3шт.

5

48017128

BASE PLATE

Axial Mount Base Tie

2шт.

6

47984271

WIRE HARNESS

Center, Product Control

1шт.

See 55.515.AH 07.1 For Service Parts

1шт.

7

84551467

CABLE TIE,381mm L

1шт.

8

47995115

SENSOR

Pressure

1шт.

9

86017581

FASTENER

Clamping Clip

2шт.

10

84360209

BASE

Tie

9шт.

11

84474186

BASE

Tie

17шт.

12

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

13

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

14шт.

14

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

26шт.

16

87698779

NUT

M6, DOR

2шт.

17

BN570007

STRAP

Zip Tie

59шт.

Выбрано товаров: 21
