(55.515.AH[03]) - 90 BOOM ELECTRICAL, 5 SECTION, BSN YGT044001

Запчасти Case IH PATRIOT 2250 (55.515.AH[03]) - 90 BOOM ELECTRICAL, 5 SECTION, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

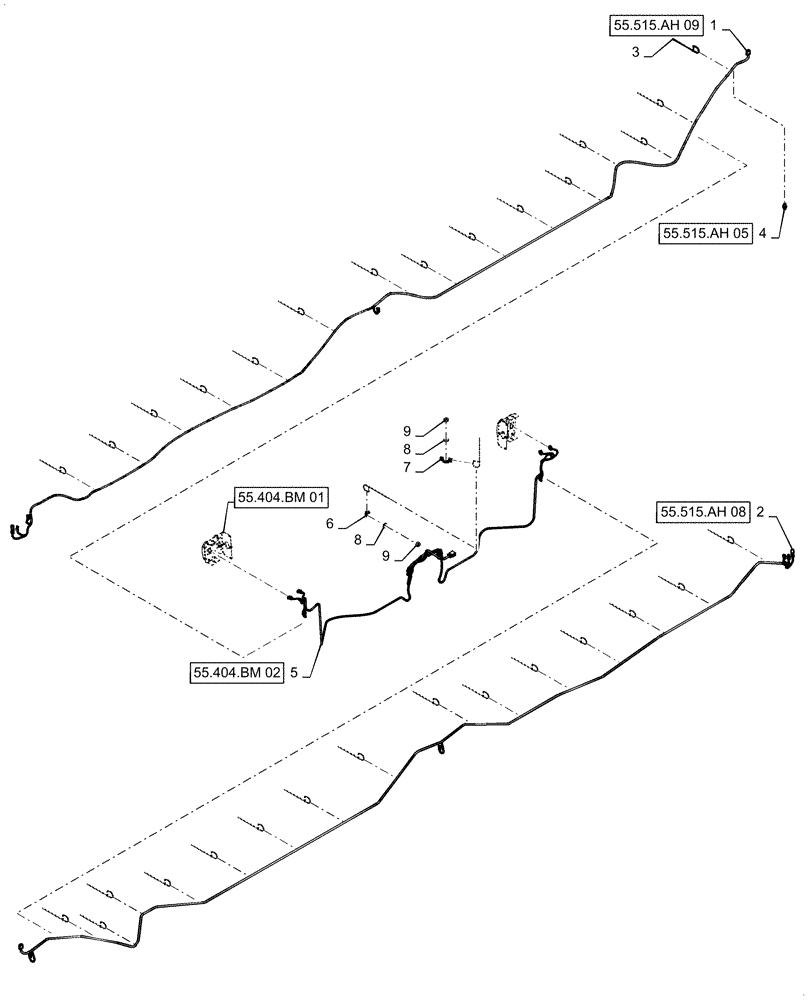

Схема запчастей Case IH PATRIOT 2250 - (55.515.AH[03]) - 90 BOOM ELECTRICAL, 5 SECTION, BSN YGT044001 (55) - ELECTRICAL SYSTEMS
55.404.bm 01
8
3
5
4
6
1
9
2
8
7
9
55.515.ah 08
55.515.ah 05
55.404.bm 02
55.515.ah 09
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84469601

WIRE HARNESS

Assy, RH, 5 Section

1шт.

See 55.515.AH 09 For Service Parts

1шт.

2

84469599

WIRE HARNESS

Assy, LH, 5 Section

1шт.

See 55.515.AH 08 For Service Parts

1шт.

3

BN570007

STRAP

Zip Tie

59шт.

4

86986400

SWITCH

Pressure

1шт.

See 55.515.AH 05 For Service Parts

1шт.

5

47750805

WIRE HARNESS

Assy, Rear Light Extension

1шт.

6

84407295

BASE

Tie

10шт.

7

84360209

BASE

Tie

4шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

14шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

14шт.
