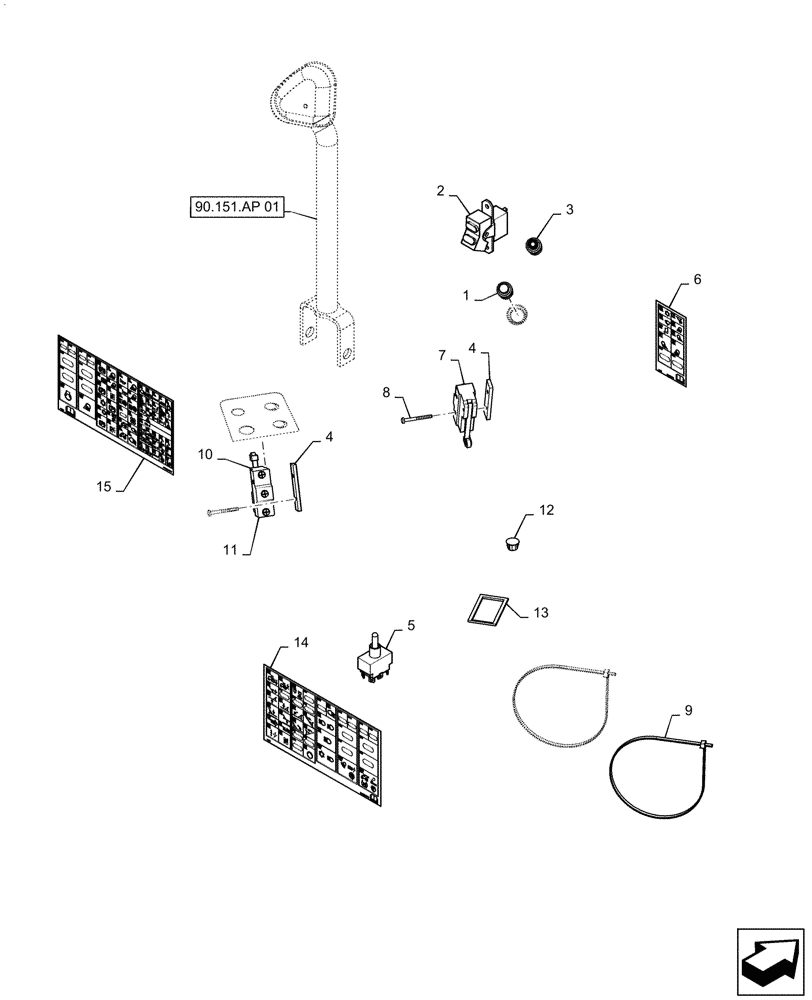

Запчасти Case IH PATRIOT 2250 (55.512.CS[02]) - PROPEL HANDEL SWITCHES & CAB DECALS (55) - ELECTRICAL SYSTEMS

1

87271265

PUSH BUTTON SWITCH

Propulsion Handle, Spray Boom, On / Off

1шт.

2

118685A1

SWITCH

Propulsion Handle, Center Boom Height, Rocker

1шт.

3

BN324896

SWITCH

Propulsion Handle, LH / RH Boom Position Control

2шт.

4

87492830

PLATE

Prop Switch Mount

2шт.

5

BN323620

SWITCH

Axle In / Out

1шт.

6

47440047

DECAL

RH, Relay and Fuse Box

1шт.

7

BN323496

TOGGLE SWITCH

Neutral Safety

1шт.

8

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

9

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

10

BN323495

ADAPTER

Reverse

1шт.

11

141655A1

SWITCH

Reverse

1шт.

12

282056A1

PLUG

Blanking

1шт.

13

BN325825

SPACER

Switch

6шт.

14

84588825

DECAL

Rear Relay and Fuse Box

1шт.

15

84588826

DECAL

LH, Relay and Fuse Box

1шт.
