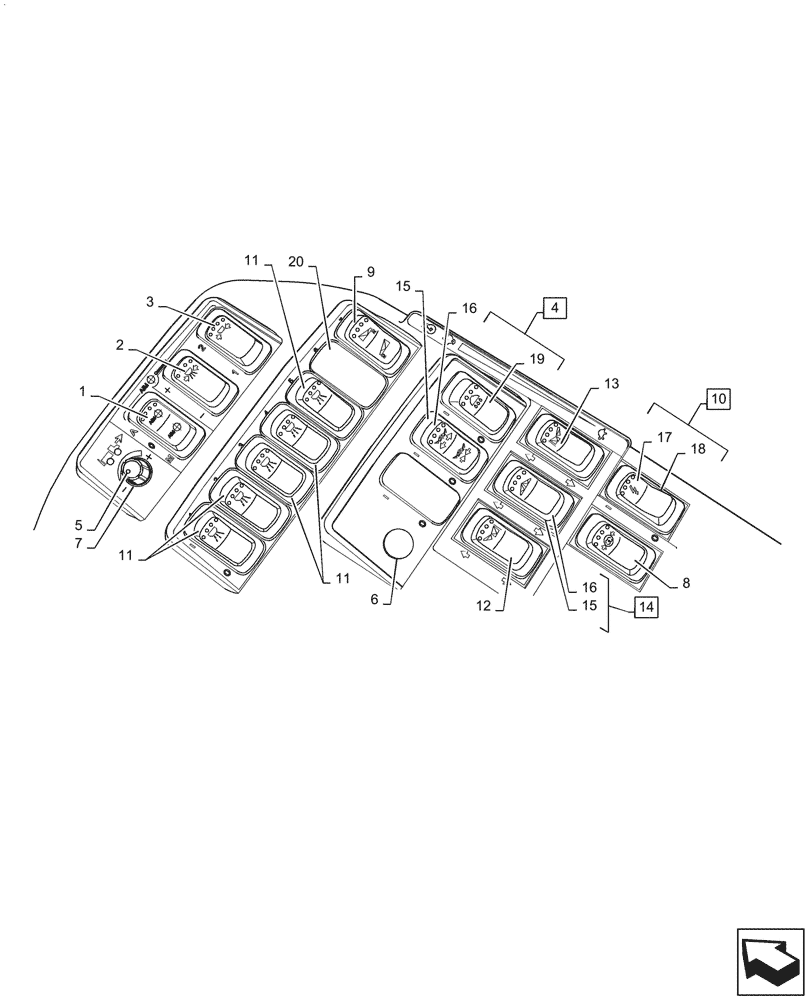

Запчасти Case IH PATRIOT 2250 (55.512.CS[01]) - ARMREST SWITCH LAYOUT (55) - ELECTRICAL SYSTEMS

1

BN322921

SWITCH

Aim Command, On, Off

1шт.

2

BN321908

SWITCH

Aim Command, Pressure Adjustment

1шт.

3

BN321909

PRESSURE SWITCH

Aim Command, Pressure Point Toggle

1шт.

4

47783301

ROCKER SWITCH

Foamer, On, Off, Incl 19

1шт.

5

342794A1

KNOB

Ground Speed

1шт.

6

282056A1

PLUG

Blanking

1шт.

7

BN325192

SWITCH

Ground Speed, 4 Position

1шт.

8

BN321916

SWITCH

Sparge Pressure

1шт.

9

BN321911

SWITCH

Fence Row

1шт.

10

84541429

SWITCH

Main Power, Incl 17, 18

1шт.

11

BN321910

SWITCH

Boom Sections, On, Off

6шт.

12

BN321913

SWITCH

Boom Fold, Left Hand

1шт.

13

BN321915

SWITCH

Boom Fold Right Hand

1шт.

14

87397313

SWITCH

One Touch Fold, Incl 15, 16

1шт.

15

BN322908

SWITCH

3 Position, Boom Fold

1шт.

16

87397318

SWITCH

Rocker Cover for Boom Fold Switch

1шт.

17

BN325000

SWITCH

Rocker Cover for Main Power

1шт.

18

87388415

SWITCH

3 Position, Main Power

1шт.

19

BN322902

ROCKER SWITCH

Rocker Cover for Foamer

1шт.

20

BN322626

PLUG

Blanking Plug for Unused Switches

1шт.
