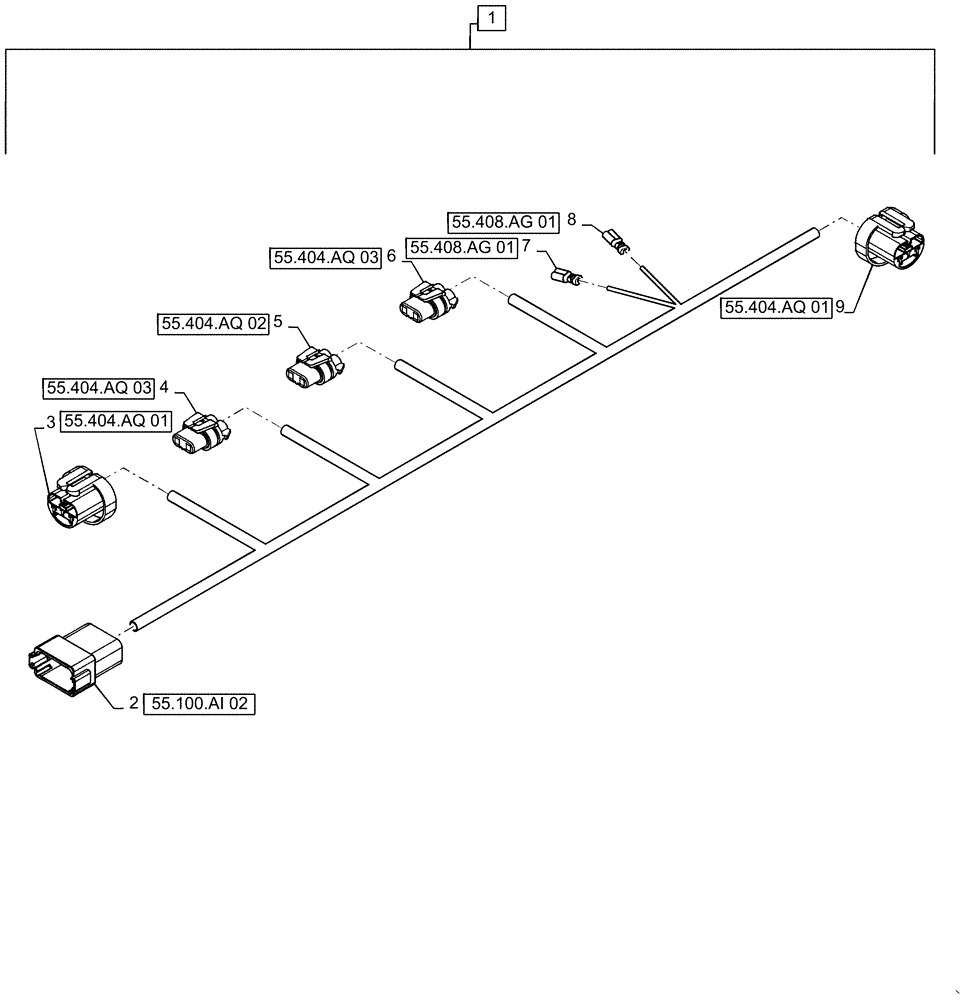

Запчасти Case IH PATRIOT 2250 (55.511.AC[01]) - HOOD LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

1

47674105

WIRE HARNESS

Assy, Hood Lights, Incl 2 - 9

1шт.

2

87695724

ELEC CONNECTOR,Male, 12 Pole

X-640M, Headlight Interface

1шт.

2

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-640M, Wedge Lock, Headlight Interface

1шт.

2

84068583

PLUG,12 - 16 Ga, White

X-640M, Cavity, Headlight Interface

2шт.

3

87697641

ELEC CONNECTOR

X-622F, 3 Way, Female, LH Headlight

1шт.

3

87705072

RETAINER

X-622F, Wedge Lock, LH Headlight

1шт.

3

84364573

SEAL

X-622F, Cavity, LH Headlight

1шт.

4

87686685

WIRE CONNECTOR,Female

X-623F, 2 Way, LH Worklight

1шт.

4

87686740

RETAINER

X-623F, Wedge Lock, LH Worklight

1шт.

5

87686685

WIRE CONNECTOR,Female

X-621F, 2 Way, Center Worklight

1шт.

5

87686740

RETAINER

X-621F, Wedge Lock, Center Worklight

1шт.

6

87686685

WIRE CONNECTOR,Female

X-619F, 2 Way, RH Worklight

1шт.

6

87686740

RETAINER

X-619F, Wedge Lock, RH Worklight

1шт.

7

87679990

TERMINAL,Tin, 0.75 - 2.50mm

X-616F, Female, Horn Positive

1шт.

8

87679990

TERMINAL,Tin, 0.75 - 2.50mm

X-617F, Female, Horn Negative

1шт.

9

87697641

ELEC CONNECTOR

X-620F, 3 Way, Female, RH Headlight

1шт.

9

87705072

RETAINER

X-620F, Wedge Lock, RH Headlight

1шт.

9

84364573

SEAL

X-620F, Cavity, RH Headlight

1шт.
