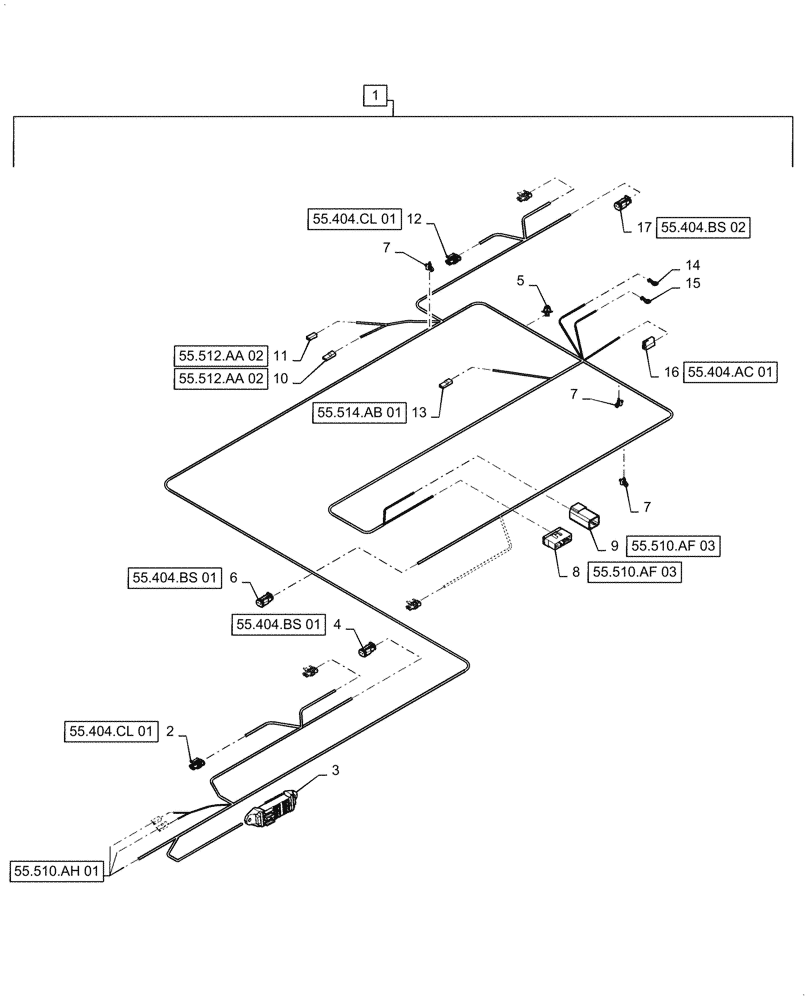

Запчасти Case IH PATRIOT 2250 (55.510.AH[02]) - ROOF HARNESS, PART II (55) - ELECTRICAL SYSTEMS

1

47788894

WIRE HARNESS

Roof Assy, Incl 2 - 17

1шт.

2

82012083

WIRE CONNECTOR,Female

C015F, RH Position & Indicator Lamp

1шт.

2

12483244

CABLE TERMINAL

C015F, RH Position & Indicator Lamp

1шт.

2

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

C015F, RH Position & Indicator Lamp

1шт.

3

87733596

FUSE BOX

FK3-A, Fuse & Relay Module

1шт.

3

84207860

LOCKING TAB

FK3-A, Fuse & Relay Module

4шт.

3

87588035

BRACKET

FK3-A, Fuse & Relay Module

2шт.

3

12483244

CABLE TERMINAL

FK3-A, Fuse & Relay Module

2шт.

3

84123443

TERMINAL

FK3-A, Fuse & Relay Module

7шт.

3

84123442

TERMINAL

FK3-A, Fuse & Relay Module

5шт.

3

84153403

TERMINAL

FK3-A, Fuse & Relay Module

2шт.

3

87697660

TERMINAL

FK3-A, Fuse & Relay Module

1шт.

3

84164964

TERMINAL

FK3-A, Fuse & Relay Module

2шт.

3

87709400

ELEC. TERMINAL PIN

FK3-A, Fuse & Relay Module

1шт.

3

84157157

RELAY,12V, 20A, Micro

Micro, Black

2шт.

3

84127703

FUSE,15A, Mini, Blue

1шт.

3

84127705

FUSE,25A, Mini, White

3шт.

3

84127702

FUSE,10A, Mini, Red

1шт.

3

84153830

FUSE,5A, Mini, Beige

1шт.

4

84122124

ELEC CONNECTOR

C17F, RH, Rear Worklamp CIH

1шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

C17F, RH, Rear Worklamp CIH

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

C17F, RH, Rear Worklamp CIH

1шт.

5

84152593

CLIP

Retaining

1шт.

6

84122124

ELEC CONNECTOR

C19F, LH, Front Worklamp CIH

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

C19F, LH, Front Worklamp CIH

1шт.

6

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

C19F, LH, Front Worklamp CIH

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

C19F, LH, Front Worklamp CIH

1шт.

7

82033028

CABLE TIE,170mm L

1шт.

8

87736513

ELEC CONNECTOR

CM8M, Main Circuit Connection

1шт.

8

84163401

CLIP

CM8M, Main Circuit Connection

1шт.

8

12483244

CABLE TERMINAL

CM8M, Main Circuit Connection

9шт.

8

87679990

TERMINAL,Tin, 0.75 - 2.50mm

CM8M, Main Circuit Connection

2шт.

8

84279935

TERMINAL

CM8M, Main Circuit Connection

3шт.

8

84279934

TERMINAL

CM8M, Main Circuit Connection

1шт.

8

82003122

CABLE TERMINAL

CM8M, Main Circuit Connection

2шт.

8

87697660

TERMINAL

CM8M, Main Circuit Connection

3шт.

9

84136444

WIRE CONNECTOR

CM7F, Main Circuit Connection

1шт.

9

19109687

INSULATOR

CM7F, Main Circuit Connection

2шт.

9

87323673

BRACKET

CM7F, Main Circuit Connection

1шт.

9

84136484

TERMINAL

CM7F, Main Circuit Connection

2шт.

10

87705127

WIRE CONNECTOR

C334F, LH, Speaker

1шт.

10

84123442

TERMINAL

C334F, LH, Speaker

1шт.

11

87691425

ELEC CONNECTOR

C331, LH, Speaker

1шт.

11

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

C331, LH, Speaker

1шт.

12

82012083

WIRE CONNECTOR,Female

C024F, LH, Position and Indicator Lamp

1шт.

12

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

C024F, LH, Position and Indicator Lamp

2шт.

12

82012084

SEAL,1.4mm ID

C024F, LH, Position and Indicator Lamp

2шт.

13

87705127

WIRE CONNECTOR

C099F, Door Switch

1шт.

13

87705195

TERMINAL

C099F, Door Switch

1шт.

14

84127303

TERMINAL

G5, Ground

1шт.

15

84127303

TERMINAL

G5_A

1шт.

16

87699736

ELEC CONNECTOR,Female, 2 Cavities

C118M, Beacon Connector

1шт.

16

87697619

TERMINAL

C118M, Beacon Connector

2шт.

17

84122124

ELEC CONNECTOR

C16F, LH, Rear Worklamp CIH

1шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

C16F, LH, Rear Worklamp CIH

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

C16F, LH, Rear Worklamp CIH

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

C16F, LH, Rear Worklamp CIH

1шт.
