Запчасти Case IH PATRIOT 2250 (55.510.AH[01]) - ROOF HARNESS, PART I (55) - ELECTRICAL SYSTEMS

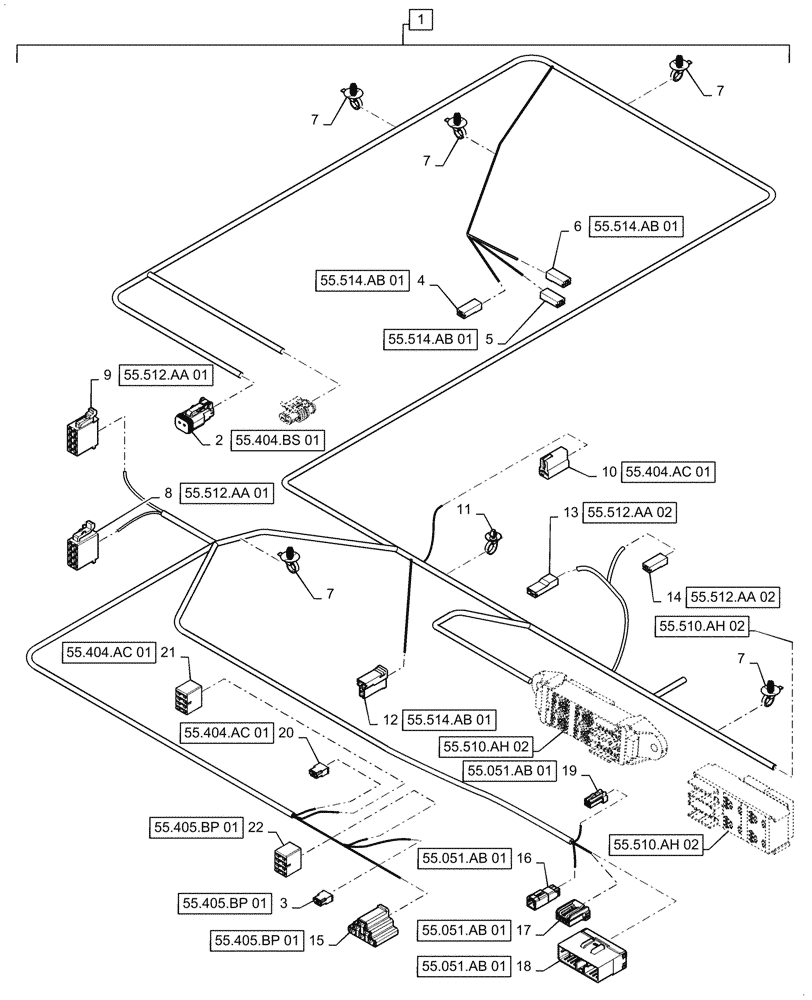

Схема запчастей Case IH PATRIOT 2250 - (55.510.AH[01]) - ROOF HARNESS, PART I (55) - ELECTRICAL SYSTEMS
55.405.bp 01
2
15
10
20
7
16
12
7
9
4
11
7
7
8
1
6
22
19
21
13
5
7
14
3
17
18
55.404.ac 01
55.404.ac 01
55.404.ac 01
55.512.aa 01
55.512.aa 01
55.404.bs 01
55.510.ah 02
55.510.ah 02
55.510.ah 02
55.051.ab 01
55.051.ab 01
55.051.ab 01
55.051.ab 01
55.514.ab 01
55.514.ab 01
55.514.ab 01
55.514.ab 01
55.512.aa 02
55.512.aa 02
55.405.bp 01
55.405.bp 01

Артикул

Название

Примечание

Количество

1

47788894

WIRE HARNESS

Assy, Roof, Incl 2 - 22

1шт.

2

84122124

ELEC CONNECTOR

C18F, RH, Front Worklamp

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

C18F, RH, Front Worklamp

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

C18F, RH, Front Worklamp

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

C18F, RH, Front Worklamp

1шт.

3

84131048

WIRE CONNECTOR

C321F, Front Wiper Motor Switch Illumination

1шт.

3

12278844

CABLE TERMINAL

C321F, Front Wiper Motor Switch Illumination

2шт.

4

87691425

ELEC CONNECTOR

C303F, Roof Lamp

1шт.

4

225158C1

CONNECTOR, ELEC

C303F, Roof Lamp

1шт.

5

87691425

ELEC CONNECTOR

C301F, Roof Lamp

1шт.

5

225158C1

CONNECTOR, ELEC

C301F, Roof Lamp

1шт.

6

87691425

ELEC CONNECTOR

C302F, Roof Lamp

1шт.

6

225158C1

CONNECTOR, ELEC

C302F, Roof Lamp

1шт.

7

82033028

CABLE TIE,170mm L

1шт.

8

82008642

WIRE CONNECTOR,Female

C94F, Radio

1шт.

8

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

C94F, Radio

4шт.

9

82008641

ELEC CONNECTOR,Female

C96F, Radio

1шт.

9

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

C96F, Radio

2шт.

9

84123442

TERMINAL

C96F, Radio

1шт.

10

87699736

ELEC CONNECTOR,Female, 2 Cavities

C121M, Beacon Socket Dx

1шт.

10

87679990

TERMINAL,Tin, 0.75 - 2.50mm

C121M, Beacon Socket Dx

1шт.

10

87697619

TERMINAL

C121M, Beacon Socket Dx

1шт.

11

84152593

CLIP

Fixing

1шт.

12

87691950

TERMINAL CONNECTOR

C300F, Spot Light Connector

1шт.

12

12483244

CABLE TERMINAL

C300F, Spot Light Connector

1шт.

12

12336444

CABLE TERMINAL

C300F, Spot Light Connector

1шт.

13

87705127

WIRE CONNECTOR

C335F, RH, Speaker

1шт.

13

225158C1

CONNECTOR, ELEC

C335F, RH, Speaker

1шт.

14

87691425

ELEC CONNECTOR

C330F, RH, Speaker

1шт.

14

225158C1

CONNECTOR, ELEC

C330F, RH, Speaker

1шт.

15

475083C1

CONNECTOR, ELEC

C003F, Work and Corner Light Switch

1шт.

15

87697660

TERMINAL

C003F, Work and Corner Light Switch

4шт.

15

87709400

ELEC. TERMINAL PIN

C003F, Work and Corner Light Switch

1шт.

16

84278792

WIRE CONNECTOR

C077F, A/C Switch

1шт.

16

84161470

SPARE PART

C077F, A/C Switch

2шт.

17

87736481

WIRE CONNECTOR

C074F, A/C Switch

1шт.

17

87691922

ELEC CONNECTOR

C074F, A/C Switch

3шт.

18

84279647

WIRE CONNECTOR

C073F, Fan Switch

1шт.

18

84279935

TERMINAL

C073F, Fan Switch

4шт.

18

84279934

TERMINAL

C073F, Fan Switch

1шт.

19

87493513

WIRE CONNECTOR

C018F, Potentiometer A/C Temp

1шт.

19

82003122

CABLE TERMINAL

C018F, Potentiometer A/C Temp

2шт.

20

87745329

WIRE CONNECTOR

C068F, Beacon Switch

1шт.

20

87679990

TERMINAL,Tin, 0.75 - 2.50mm

C068F, Beacon Switch

3шт.

20

87679962

TERMINAL

C068F, Beacon Switch

1шт.

21

84131048

WIRE CONNECTOR

C072F, Beacon Switch Illumination

1шт.

21

12278844

CABLE TERMINAL

C072F, Beacon Switch Illumination

2шт.

22

87745329

WIRE CONNECTOR

C320F, Front Wiper Motor Switch

1шт.

22

87679990

TERMINAL,Tin, 0.75 - 2.50mm

C320F, Front Wiper Motor Switch

4шт.

Выбрано товаров: 49
