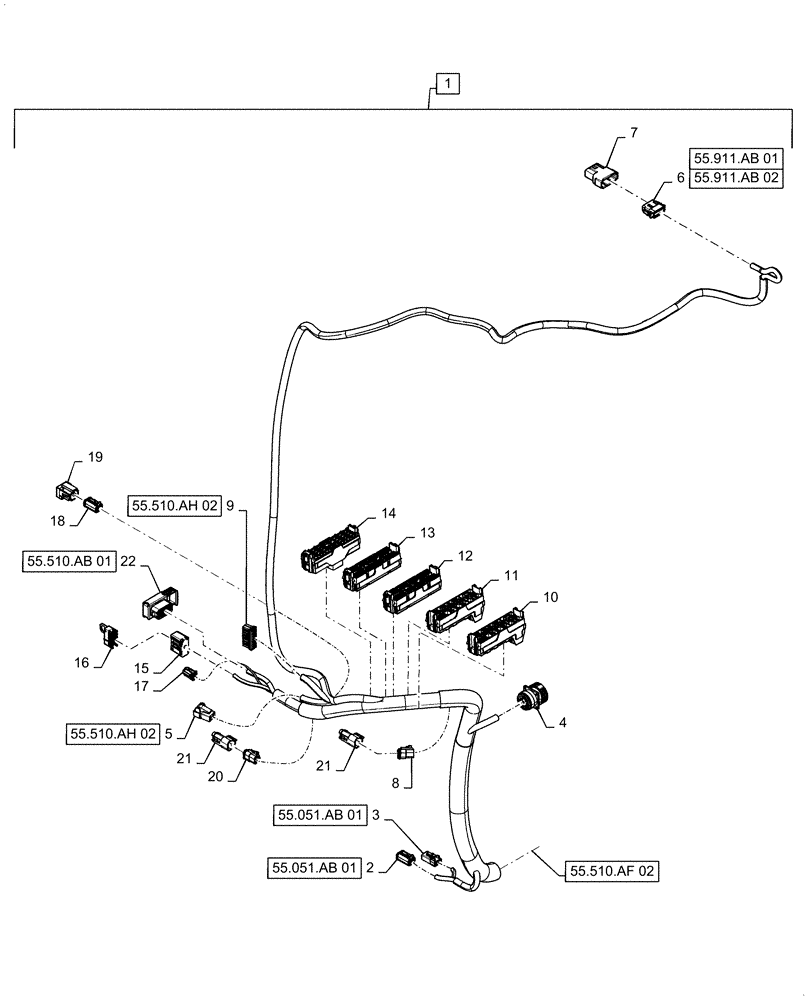

Запчасти Case IH PATRIOT 2250 (55.510.AF[03]) - MAIN CAB HARNESS, PART III (55) - ELECTRICAL SYSTEMS

1

47793632

WIRE HARNESS

Assy, Main Cab, Incl 2 - 22

1шт.

2

87694101

ELEC CONNECTOR,Female, 4 Cavities

Female, 4 Cavity, A/C Fan Switch, C004F

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Nickel, Stamped, A/C Fan Switch, C004F

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, A/C Fan Switch, C004F

3шт.

2

87694148

ELEC CONNECTOR

Wedgelock, A/C Fan Switch, C004F

1шт.

3

87710849

SOCKET/RECEPTACLE

Female, 2 Cavity, A/C Fan Relay, C005

1шт.

3

87695923

TERMINAL

Female, Nickel, Stamped, A/C Fan Relay, C005

2шт.

3

84148916

LOCKING TAB

Wedgelock, A/C Fan Relay, C005

1шт.

4

87516075

MULTIPOLE CONNECTOR,Male, 9 Pole

EST Interface, C026F

1шт.

4

82019149

TERMINAL

Male, Gold, EST Interface, C026F

7шт.

4

87538104

PROTECTION CAP

EST Interface, C026F

1шт.

5

82011938

WIRE CONNECTOR

Female, 2 Cavity, Cab Roof Harness Connection, CM7M

1шт.

5

19205894

TERMINAL CONNECTOR

Female, Tin, Cab Roof Harness Connection, CM7M

2шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

GPS Antenna, C432F

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Stamped, GPS Antenna, C432F

8шт.

6

87705198

WEDGE

Lock, Orange, GPS Antenna, C432F

1шт.

6

84807680

PLUG

Sealing, Red, GPS Antenna, C432F

4шт.

7

87700155

ELEC CONNECTOR,Female, 12 Cavities

Cover, Male, 12 Cavity, GPS Antenna, C432M

1шт.

7

84807680

PLUG

Sealing, GPS Antenna, C432M

12шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

Can Terminator, C726F

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, Can Terminator, C726F

2шт.

8

84147090

LOCKING TAB,Wedge Lock

Lock, Blue, Can Terminator, C726F

1шт.

8

84068583

PLUG,12 - 16 Ga, White

Sealing, Can Terminator, C726F

1шт.

9

87689502

ELEC CONNECTOR

Female, 20 Cavity, Cab Roof Harness, CM8F

1шт.

9

12319744

CABLE TERMINAL

Female, Tin, Cab Roof Harness, CM8F

6шт.

9

12483444

CABLE TERMINAL

Female, Tin, Cab Roof Harness, CM8F

12шт.

9

87691922

ELEC CONNECTOR

Female, Tin, Cab Roof Harness, CM8F

1шт.

10

87314761

FUSE HOLDER

Yellow, 64 Cavity, FK1-A

1шт.

10

10324990

TERMINAL

Female, Tin, Fuse Module, FK1-A

44шт.

10

84153403

TERMINAL

Female, Tin, Fuse Module, FK1-A

17шт.

10

84153401

TERMINAL

Female, Tin, Fuse Module, FK1-A

1шт.

10

84153400

TERMINAL

Female, Tin, Fuse Module, FK1-A

2шт.

10

84153830

FUSE,5A, Mini, Beige

Fuse Module, FK1-A

4шт.

10

84152583

FUSE,7.5A, Mini, Brown

Fuse Module, FK1-A

2шт.

10

84127702

FUSE,10A, Mini, Red

Fuse Module, FK1-A

10шт.

10

84127703

FUSE,15A, Mini, Blue

Fuse Module, FK1-A

8шт.

10

84127704

FUSE,20A, Mini, Yellow

Fuse Module, FK1-A

3шт.

10

84127705

FUSE,25A, Mini, White

Fuse Module, FK1-A

2шт.

10

84127708

FUSE,30A, Mini, Green

Fuse Module, FK1-A

1шт.

10

82012388

FUSE,30A, Maxival, Green

Fuse Module, FK1-A

2шт.

11

87314762

FUSE HOLDER

Yellow, 48 Cavity, FK1-B

2шт.

11

10324990

TERMINAL

Female, Tin, Fuse Module, FK1-B

16шт.

11

87342003

TERMINAL

Female, Tin, Fuse Module, FK1-B

8шт.

11

10324790

TERMINAL

Female, Tin, Fuse Module, FK1-B

2шт.

11

84153403

TERMINAL

Female, Tin, Fuse Module, FK1-B

8шт.

11

87341995

TERMINAL

Female, Tin, Fuse Module, FK1-B

6шт.

11

84157161

RELAY,12V, 20A

Brown, Fuse Module, FK1-B

7шт.

11

84127702

FUSE,10A, Mini, Red

Fuse Module, FK1-B

2шт.

11

84127703

FUSE,15A, Mini, Blue

Fuse Module, FK1-B

1шт.

11

84127704

FUSE,20A, Mini, Yellow

Fuse Module, FK1-B

1шт.

12

87314762

FUSE HOLDER

Yellow, 48 Cavity, FK1-C

1шт.

12

10324990

TERMINAL

Female, Tin, Fuse Module, FK1-C

14шт.

12

84153403

TERMINAL

Female, Tin, Fuse Module, FK1-C

18шт.

12

87341995

TERMINAL

Female, Tin, Fuse Module, FK1-C

12шт.

12

87342003

TERMINAL

Female, Tin, Fuse Module, FK1-C

3шт.

12

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Female, Fuse Module, FK1-C

2шт.

12

84157161

RELAY,12V, 20A

Brown, Fuse Module, FK1-C

8шт.

12

84152583

FUSE,7.5A, Mini, Brown

Fuse Module, FK1-C

1шт.

12

84127702

FUSE,10A, Mini, Red

Fuse Module, FK1-C

2шт.

13

87314763

FUSE HOLDER

Yellow, 24 Cavity, FK2-E

1шт.

13

84153401

TERMINAL

Female, Tin, Fuse Module, FK2-E

2шт.

13

84153403

TERMINAL

Female, Tin, Fuse Module, FK2-E

2шт.

13

87341995

TERMINAL

Female, Tin, Fuse Module, FK2-E

2шт.

13

87342003

TERMINAL

Female, Tin, Fuse Module, FK2-E

2шт.

13

10324990

TERMINAL

Female, Tin, Fuse Module, FK2-E

2шт.

13

87341931

RELAY,Mini ISO, 12V, 70A

Black, Fuse Module, FK2-E

1шт.

13

84157161

RELAY,12V, 20A

Brown, Fuse Module, FK2-E

1шт.

14

87314763

FUSE HOLDER

Yellow, 24 Cavity, Fuse Module, FK2-D

1шт.

14

84153400

TERMINAL

Female, Tin, Fuse Module, FK2-D

2шт.

14

87342003

TERMINAL

Female, Tin, Fuse Module, FK2-D

2шт.

14

87341995

TERMINAL

Female, Tin, Fuse Module, FK2-D

2шт.

14

87341931

RELAY,Mini ISO, 12V, 70A

Black, Fuse Module, FK2-D

1шт.

15

84149207

ELEC CONNECTOR

Black, Female, 12 Cavity, Connector, G2.1

1шт.

15

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Female, Connector, G2.1

4шт.

15

87693249

ELEC. TERMINAL PIN

Female, Tin, Connector, G2.1

3шт.

15

87693733

RETAINER

Gray, Secondary Lock, 12 Cavity, G2.1

1шт.

16

87352750

CAP

Tan, Connector Cover, 12 Cavity, G2.1

1шт.

17

84177907

ELEC CONNECTOR

Female, 3 Cavity, Acc Port, C020F

1шт.

17

87693249

ELEC. TERMINAL PIN

Female, Tin, Acc Port, C020F

3шт.

17

84178477

RETAINER

Blue, Secondary Lock, Acc Port, C020F

1шт.

18

87694101

ELEC CONNECTOR,Female, 4 Cavities

Diode, C019F

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Diode, C019F

4шт.

18

87694148

ELEC CONNECTOR

Wedge Lock, Orange, Diode, C019F

1шт.

19

87270520

DIODE

4 Cavity Receptacle, C019F

1шт.

20

87695580

ELEC CONNECTOR,Female, 3 Pole

Can Terminator, C139F

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Can Terminator, C139F

3шт.

20

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, Green, Can Terminator, C139F

1шт.

20

84147090

LOCKING TAB,Wedge Lock

Wedge Lock, Blue, Can Terminator, C139F

1шт.

21

84058092

CONTACT HOUSING,120 Ohm Resistor

Can Terminator, C139F

2шт.

22

87680366

ELEC CONNECTOR,Female, 24 Cavities

Female, 24 Cavity, Turn Signal Module, C017M

1шт.

22

87697192

CABLE TERMINAL,Tin, 1.00 - 2.50mm

Female, Turn Signal Module, C017M

5шт.

22

87708543

CABLE TERMINAL

Female, Tin, Turn Signal Module, C017M

6шт.

22

87708542

CABLE TERMINAL

Female, Tin, Turn Signal Module, C017M

1шт.

22

87714248

LOCKING TAB,Wedge Lock

Purple, Cam,Turn Signal Module, C017M

1шт.
