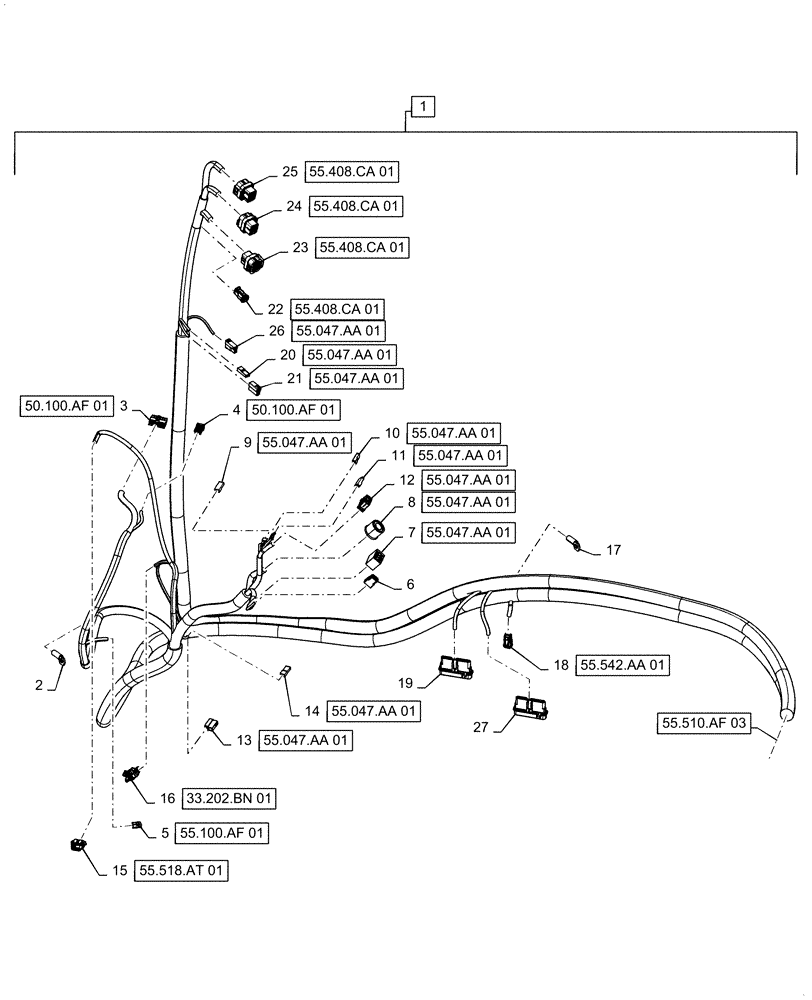

Запчасти Case IH PATRIOT 2250 (55.510.AF[01]) - MAIN CAB HARNESS, PART I (55) - ELECTRICAL SYSTEMS

1

47793632

WIRE HARNESS

Assy, Main Cab, Incl 2 - 27

1шт.

2

84313702

TERMINAL

Ring, M8, Ground, G2

1шт.

3

87694702

ELEC CONNECTOR

Female, 14 Cavity, A/C, ECU, C014F

1шт.

3

87694713

ELEC CONNECTOR

Female, Tin, A/C, ECU, C014F,

8шт.

4

84136442

WIRE CONNECTOR

Female, 3 Cavity, A/C, Defrost,Thermostat, C012F

1шт.

4

87680668

ELEC. TERMINAL PIN,Tin, 0.50 - 1.40mm

Female, A/C, Defrost, Thermostat, C013F

3шт.

5

84265223

WIRE CONNECTOR

Female, 6 Cavity, A/C Actuator Valve, C013F

1шт.

5

84265029

WIRE CONNECTOR

Shield, Black, A/C Actuator Valve, C013F

1шт.

5

84141103

TERMINAL

Female, Tin, A/C Actuator Valve, C013F

5шт.

6

84146684

ELEC CONNECTOR

Female, 2 Cavity, Parking Brake Lamp, C002.1F

1шт.

6

225177C1

TERMINAL CONNECTOR,Female, 0.75 - 1.5 mm2

Parking Brake Lamp, C002.1F

2шт.

7

87717631

ELEC CONNECTOR

Female, 8 Cavity, Parking Brake, C002F

1шт.

7

87697619

TERMINAL

Female, Tin, Parking Brake, C002F

3шт.

8

84289727

WIRE CONNECTOR

Female, 7 Cavity, Headlight / Hazard, C006F

1шт.

8

87697619

TERMINAL

Female, Tin, Headlight / Hazard, C006F

4шт.

9

87705127

WIRE CONNECTOR

Female, 1 Cavity, Key Switch, C750F

1шт.

9

87705195

TERMINAL

Female, Tin, Key Switch, C750F

1шт.

10

87705127

WIRE CONNECTOR

Female, 1 Cavity, Key Switch, C719F

1шт.

10

87705195

TERMINAL

Female, Tin, Key Switch, C719F

1шт.

11

87747155

WIRE CONNECTOR

Female, 1 Cavity, Key Switch, C730F

1шт.

11

87697658

TERMINAL

Female, Tin, Key Switch, C730F

1шт.

12

87747425

WIRE CONNECTOR

Female, 8 Cavity, Light Control Switch, C001F

1шт.

12

12483444

CABLE TERMINAL

Female, Tin, Light Control Switch, C001F

1шт.

12

12319744

CABLE TERMINAL

Female, Tin, Light Control Switch, C001F

6шт.

13

87699736

ELEC CONNECTOR,Female, 2 Cavities

Cigar Lighter, C025F

1шт.

13

87697619

TERMINAL

Female, Tin, Cigar Lighter, C025F

2шт.

14

87705127

WIRE CONNECTOR

Female, 1 Cavity, Cigar Lighter Light, C027F

1шт.

14

87695519

TERMINAL

Female, Tin, Cigar Lighter Light, C027F

1шт.

15

87688716

ELEC CONNECTOR,Female, 3 Cavities

Female, 3 Cavity, Front Wiper Connector, C323F

1шт.

15

87688852

ELEC. TERMINAL PIN

Female, Tin, Front Wiper Connector, C323F

2шт.

15

87690548

PLUG,White, 2.15mm - 1.60mm

Cavity, Front Wiper Connector, C323F

1шт.

15

87693732

LOCKING TAB,Wedge Lock

Wedgelock, Front Wiper Connector, C323F

1шт.

16

87687242

ELEC CONNECTOR,4 Way

Female, 4 Cavity, Brake Switch, C007F

1шт.

16

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Brake Switch, C007F

2шт.

16

82012084

SEAL,1.4mm ID

Yellow, Brake Switch, C007F

2шт.

17

334699

TERMINAL CONNECTOR,Male

2 Cavity, C044F

1шт.

17

10250144

CABLE TERMINAL

Male, Tin, C044F

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Traction Control, C057F

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Traction Control, C057F

2шт.

19

87694717

ELEC CONNECTOR

Female, 12 Cavity, 3 x 4W Splice, C061F

1шт.

19

84526560

TERMINAL

Female, Tin, 3 x 4W Splice, C061F

5шт.

19

87694139

ELEC. TERMINAL PIN

Female, Tin, 3 x 4W Splice, C061F

5шт.

19

47626006

RUBBER SEAL

White, 3 x 4W Splice, C061F

9шт.

19

87698531

RUBBER SEAL

Blue, 3 x 4W Splice, C061F

1шт.

19

84153405

RETAINER

Gray, Wedgelock, 3 x 4W Splice, C061F

1шт.

19

87695206

ELEC CONNECTOR

Cover, 12 Cavity, 3 x 4W Splice, C061F

1шт.

20

87705127

WIRE CONNECTOR

Female, 1 Cavity, Cigar Lighter Light, C032F

1шт.

20

87695519

TERMINAL

Female, Tin, Cigar Lighter Light, C032F

1шт.

21

87699736

ELEC CONNECTOR,Female, 2 Cavities

Cigar Lighter, C033F

1шт.

21

87697619

TERMINAL

Female, Tin, Cigar Lighter, C033F

2шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

ICU Buzzer, C011M

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

ICU Buzzer, C011M

2шт.

23

82028492

MULTIPOLE CONNECTOR,Female, 26 Pole

ICU2-CN2 Top, C009M

1шт.

23

87410951

TERMINAL

Female, Gold, ICU2-CN2 Top, C009M

11шт.

23

82017048

CABLE TERMINAL

Female, Gold, ICU2-CN2 Top, C009M

2шт.

24

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

ICU2-CN1, C010M

1шт.

24

87410951

TERMINAL

Female, Gold, ICU2-CN1, C010M

7шт.

24

82017048

CABLE TERMINAL

Female, Gold, ICU2-CN1, C010M

10шт.

25

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

ICU2-CN3, C008M

1шт.

25

87410951

TERMINAL

Female, Gold, ICU2-CN3, C008M

10шт.

26

87691950

TERMINAL CONNECTOR

Female, 2 Cavity, 8 A Socket, C046F

1шт.

26

12336444

CABLE TERMINAL

Female, Tin, 8 A Socket, C046F

2шт.

27

87694717

ELEC CONNECTOR

Female, 12 Cavity, 3 x 4W Splice, C060F

1шт.

27

84526560

TERMINAL

Female, Tin, 3 x 4W Splice, C060F

2шт.

27

47626006

RUBBER SEAL

White, 3 x 4W Splice, C060F

6шт.

27

87698531

RUBBER SEAL

Blue, 3 x 4W Splice, C060F

2шт.

27

84153405

RETAINER

Gray, Wedgelock, 3 x 4W Splice, C060F

1шт.

27

87695206

ELEC CONNECTOR

Cover, 12 Cavity, 3 x 4W Splice, C060F

1шт.
