(55.510.AB[01]) - WIRE HARNESS, CAB

Запчасти Case IH PATRIOT 2250 (55.510.AB[01]) - WIRE HARNESS, CAB (55) - ELECTRICAL SYSTEMS

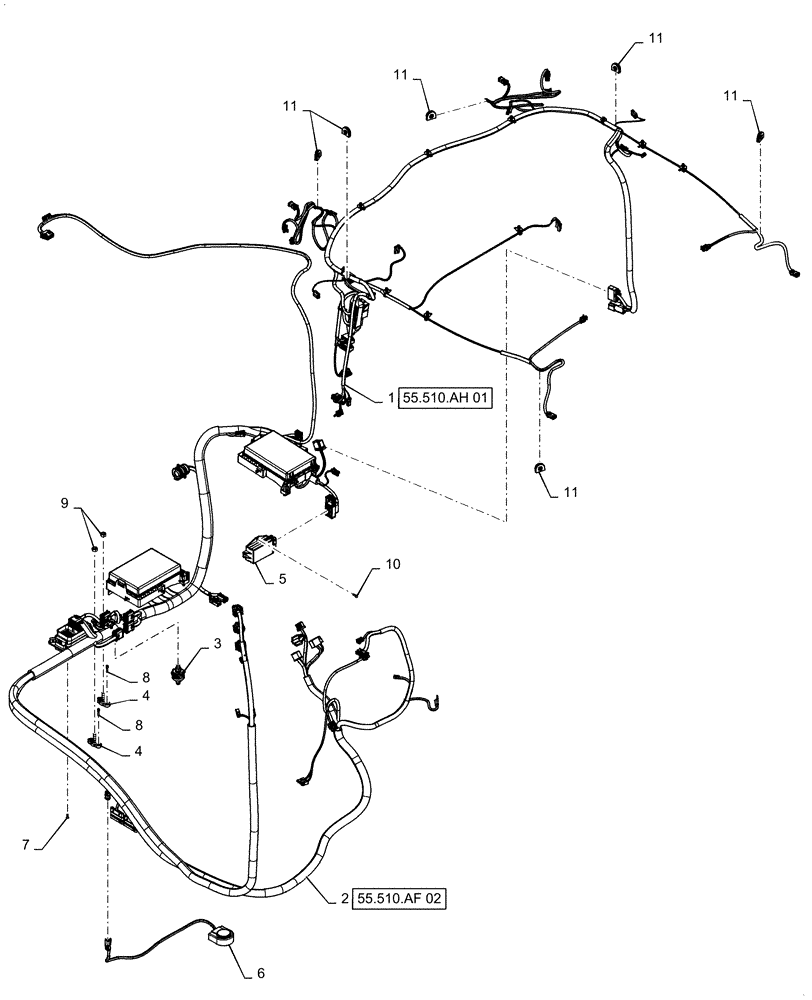

Схема запчастей Case IH PATRIOT 2250 - (55.510.AB[01]) - WIRE HARNESS, CAB (55) - ELECTRICAL SYSTEMS
55.510.ah 01
5
1
11
9
11
8
7
4
4
11
2
6
3
11
11
10
8
55.510.af 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47788894

WIRE HARNESS

Assy, Roof

1шт.

See 55.510.AH 01 for Service

1шт.

2

47793632

WIRE HARNESS

Assy, Main Cab

1шт.

See 55.510.AF 02 for Service

1шт.

3

190158A1

BLOCK

Junction Box, Assy

1шт.

4

20-1451T1

BLOCK

Junction

2шт.

5

84414345

FLASHER UNIT

1шт.

6

84470559

SWITCH

Foot Operated

1шт.

7

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

4шт.

8

14304321

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

9

86500689

NUT,M10 x 1.5, Cl 10

2шт.

10

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

11

84516532

RUBBER SEAL,15mm ID

Grommet

6шт.
