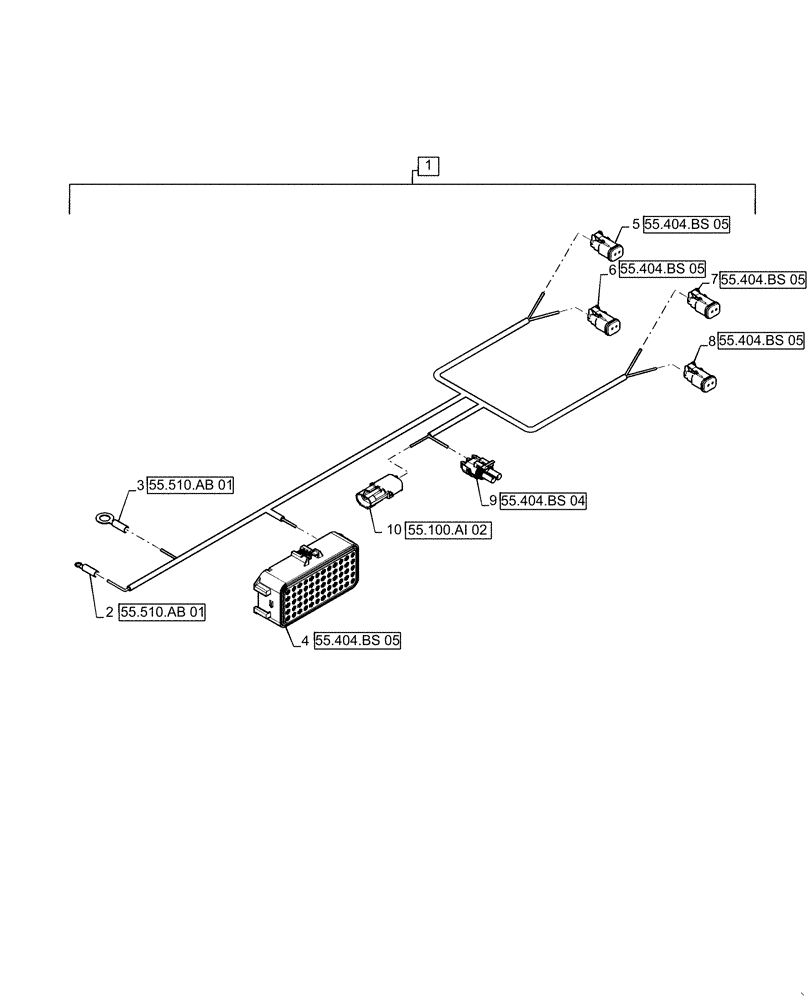

Запчасти Case IH PATRIOT 2250 (55.404.BS[06]) - CAB MOUNTED, HID LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

1

47767771

WIRE HARNESS

Assy, Incl 2 - 10

1шт.

2

200312

CONNECTOR, ELEC,Tin, 3.00 - 5.00mm

Eyelet, Red, Power, X723F

1шт.

3

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Ground, X-722F

1шт.

4

84255438

FUSE BOX

60 Cavity, Female, Base, HID Fuse/Relays, X-717F1

1шт.

4

84255445

FUSE BOX

Cover, HID Fuse/Relays, X-717F1

1шт.

4

84152584

TERMINAL,Tin, 0.50 - 1.00mm

Female, HID Fuse/Relays, X-717F1

4шт.

4

84152586

TERMINAL,Tin, 1.50 - 2.50mm

Female, HID Fuse/Relays, X-717F1

8шт.

4

82035902

PLUG

Cavity, Natural, 5.4mm, HID Fuse/Relays, X-717F1

48шт.

4

87655334

RELAY,12V, 35A, Micro

HID Fuse/Relays, X-717F1

2шт.

4

84127704

FUSE,20A, Mini, Yellow

HID Fuse/Relays, X-717F1

2шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

RH HID Work Light 2, X-718F2

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH HID Work Light 2, X-718F2

2шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

RH HID Work Light 1, X-719F2

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH HID Work Light 1, X-719F2

2шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

LH HID Work Light 1, X-720F2

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH HID Work Light 1, X-720F2

2шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

LH HID Work Light 2, X-721F2

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH HID Work Light 2, X-721F2

2шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

HID Tank Light Interface, X-627FA

1шт.

9

87692856

CABLE TERMINAL

Female, Tin, HID Tank Light Interface, X-627FA

2шт.

9

87680701

SEAL

Cable, Green, HID Tank Light Interface, X-627FA

2шт.

10

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

HID Main Frame Interface, X-627MA

1шт.

10

87692882

ELEC. TERMINAL PIN

Male, Tin, HID Main Frame Interface, X-627MA

2шт.

10

87680701

SEAL

Cable, Green, HID Main Frame Interface, X-627MA

2шт.
