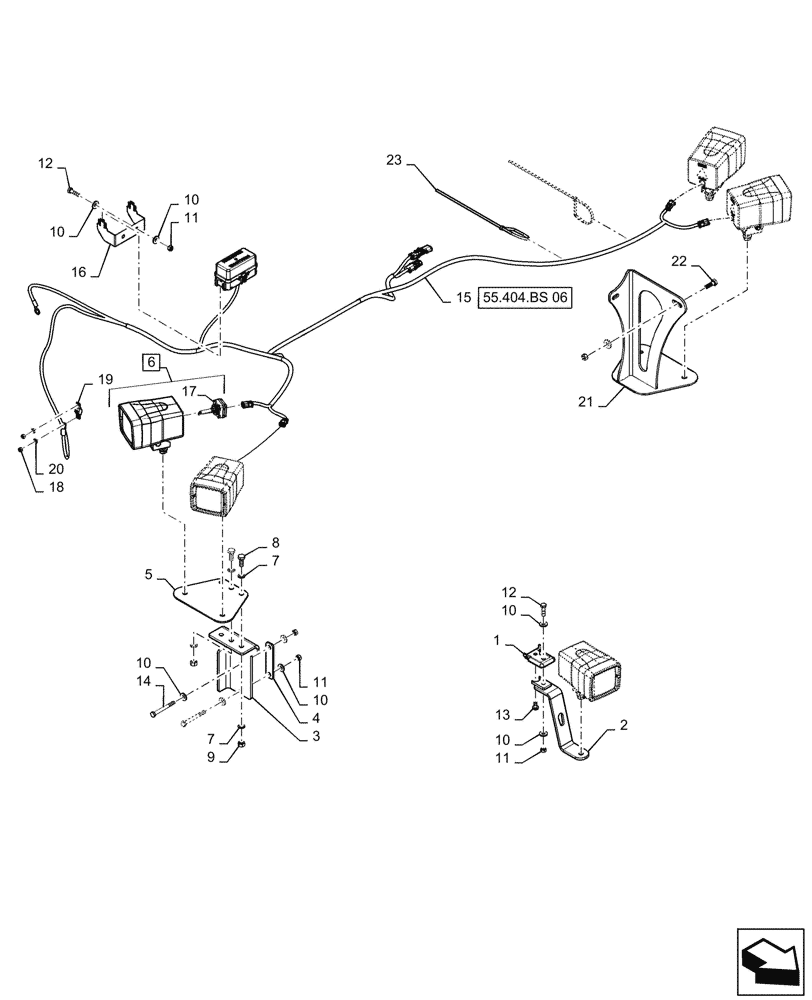

Запчасти Case IH PATRIOT 2250 (55.404.BS[05]) - CAB MOUNTED HID WORK LIGHTS & WIRING (55) - ELECTRICAL SYSTEMS

1

84317202

BRACKET

Retainer

2шт.

2

47400395

MOUNT

Light

2шт.

3

47400400

BRACKET

Angle

1шт.

4

87632103

PLATE

Backing

1шт.

5

47400397

PLATE

Top

1шт.

6

87529382

WORK LAMP

HID, Incl 17

6шт.

7

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

8

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

14шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

7шт.

12

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

13

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

2шт.

14

87341844

BOLT,Hex, M8 x 75mm, Cl 8.8

2шт.

15

47767771

WIRE HARNESS

HID, Complete

1шт.

See 55.404.BS 06 for Service

1шт.

16

47481254

MOUNT

Fuse Box

1шт.

17

87722023

BULB,HID, 85V, 35W

6шт.

18

84401337

NUT

M5, DOR

2шт.

19

84174070

FUSE,30A, Orange

1шт.

20

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

2шт.

21

47738620

BRACKET

Light

1шт.

22

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

23

BN570007

STRAP

14" Zip Tie

8шт.
