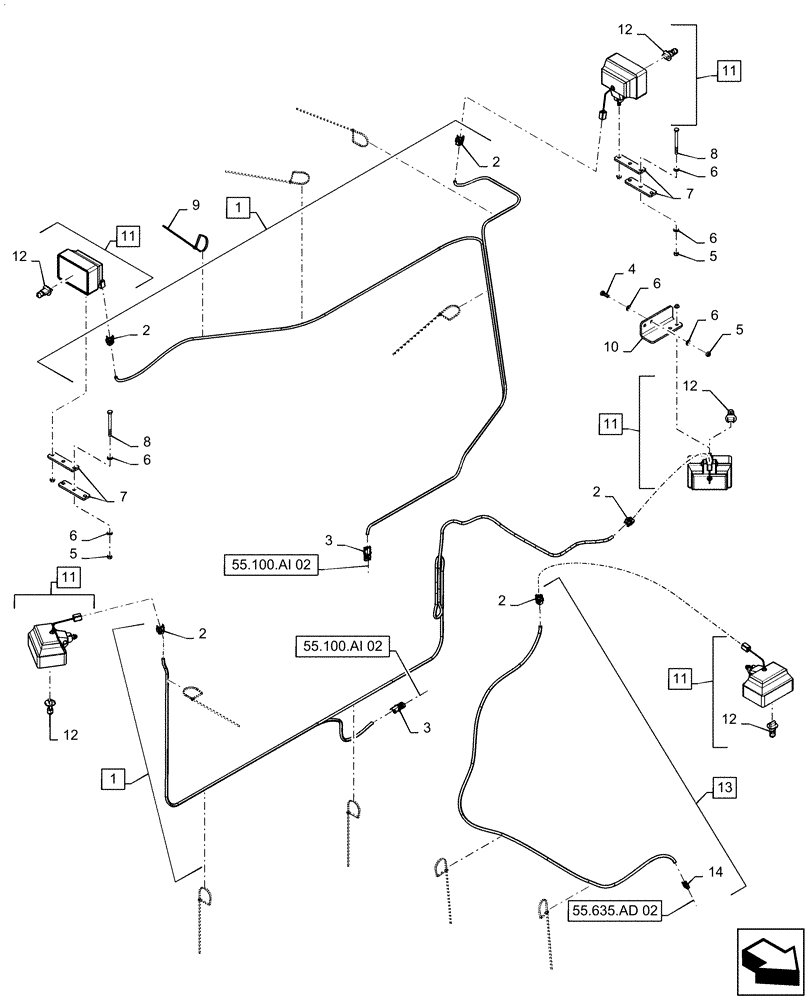

Запчасти Case IH PATRIOT 2250 (55.404.BS[04]) - MIDSHIP LIGHTS, AND HARNESS (55) - ELECTRICAL SYSTEMS

1

84368539

WIRE HARNESS

Midship Boom Lights, Incl 2, 3

2шт.

2

84375388

WIRE CONNECTOR

Female, 2 Cavity, X-645F2, X-646F2, X-128

5шт.

2

84375390

TERMINAL

Female, Tin, X-645F2, X-646F2, X-128

10шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-627M2

2шт.

3

87692882

ELEC. TERMINAL PIN

Male, Tin, X-627M2

4шт.

3

87680710

SEAL

Cavity, Green, X-627M2

4шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

12шт.

7

47560293

BRACKET

Rear Boom Lights

4шт.

8

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

4шт.

9

BN570007

STRAP

14 1/2"

16шт.

10

47447770

BRACKET

Mid Boom Light

1шт.

11

87272830

SIDE LAMP ASSY

Halogen Work, Incl 12

5шт.

12

1312210C2

BULB,Halogen H3, 12V, 55W

55W H3

5шт.

13

47554729

WIRE HARNESS

Extension, Operator Station Light, Incl 2, 14

1шт.

14

87696093

ELEC CONNECTOR,Female, 2 Cavities

Operator Station Light, X-508F

1шт.

14

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Operator Station Light, X-508F

2шт.
