(55.404.BS[01]) - WORK LIGHTS, HALOGEN

Запчасти Case IH PATRIOT 2250 (55.404.BS[01]) - WORK LIGHTS, HALOGEN (55) - ELECTRICAL SYSTEMS

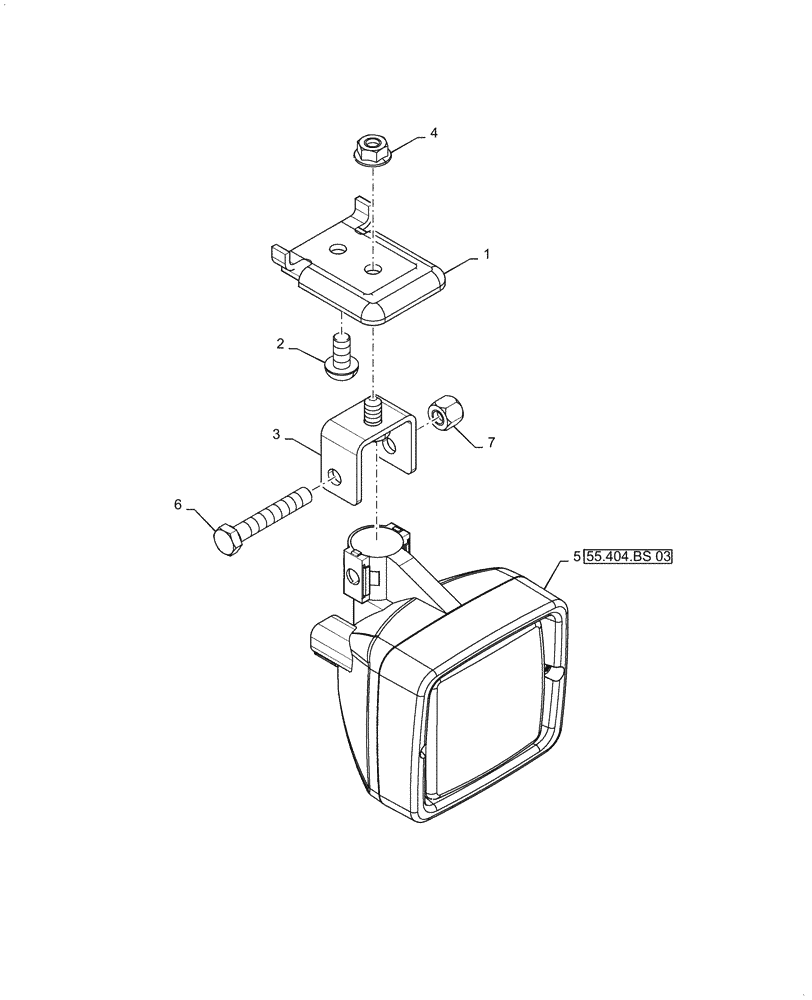

Схема запчастей Case IH PATRIOT 2250 - (55.404.BS[01]) - WORK LIGHTS, HALOGEN (55) - ELECTRICAL SYSTEMS
55.404.bs 03
7
2
1
5
6
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84317202

BRACKET

Mounting

2шт.

2

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

Work Light

2шт.

3

84317204

BRACKET

Adjustable

2шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

5

84299527

LAMP,Halogen, 12V, 55W, Clear Lens

Flood, 12 Volt 55 Watt (H3) Utility Light

2шт.

See 55.404.BS 03 for Service

1шт.

6

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

7

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

Выбрано товаров: 8
