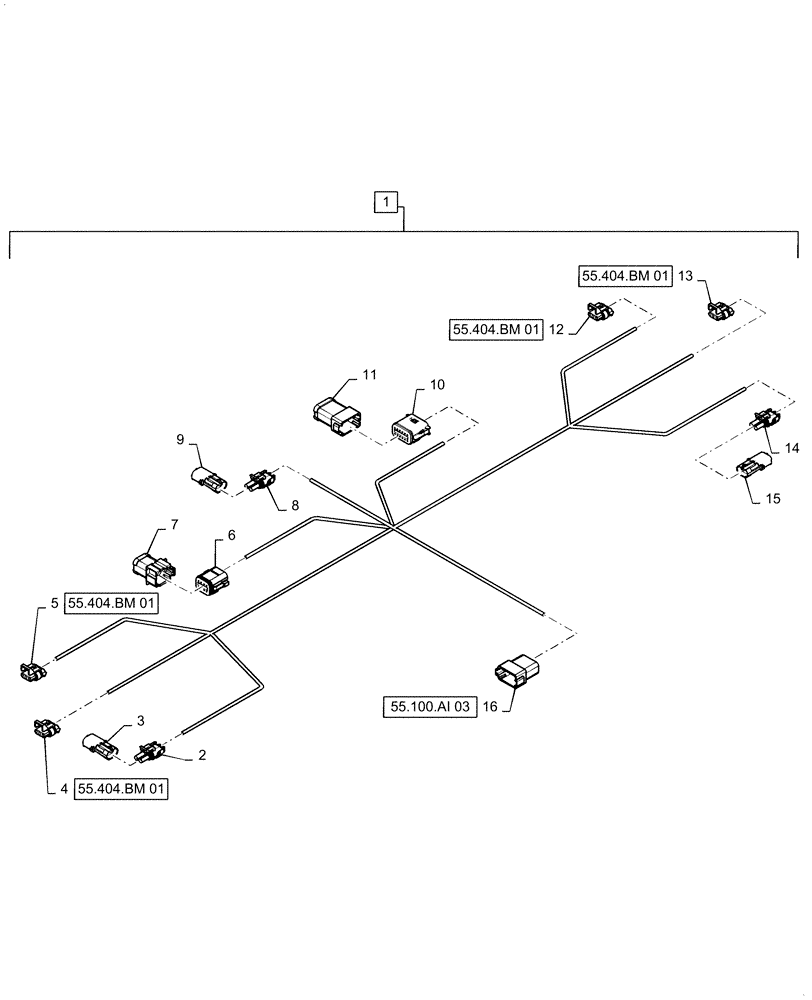

Запчасти Case IH PATRIOT 2250 (55.404.BM[02]) - WIRE HARNESS, REAR LIGHT EXTENSION (55) - ELECTRICAL SYSTEMS

1

47750805

WIRE HARNESS

Assy, Rear Light Extension, Incl 2 - 16

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Front Facing Turn Light, X-675F

1шт.

2

87692856

CABLE TERMINAL

Female, Tin, LH Front Facing Turn Light, X-675F

2шт.

2

87680701

SEAL

Cable, Green, LH Front Facing Turn Light, X-675F

2шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap, LH Front Facing Turn Light, X-675M

1шт.

3

87686742

PLUG

Cavity, Green, LH Front Facing Turn Light, X-675M

2шт.

4

87693712

ELEC CONNECTOR,Female, 3 Cavities

LH Stop/Tail Light, X-671F

1шт.

4

87688852

ELEC. TERMINAL PIN

Female, Tin, LH Stop/Tail Light, X-671F

3шт.

4

87689629

SEAL

Cable, Red, LH Stop/Tail Light, X-671F

3шт.

4

87693732

LOCKING TAB,Wedge Lock

Wedgelock, LH Stop/Tail Light, X-671F

1шт.

5

87693712

ELEC CONNECTOR,Female, 3 Cavities

LH Turn, X-673F

1шт.

5

87688852

ELEC. TERMINAL PIN

Female, Tin, LH Turn, X-673F

2шт.

5

87689629

SEAL

Cable, Red, LH Turn, X-673F

2шт.

5

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, LH Turn, X-673F

1шт.

5

87693732

LOCKING TAB,Wedge Lock

WedgeLock, LH Turn, X-673F

1шт.

6

87700325

ELEC CONNECTOR,Female, 8 Cavities

Sealed Splice Pack DEU, X-678F

1шт.

6

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

8 Way Sealed Splice Pack DEU, X-678F

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

8 Way Sealed Splice Pack DEU, X-678F

7шт.

6

84806312

LOCKING TAB,Wedge Lock

WedgeLock, 8 Way Sealed Splice Pack DEU, X-678F

1шт.

7

87270259

ELEC CONNECTOR

8 Way Bussbar Cap, X-678M

1шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Rear Boom Work Light, X-676F

1шт.

8

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Rear Boom Work Light, X-676F

2шт.

8

87680710

SEAL

Cabl;e, Grey, Rear Boom Work Light, X-676F

2шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap, Rear Boom Work Light, X-676M

1шт.

9

87686742

PLUG

Cavity, Green, Rear Boom Work Light, X-676M

2шт.

10

87696075

ELEC CONNECTOR

4 x 3 Way Splice Pack EDU, X-677F

1шт.

10

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

4 x 3 Way Splice Pack EDU, X-677F

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

4 x 3 Way Splice Pack EDU, X-677F

11шт.

10

87695651

LOCKING TAB,Wedge Lock

Lock, 4 x 3 Way Splice Pack EDU, X-677F

1шт.

11

87587629

ELEC CONNECTOR

4 x 3 Way Bussbar Cap, Splice Pack EDU, X-677M

1шт.

12

87693712

ELEC CONNECTOR,Female, 3 Cavities

RH Stop/Tail Light, X-670F

1шт.

12

87688852

ELEC. TERMINAL PIN

Female, Tin, RH Stop/Tail Light, X-670F

3шт.

12

87689629

SEAL

Cable, Red, RH Stop/Tail Light, X-670F

3шт.

12

87693732

LOCKING TAB,Wedge Lock

WedgeLock, RH Stop/Tail Light, X-670F

1шт.

13

87693712

ELEC CONNECTOR,Female, 3 Cavities

RH Turn, X-672F

1шт.

13

87688852

ELEC. TERMINAL PIN

Female, Tin, RH Turn, X-672F

2шт.

13

87689629

SEAL

Cable, Red, RH Turn, X-672F

2шт.

13

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, RH Turn, X-672F

1шт.

14

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Front Facing Turn Light, X-674F

1шт.

14

87692856

CABLE TERMINAL

Female, Tin, RH Front Facing Turn Light, X-674F

2шт.

14

87680701

SEAL

Cable, Green, RH Front Facing Turn Light, X-674F

2шт.

15

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap, RH Front Facing Turn Light, X-674M

1шт.

15

87686742

PLUG

Cavity, Green, RH Front Facing Turn Light, X-674F

2шт.

16

87695724

ELEC CONNECTOR,Male, 12 Pole

Rear Boom Lights, X-660M

1шт.

16

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Nickel, Rear Boom Lights, X-660M

2шт.

16

87695623

ELEC. TERMINAL PIN

Male, Nickel, Rear Boom Lights, X-660M

4шт.

16

84068583

PLUG,12 - 16 Ga, White

Cavity, Rear Boom Lights, X-660M

6шт.

16

87698541

LOCKING TAB,Wedge Lock, 12-Pin

WedgeLock, Rear Boom Lights, X-660M

1шт.
