(55.404.BM[01]) - REAR TAIL LIGHTS

Запчасти Case IH PATRIOT 2250 (55.404.BM[01]) - REAR TAIL LIGHTS (55) - ELECTRICAL SYSTEMS

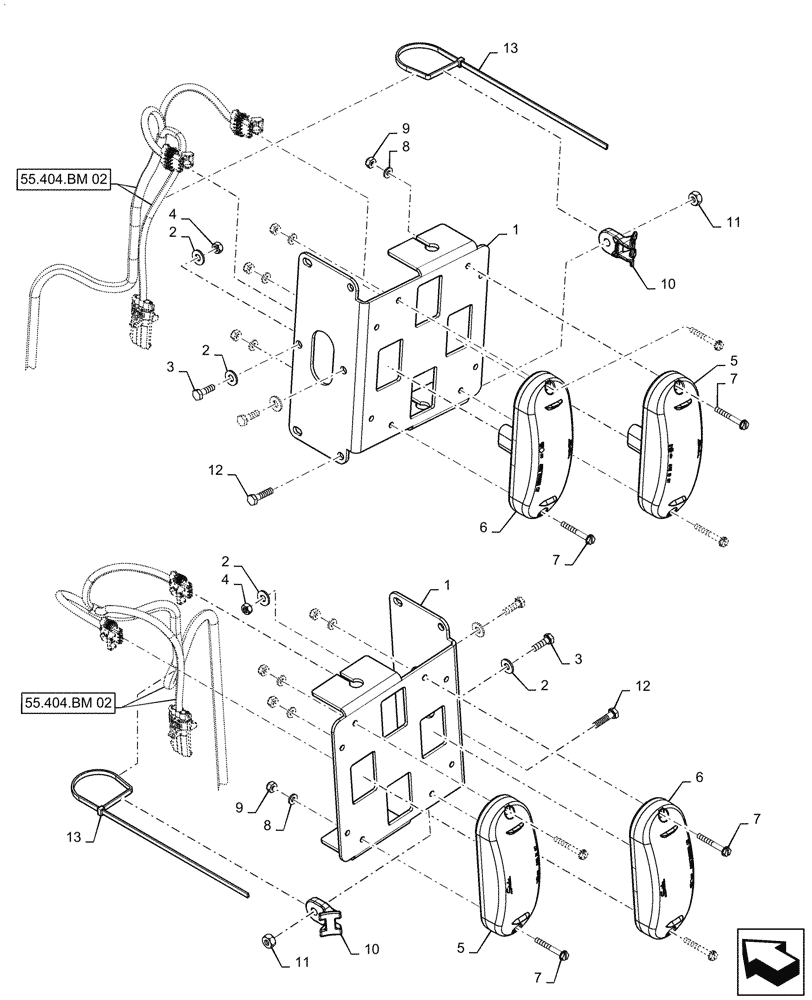

Схема запчастей Case IH PATRIOT 2250 - (55.404.BM[01]) - REAR TAIL LIGHTS (55) - ELECTRICAL SYSTEMS
55.404.bm 02
4
5
2
8
11
13
2
5
10
3
7
10
6
2
4
7
1
7
8
12
11
1
3
12
13
7
6
9
9
2
55.404.bm 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47688746

BRACKET

Tail Light, LED

2шт.

2

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

8шт.

3

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

4

87698779

NUT

M6, DOR

4шт.

5

87694405

LIGHT ASSY.

Turn, LED Amber

2шт.

6

87694404

LIGHT ASSY.

Brake, LED Red

2шт.

7

BN316803

SCREW,#10 - 24 x 1 1/2", SST

8шт.

8

BN310265

WASHER

# 10, SST

8шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

10

84474186

BASE

Tie

2шт.

11

87698779

NUT

M6 DOR

2шт.

12

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

13

BN570007

STRAP

14" Zip Tie

2шт.
