(55.404.AQ[02]) - CENTER MOUNTED, HALOGEN, WORK LIGHT

Запчасти Case IH PATRIOT 2250 (55.404.AQ[02]) - CENTER MOUNTED, HALOGEN, WORK LIGHT (55) - ELECTRICAL SYSTEMS

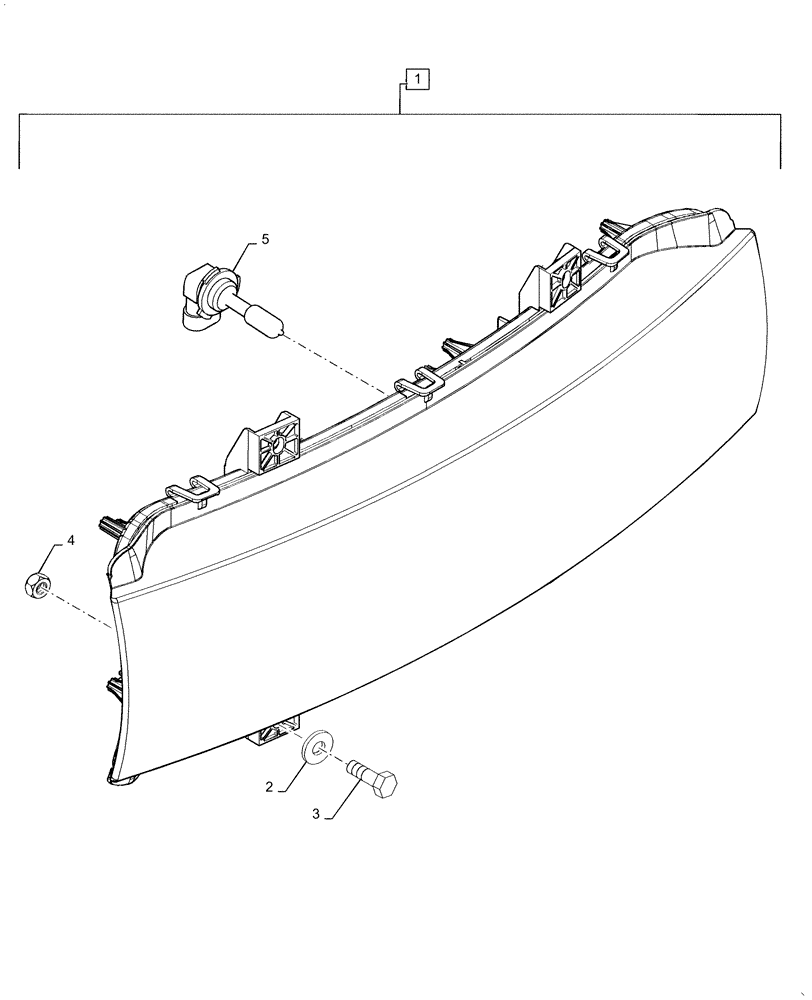

Схема запчастей Case IH PATRIOT 2250 - (55.404.AQ[02]) - CENTER MOUNTED, HALOGEN, WORK LIGHT (55) - ELECTRICAL SYSTEMS
2
1
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87455676

HEADLAMP,Halogen, 12V, 60W

Assy, Incl 2 - 5

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

DOR

8шт.

3

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

DOR

4шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

5

87316352

BULB,HB3, 12V, 60W

HB 3, 9005, 60W, Halogen

3шт.
