(55.404.AQ[01]) - HEADLAMPS, AND MOUNTING PARTS

Запчасти Case IH PATRIOT 2250 (55.404.AQ[01]) - HEADLAMPS, AND MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

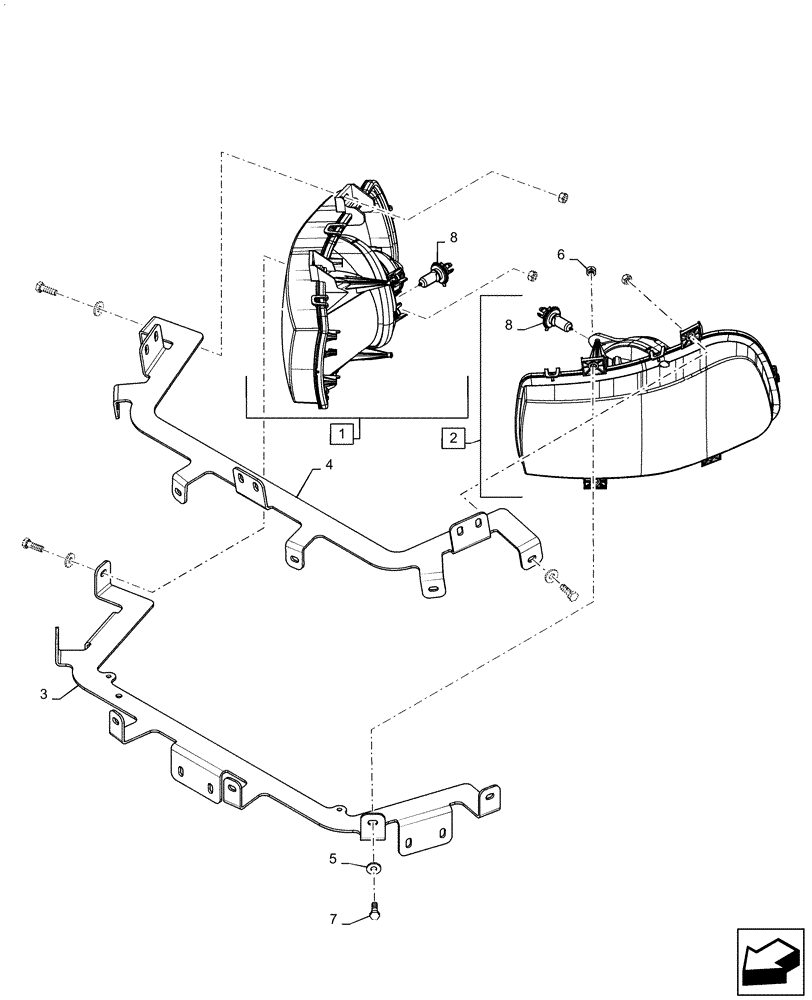

Схема запчастей Case IH PATRIOT 2250 - (55.404.AQ[01]) - HEADLAMPS, AND MOUNTING PARTS (55) - ELECTRICAL SYSTEMS
8
4
6
3
1
5
2
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87455675

RH HEADLAMP

Halogen, Incl 8

1шт.

2

87455674

LH HEADLAMP

Halogen, Incl 8

1шт.

3

47361025

BRACKET

Bottom Headlight Mounting

1шт.

4

84605522

BRACKET

Top Headlight Mounting

1шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

DOR

32шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

20шт.

7

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

DOR

20шт.

8

87283179

BULB,H4, 12V, 60/55W

2шт.
