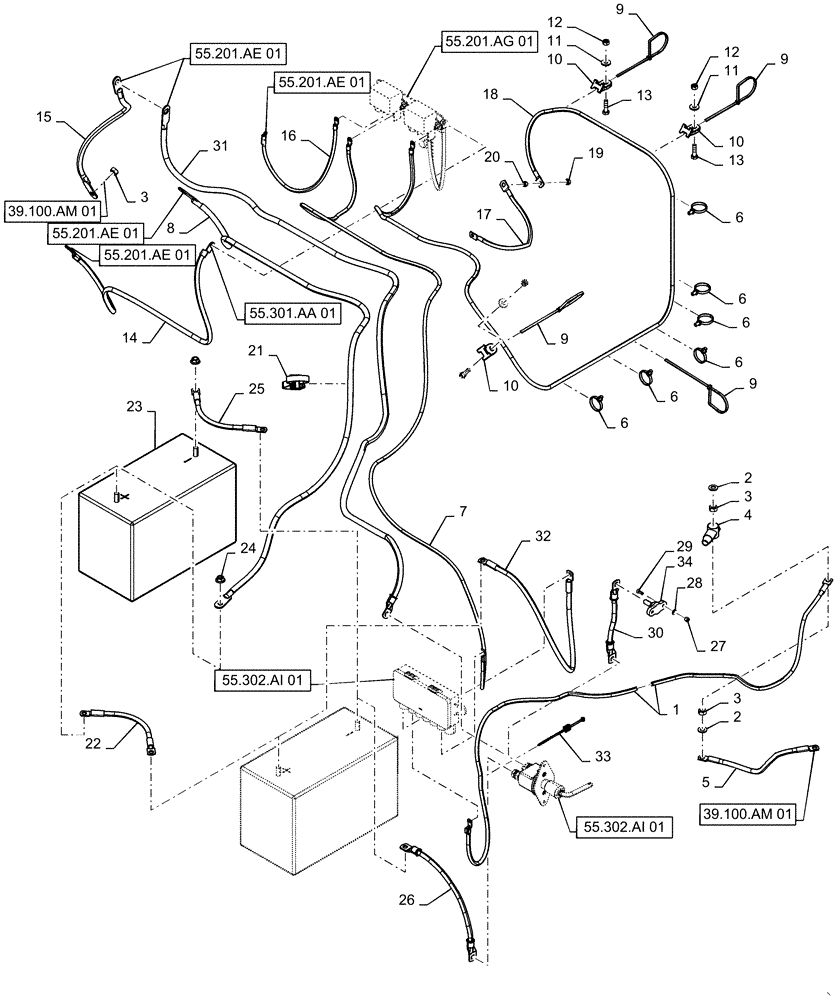

Запчасти Case IH PATRIOT 2250 (55.302.AV[01]) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS

1

47883711

POS BATTERY CABLE

Power Distribution to Cab

1шт.

2

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

3шт.

3

86500689

NUT,M10 x 1.5, Cl 10

3шт.

4

342119A1

BOOT

Battery, Red

1шт.

5

84385911

NEG BATTERY CABLE

Cab to Frame

1шт.

6

87668737

CABLE TIE,203.2mm L, Nylon, Black

6шт.

7

47713428

CABLE

Positive, Relay to Fuses

1шт.

8

47365835

POS BATTERY CABLE

Battery to Starter

1шт.

9

BN570007

STRAP

14"

3шт.

10

84407295

BASE

Tie

3шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

13

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

14

47601697

CABLE

Positive, Starter to Alternator

1шт.

15

47749945

CABLE

Negative, Starter to Frame

1шт.

16

47711477

CABLE

Positive, Relay to Starter

1шт.

17

47515928

CABLE

Negative, Grid Heater to Block

1шт.

18

47655335

CABLE

Positive, Relay to Grid Heater

1шт.

19

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

20

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

1шт.

21

47853521

CABLE TIE

Dual Dividing

1шт.

22

47883714

POS BATTERY CABLE

Battery to Battery

1шт.

23

BMF31GSW

WET BATTERY

USA, 1000 Cold Cranking Amps

2шт.

23

CCMF31GSW

WET BATTERY

Canada, 1000 Cold Cranking Amps

2шт.

24

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

25

47883716

NEG BATTERY CABLE

Battery to Battery

1шт.

26

84363187

NEG BATTERY CABLE

Battery to Shut Off

1шт.

27

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

28

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

2шт.

29

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

2шт.

30

84363188

NEG BATTERY CABLE

Shut Off to Junction Block

1шт.

31

84538110

NEG BATTERY CABLE

Shut Off to Starter

1шт.

32

47367749

POS BATTERY CABLE

Battery to Fuses

1шт.

33

47446365

FASTENER

Edge Clip

1шт.

34

20-1451T1

BLOCK

Junction

1шт.
